Overview

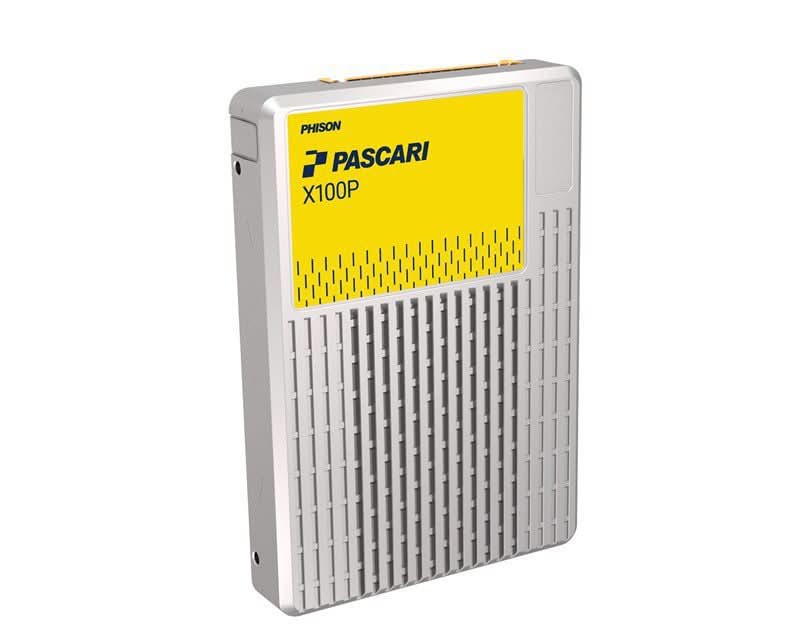

 PHISON XP106H0115T3P0116T300 Pascari X100P 15.36 TB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD

Specifications

Model Number:XP106H0115T3P0116T300

Brand:   PHISON

Alt Part Number(s):XP106H0115T3P0116T300

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP106H0115T3P0116T300

Capacities: 15.36 TB

Form Factor: U.2

Interface: Single Port

Security: Non-Opal

PCIe Interface
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)

Performance
Maximum Sequential Read / Write: 7000MB/s / 6800MB/s
Maximum Random Read / Write: 1600KIOPS / 180KIOPS
Sustained Random Read / Write Latency (µs): 100/15 (QD=1, Workers=1); 110/300 (QD=32, Workers=1); 450/3800 (QD=64, Workers=8)
IOPS Consistency: 95%
QoS (Quality of Service, 99%) Read / Write: 100/12 (QD=1, Workers=1); 120/200 (QD=32, Workers=1); 600/3000 (QD=64, Workers=8)

DWPD: 1DWPD

TBW: 28032 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range
Operation: 0°C - 70°C with specified airflow
Storage: -40°C - 85°C

RoHS compliant

Enterprise Features Support List

Namespace: Supported

Single Port: Supported

Reservation: Supported

Metadata Protection Thermal throttling: Supported

Power Loss Protection: Supported

Hardware AES-XTS 256-bit Encryption: Supported

Support SMBus: Yes

Support NVMe-MI (Management Interface): Yes

Data Retention: 3 months

Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1

*
