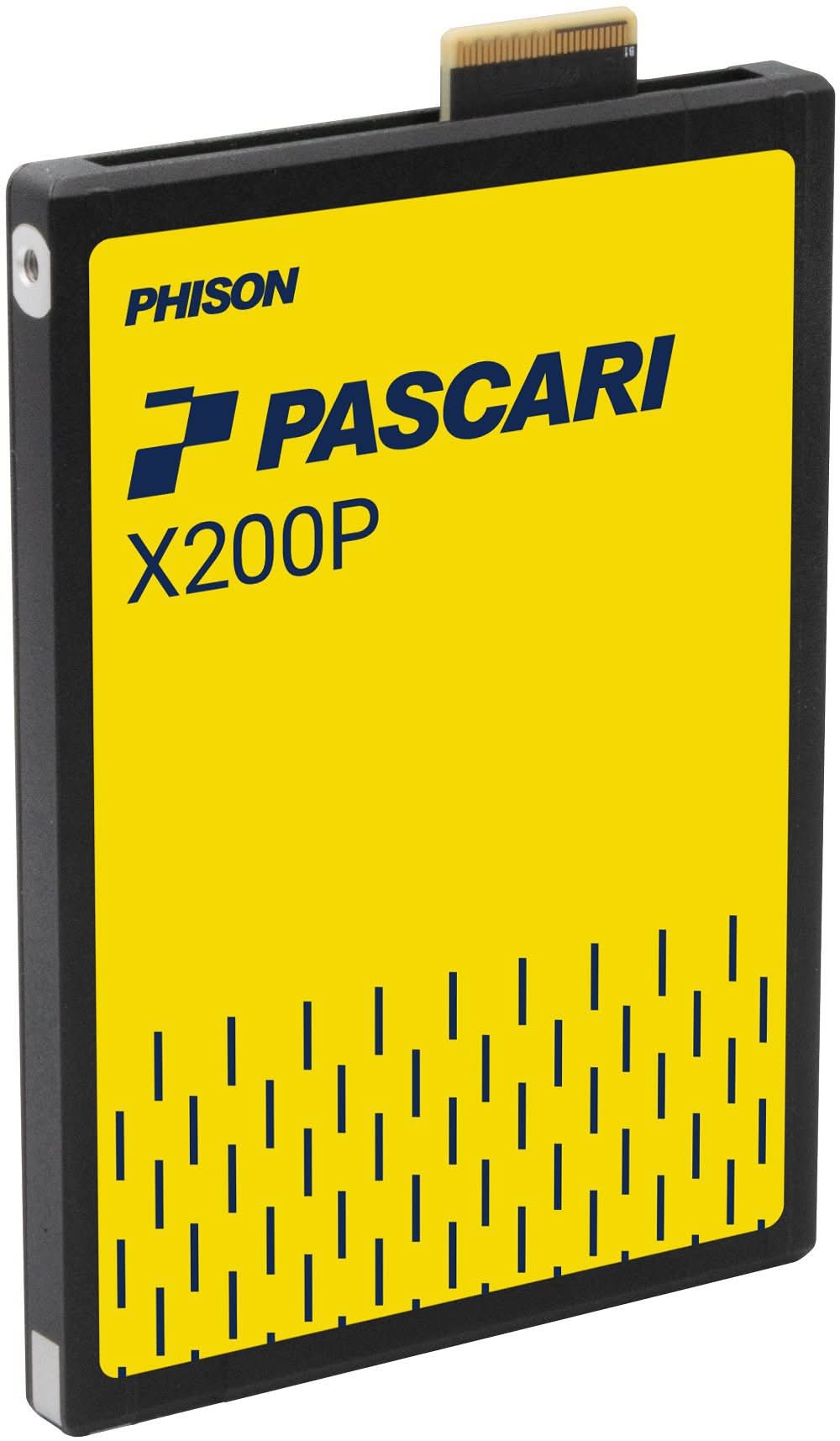

 PHISON XP208H033T84P224T0910 Pascari X200P 3840 GB U.2 15mm Single Port PCIe Gen5x4 Opal Security SSD

Specifications

Model Number:XP208H033T84P224T0910

Brand:   PHISON

Alt Part Number(s):XP208H033T84P224T0910

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP208H033T84P224T0910

Capacities: 3840 GB

Form Factor: U.2 15mm

Security: Opal

PCIe Interface: PCIe Gen5x4

Single Port: x4 lanes

PCIe AER: Advanced Error Reporting

Max Seq. 128KB Read/Write: 14,000 / 8,500 MB/s (QD=32, Workers=1)

Max 4K Random Read/Write: 3,000,000 / 360,000 IOPS (QD=64, Workers=8)

Latency 4K R/W (µs):
  60 / 10 (QD=1, Workers=1)
  85 / 160 (QD=4, Workers=8)
  190 / 2000 (QD=64, Workers=8)

IOPS Consistency (4KB R/W): 95% / 95%

QoS (99%) 4KB R/W Latency (µs):
  80 / 12 (QD=1, Workers=1)
  130 / 160 (QD=4, Workers=8)
  500 / 2000 (QD=64, Workers=8)

Active Power: 25 W

Idle Power: <9 W

Inrush Current: 2.5 A

DWPD: 1

TBW: 7008 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

ECC: Yes

Wear Leveling: Static & Dynamic

Bad Block Management: Yes

Deallocate (TRIM): Supported

SMART: Supported

Over-Provisioning: Yes

Firmware Upgrade: Yes

Temperature (Operating): 0°C to 70°C (with specified airflow)

Temperature (Storage): -40°C to 85°C

RoHS Compliant: Yes

Namespace Support: Yes

Reservation: Yes

Metadata Protection: Yes

Thermal Throttling: Yes

Power Loss Protection: Yes

AES-XTS 256-bit Encryption: Yes

SMBus Support: Yes

NVMe-MI Support: Yes

Data Retention: 3 months

Compliance:
  PCIe Base 5.0
  NVMe 2.0
  NVMe-MI 1.2
  SFF-8639 Rev 4.0, Ver 1.0

Flash Configuration: 256GB x 16

Flash Type: 64CE, 512Gb QDP, 3D eTLC

Supply Voltage: 12V ±10%

12V Noise Level: 240 mVp-p (0–20 MHz)

12V Min Off Time: 500 ms

3.3V AUX: ±15%

Inrush Current: 12V 2.5 A

*
