Overview

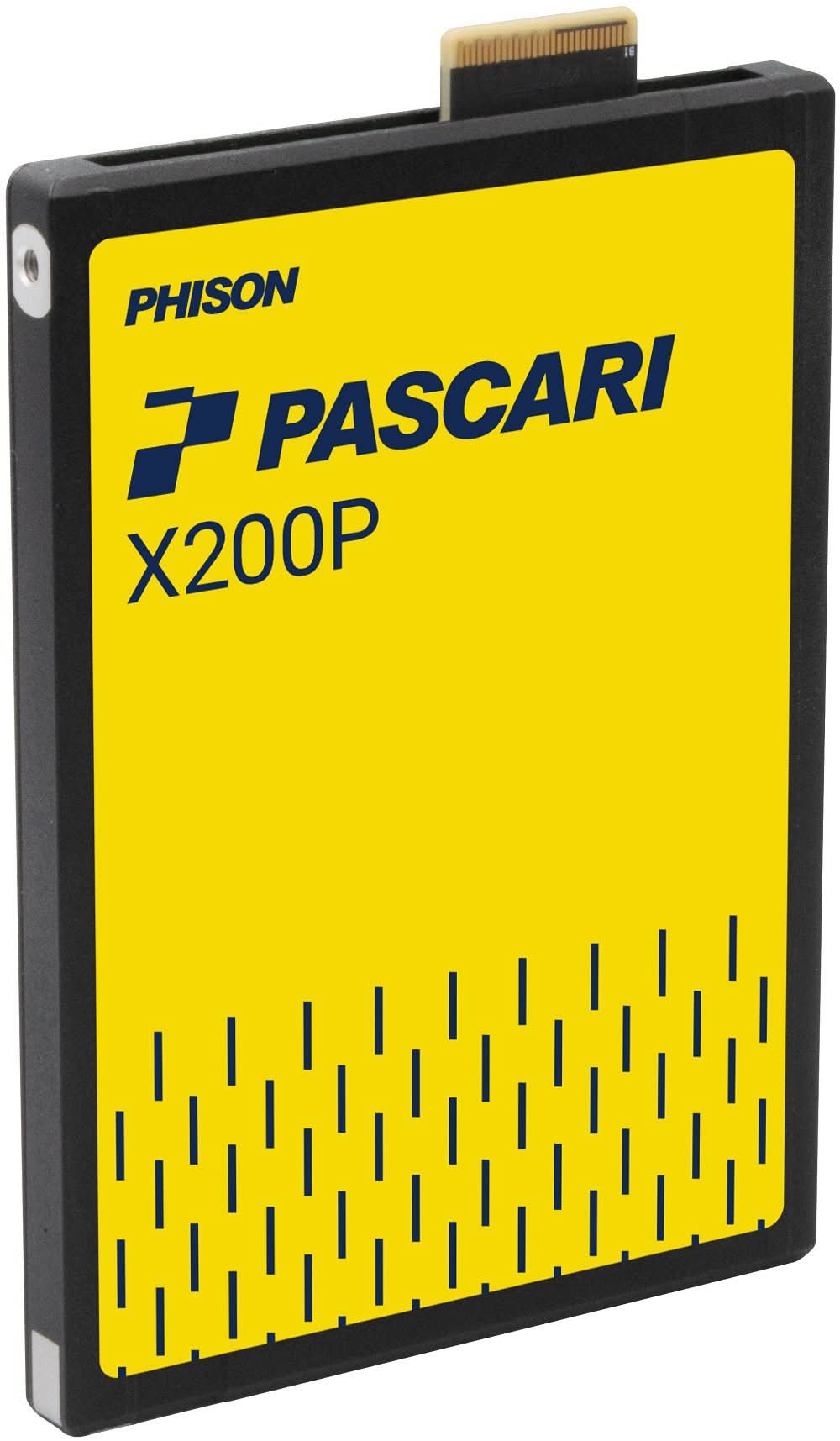

PHISON XP208H0330T7P2132T710 Pascari X200P 30720 GB U.2 15mm Single Port PCIe Gen5x4 Opal Security SSD

Specifications

Model Number:XP208H0330T7P2132T710

Brand:   PHISON

Alt Part Number(s):XP208H0330T7P2132T710

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP208H0330T7P2132T710

Capacities: 30720 GB

Form Factor: U.2 15mm

Security: Opal

PCIe Interface: PCIe Gen5x4

Single Port: x4 lanes

PCIe AER: Advanced Error Reporting

Active Power: 25 W

Inrush Current: 2.5A

Idle Power: <9W

DWPD: 1DWPD

TBW: 56064 TB

LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes

MTBF: 2.5 million hours

UBER (Uncorrectable Bit Error Rates): 3D NAND < 1 sector per 10^18 bits read

Advanced Flash Management: ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade

Temperature (Operating): 0°C to 70°C (with specified airflow)

Temperature (Storage): -40°C to 85°C

RoHS compliant

Enterprise Features: Namespace, Single Port, Reservation, Metadata Protection, Thermal throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance: PCIe Express Base 5.0, NVMe Express 2.0, NVMe Express Management Interface Rev 1.2, PCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0

Flash Type: 128CE, 512Gb HDP, 3D eTLC

Supply Voltage:
12v: +/- 10%
12v noise level: 240mVp-p, 0-20MHz
12v min off time: 500ms
3.3v aux: +/- 15%

Inrush current: 12v 2.5A

*
