Overview

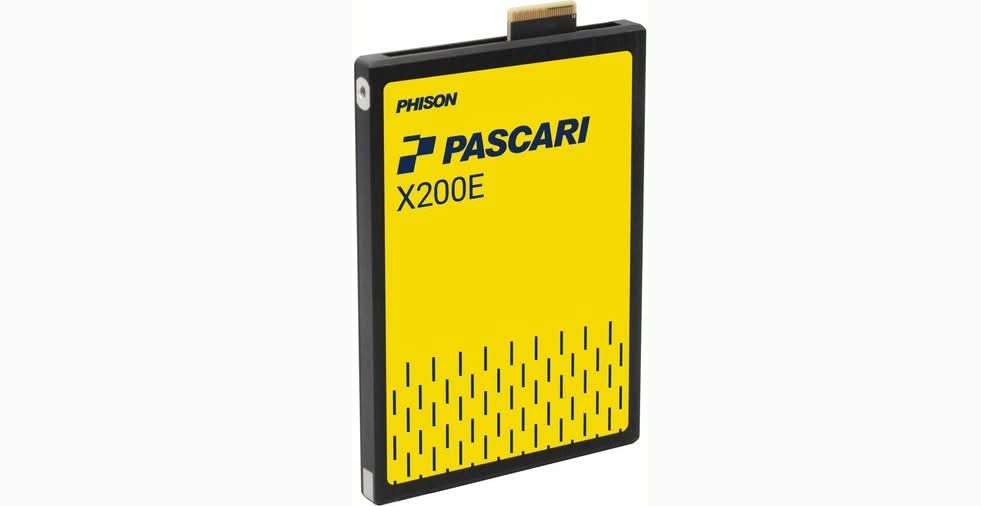

PHISON XP20DH0312T8E2116T310 Pascari X200E 12800 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD

Specifications

Model Number:XP20DH0312T8E2116T310

Brand:   PHISON

Alt Part Number(s):XP20DH0312T8E2116T310

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP20DH0312T8E2116T310

Capacities: 12800 GB

Form Factor: E3.S

Interface: Single Port

Security: Opal

PCIe Interface: PCIe Gen5x4

Single Port: x4 lanes

PCIe AER: Advanced Error Reporting

DWPD: 3

TBW: 70080 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read (3D NAND)

ECC: Yes

Wear Leveling: Static & Dynamic

Bad Block Management: Yes

Deallocate (TRIM): Supported

SMART: Supported

Over-Provisioning: Yes

Firmware Upgrade: Yes

Temperature (Operating): 0°C to 70°C (with specified airflow)

Temperature (Storage): -40°C to 85°C

RoHS Compliant: Yes

Namespace Support: Yes

Reservation: Yes

Metadata Protection: Yes

Thermal Throttling: Yes

Power Loss Protection: Yes

AES-XTS 256-bit Encryption: Yes

SMBus Support: Yes

NVMe-MI Support: Yes

Data Retention: 3 months

Compliance:
  PCIe Express Base 5.0
  NVMe Express 2.0
  NVMe-MI Rev 1.2
  SFF-8639 Rev 4.0, Ver 1.0

*
