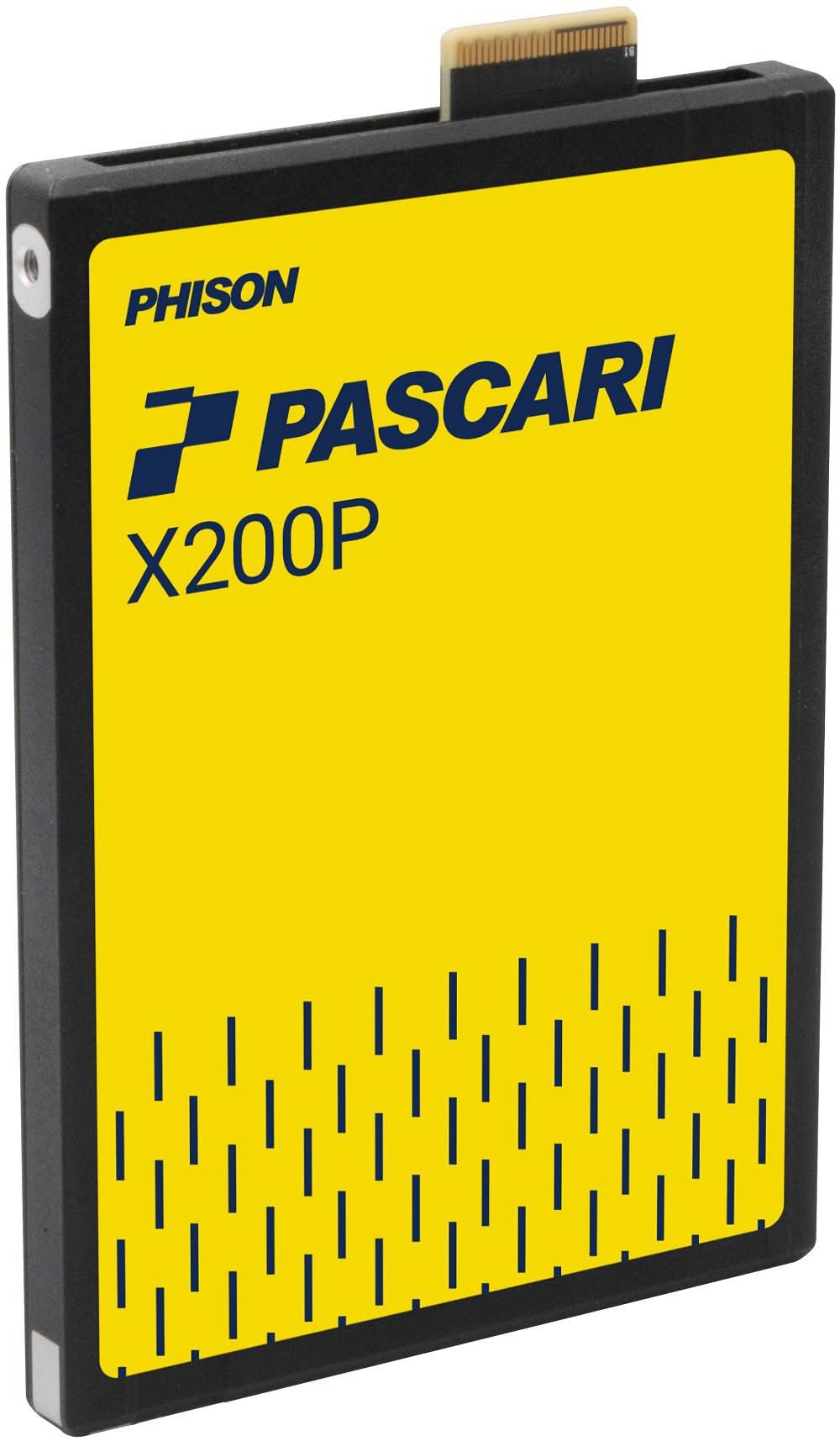

 PHISON XP20DH031T92P212T0410 Pascari X200P 1920 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD

Specifications

Model Number:XP20DH031T92P212T0410

Brand:   PHISON

Alt Part Number(s):XP20DH031T92P212T0410

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP20DH031T92P212T0410

Capacities: 1920 GB

Form Factor: E3.S

Security: Opal

PCIe Interface: PCIe Gen5x4

Single Port: x4 lanes

PCIe AER: Advanced Error Reporting

Maximum Sequential 128KB Read/Write (QD=32, Workers=1): 14,000/4200 MB/s

Maximum 4K Sustained Random Read/Write (QD=64, Workers=8): 2,100,000/160,000 IOPS

Latency 4K Sustained Random Read/Write (µs):
60/10 (QD=1, Workers=1)
85/250 (QD=4, Workers=8)
260/4000 (QD=64, Workers=8

IOPS Consistency 4KB Sustained Random Read/Write: 95%/95%

4KB Sustained Random Read/Write Quality of Service (QoS=99%) (4KB):
80/12 (QD=1, Workers=1)
140/250 (QD=4, Workers=8)
900/4000 (QD=64, Workers=8)

Power Consumption (Active Power): 25 W

Inrush Current: 2.5 A

Idle Power: <9 W

DWPD: 1 DWPD

TBW: 3504 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2.5 million hours

UBER (Uncorrectable Bit Error Rates): 3D NAND < 1 sector per 10^18 bits read

Advanced Flash Management: ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade

Temperature (Operating): 0°C to 70°C (with specified airflow)

Temperature (Non-Operating): -40°C to 85°C

RoHS compliant

Enterprise Features Support List: Namespace, Single Port, Reservation, Metadata Protection, Thermal throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance:
PCIe Express Base 5.0
NVMe Express 2.0
NVMe Express Management Interface Rev 1.2
PCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0

Flash Configuration: 256GB x 8

Flash Type: 32CE, 512Gb, QDP, 3D eTLC

Supply Voltage:
12v: +/- 10%
12v noise level: 240mVp-p, 0-20MHz
12v min off time: 500ms
3.3v aux: +/- 15%
Inrush current: 12v 2.5A

*
