Overview

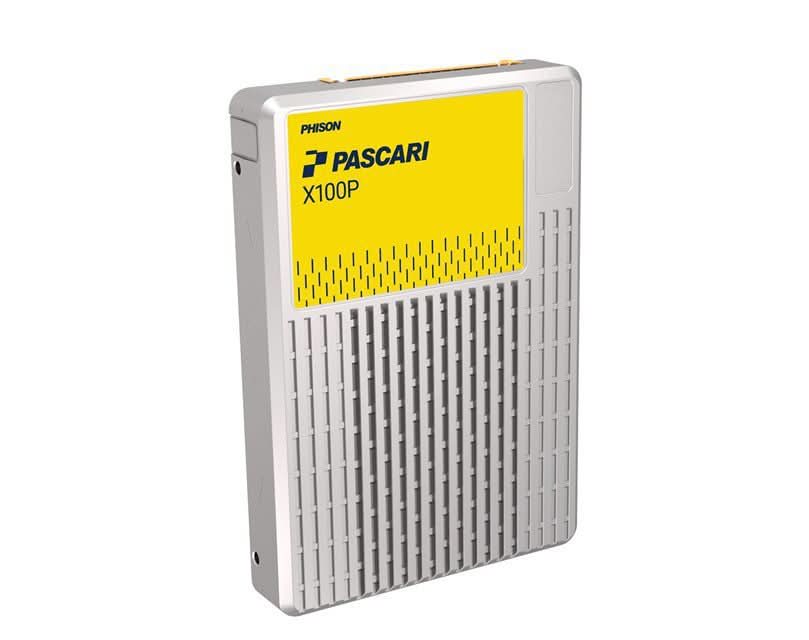

 PHISON XP106H0030T7P2132T700 Pascari X100P 30.72TB U.2 Single Port PCIe Gen4x4 Opal SSD

Specifications

Model Number:XP106H0030T7P2132T700

Brand:   PHISON

Alt Part Number(s):XP106H0030T7P2132T700

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP106H0030T7P2132T700

Capacity: 30.72TB

Security: Opal

Form Factor: U.2

PCIe Interface: PCIe Gen4x4
Single Port: x4 lanes
PCIe AER: Advanced Error Reporting

128KB Sequential Read/Write (QD=32, Workers=1) (MB/s): 7,000 / 6,000

4K Sustained Random Read/Write (QD=64, Workers=8) (IOPS): 1,600K / 180K

4K Sustained Random Read/Write Latency (µs): 90 / 15 (QD=1, Workers=1); 100 / 200 (QD=32, Workers=1); 320 / 3150 (QD=64, Workers=8)

IOPS Consistency: 95%

4KB Sustained Random Read/Write QoS (99%) (µs): 100 / 12 (QD=1, Workers=1); 120 / 200 (QD=32, Workers=1); 600 / 3200 (QD=64, Workers=8)

Power Consumption (W):
Random Read: 18.5
Random Write: 20.6
Sequential Read: 13.7
Sequential Write: 20.1
Idle: 8.16
Inrush Current: 1.5A

DWPD: 1

TBW: 56,064TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER: < 1 sector per 10^18 bits read

Advanced Flash Management:
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range:
Operating: 0°C - 70°C (with specified airflow)
Storage: -40°C - 85°C

Compliance: RoHS
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1

Enterprise Feature Support:
Namespace
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus
Support NVMe-MI
Data Retention: 3 months

*
