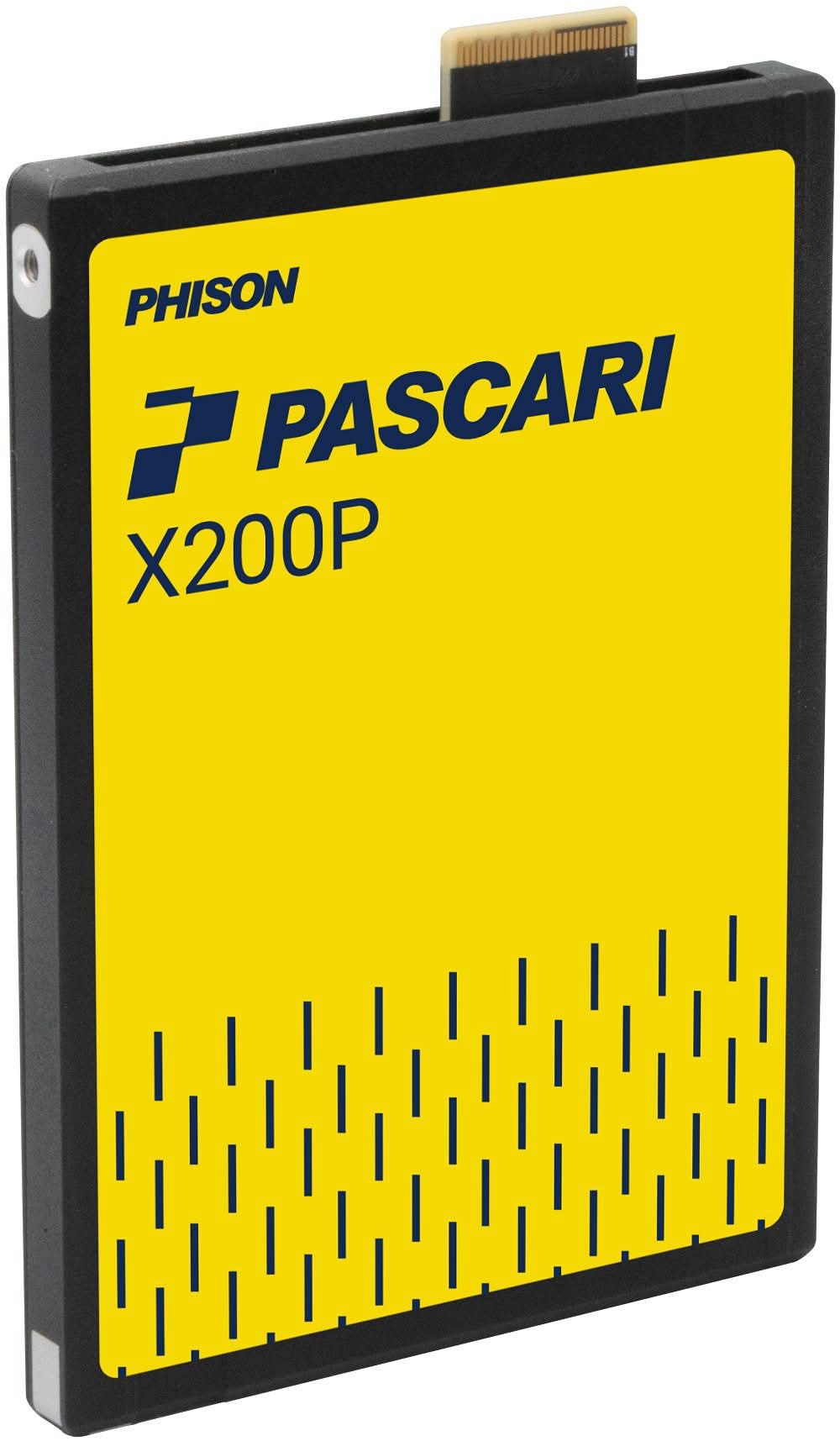

PHISON XP20DH0315T3P2116T310 Pascari X200P 15360 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD

Specifications

Model Number:

Brand:   PHISON

Alt Part Number(s):XP20DH0315T3P2116T310

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XP20DH0315T3P2116T310

Storage Capacity: 15.36 TB

Form Factor: E3.S

Security: Opal

Drive Interface: PCI Express NVMe

Drive Interface Standard: PCIe Gen5 x4 (Single Port)

Compliance:

• PCI Express Base Specification Rev. 5.0
• NVM Express Base Specification Rev. 2.0
• NVM Express Management Interface Rev. 1.2
• PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0

Flash Type: 3D eTLC

Flash Configuration: 512 GB x 32

Maximum Sequential Read: Not specified

Maximum Sequential Write: Not specified

Power Consumption (Active): 25 W

Power Consumption (Idle): < 9 W

Inrush Current: 2.5 A

Supply Voltage:

• 12V ±10% (240mVp-p, 0–20 MHz)
• 3.3V Aux ±15%
• 12V Min Off Time: 500 ms

Endurance (DWPD): 1

Endurance (TBW): 28,032 TB

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read (3D NAND)

LBA Formats: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

Advanced Flash Management:

• ECC
• Static and Dynamic Wear Leveling
• Bad Block Management
• Deallocate (TRIM) Command
• SMART
• Over-Provisioning
• Firmware Upgrade

Temperature (Operating): 0°C to 70°C (with specified airflow)

Temperature (Non-Operating): -40°C to 85°C

Data Retention: 3 months

Physical Dimensions: 112.75 mm (L) x 76 mm (W) x 7.45 mm (H)

Weight: < 250 g

Enterprise Feature Support:

• Namespace
• Single Port
• Reservation
• Metadata Protection
• Thermal Throttling
• Power Loss Protection
• Hardware AES-XTS 256-bit Encryption
• SMBus Support
• NVMe-MI (Management Interface)

RoHS Compliance: Yes

*
