Overview

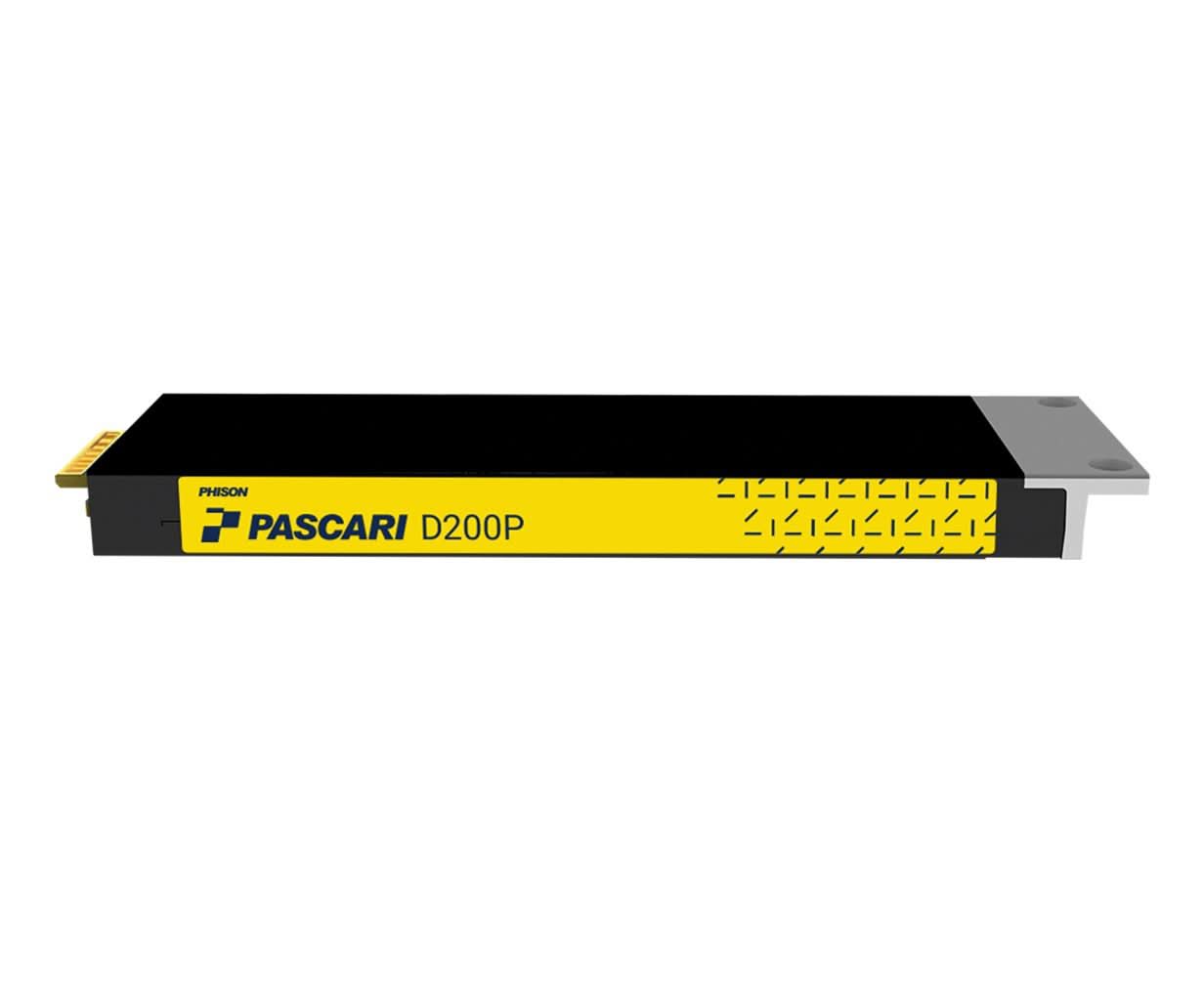

PHISON DP20AH033T84P314T0910 Pascari D200 3.84TB EDSFF E1.S PCIE 5.0 Single Port ISE SSD
Specifications
Model Number:DP20AH033T84P314T0910
Brand: PHISON
Alt Part Number(s):DP20AH033T84P314T0910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:DP20AH033T84P314T0910
Capacity: 3.84 TB
Form Factor: EDSFF E1.S
Interface: PCIe Gen5x4
NVMe: 2.0
Sequential Read (MB/s): 14,000
Sequential Write (MB/s): 8,400
4K Random Read (IOPS): 3,300K
4K Random Write (IOPS): 220K
128K Active Read Power (W): 16
128K Write Power (W): 19
4KB Active Read Power (W): 17
4KB Active Write Power (W): 18
4KB 70/30 Read/Write Power (W): 17
Idle Power (W): 4.9
DWPD: 1
TBW: 7,008 TB
UBER: < 1 sector per 10¹⁸ bits read
MTBF (million hours): 2.5
Operating Temp (°C): 0 – 70
Non-Operating Temp (°C): -40 – 85
Shock (Operating): 1000G, 0.5 ms
Shock (Non-operating): 1500G, 0.5 ms
Vibration (Operating): 1.52 mm / 20G (20–2000 Hz)
Vibration (Non-operating): 3.08 Grms (7–800 Hz)
Drop: 80 cm
Bending: ≤ 50 N
Features: 128 Namespaces, Single Port, Reservation, Metadata Protection, Thermal Throttling, Power Loss Protection, SMBus, End-to-End Data Path Protection, TCG Opal 2.0, AES-XTS 256-bit Encryption, Sanitize
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Environmental Compliance: RoHS, REACH
*
