Description

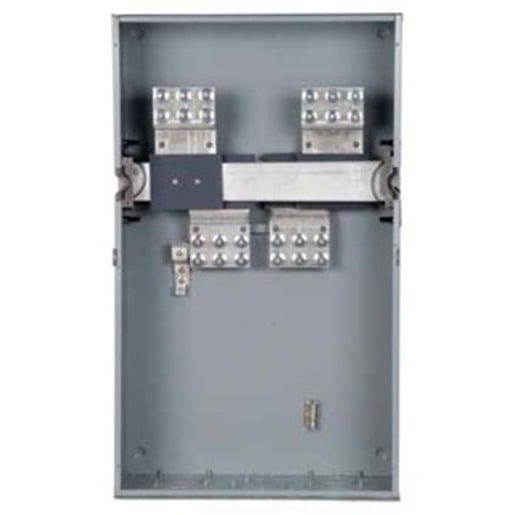

The Siemens WTB1800CU provides a robust and flexible tap box solution within the PowerMod Modular Metering System. Designed for 1-phase installations with overhead or underground feed, this tap box module supports a maximum current rating of 800A and is engineered for safe, high-capacity power distribution in residential and commercial metering applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Siemens |
|
Category
|
|
|
Part Number
|
WTB1800CU
|
| Subcatecory |
|
| Series |
PowerMod Modular Metering System |
| Function |
Tap Box Module |
| Tap Box Rating |
800A max. |
| Thru-Bus Rating |
1200A max. |
| Voltage Rating |
|
| Phase Configuration |
Single-phase |
| Feed Type |
Overhead or Underground |
| Interrupting Capacity (AIC) |
100,000 AIC |
| Net Weight (kg) |
68.850 lb |
| Packaging Dimension |
13.091 x 12.22 x 40.13 |
| Package size unit of measure |
Inch |
Information About WTB1800CU
The WTB1800CU is a tap box module for Siemens PowerMod systems, rated at 800 amps with a thru-bus capacity of up to 1200 amps. Supporting 1-phase, 240V AC max. configurations, the unit features a high fault current rating of 100,000 AIC. It is compatible with both overhead and underground feeds, making it a versatile option for a wide range of service entrance applications.
Key Features:
-
High Current Capacity: Supports up to 800A max. for the tap box, with a 1200A max. thru-bus rating for system expansion.
-
1-Phase, 240V Operation: Engineered for standard residential and light commercial power configurations.
-
Overhead/Underground Feed: Flexible installation options allow for either overhead or underground service entry.
-
High Fault Current Rating: Rated at 100,000 AIC, ensuring durability and safety under high short-circuit conditions.
-
Modular PowerMod Design: Integrates seamlessly with Siemens PowerMod metering systems for clean, scalable installation.
The WTB1800CU ensures reliable and scalable tap connections within modular metering assemblies, enhancing power distribution flexibility.
