Description

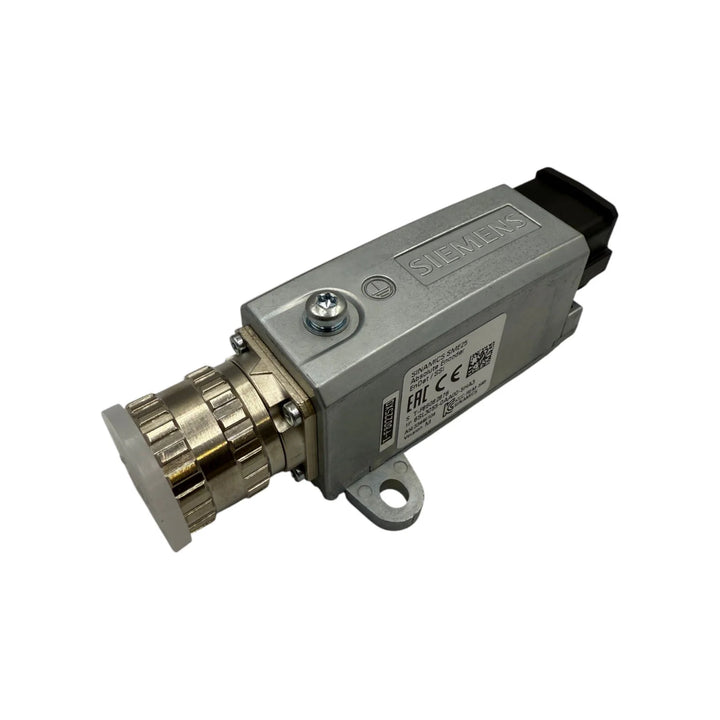

The Siemens 6SL3055-0AA00-5EA3 is a SINAMICS SME20 sensor module designed for incremental encoders with a 1 Vpp sin/cos interface. It supports encoder frequencies up to 500 kHz and delivers high-resolution interpolation up to 16,384 times with 14-bit accuracy.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Sensor Modules |
| Part Number |
6SL3055-0AA00-5EA3 |
| Subcategory |
Incremental Encoder Sensor Module |
| Series |
SINAMICS |
| Model |
SME20 |
| Encoder Supported |
Incremental encoder with 1 Vpp sin/cos interface |
| Maximum Encoder Frequency |
500 kHz |
| Signal Interpolation |
Up to 16,384 times, 14-bit resolution |
| Input Voltage |
24 V DC |
| Current Consumption |
0.11 A (encoder not included) |
| Sensor Voltage Supply |
5 V DC, max. 0.35 A |
| Output Interface |
DRIVE-CLiQ connection |
| Protection Rating |
IP67 |
| Measuring Cable Length |
Max. 3 m (9.84 ft) |
| Drive Control Cable Length |
Max. 100 m (328.08 ft) |
| Physical Dimensions |
58 mm x 44 mm x 112 mm (W x H x D) |
| Application |
Precision motion control, industrial automation |
| Weight |
0.31 kg (0.68 lbs) |
Information About 6SL3055-0AA00-5EA3
The 6SL3055-0AA00-5EA3 is a Siemens SINAMICS SME20 sensor module built to connect incremental encoders in demanding automation environments. It accepts a 1 Vpp sin/cos encoder input and operates at frequencies up to 500 kHz, enabling rapid and precise signal processing. With interpolation capability of up to 16,384 times at 14-bit resolution, it ensures high accuracy in motion control and positioning tasks. Its IP67-rated enclosure, DRIVE-CLiQ connectivity, and compact design make it suitable for use in harsh industrial environments.
Key Features:
- Encoder Support: Works with incremental encoders using 1 Vpp sin/cos interface.
- High Frequency Handling: Supports encoder signals up to 500 kHz for fast data processing.
- Precision Interpolation: Offers up to 16,384-fold signal interpolation with 14-bit resolution.
- Voltage Supply: Requires 24 V DC input, providing 5 V DC sensor supply at 0.35 A.
- Low Power Use: Consumes only 0.11 A without encoder connected.
- Industrial Protection: Rated IP67 for reliable operation in harsh environments.
- Connectivity: Provides DRIVE-CLiQ output interface for system integration.
- Flexible Cabling: Supports measuring cable lengths up to 3 m and drive control cables up to 100 m.
- Compact Size: Measures 58 x 44 x 112 mm, making it easy to mount in control setups.
- Lightweight: At 0.31 kg (0.68 lbs), it is simple to handle and install.
The 6SL3055-0AA00-5EA3 delivers the reliability and precision required for high-performance motion control and encoder feedback in SINAMICS drive systems.
