Description

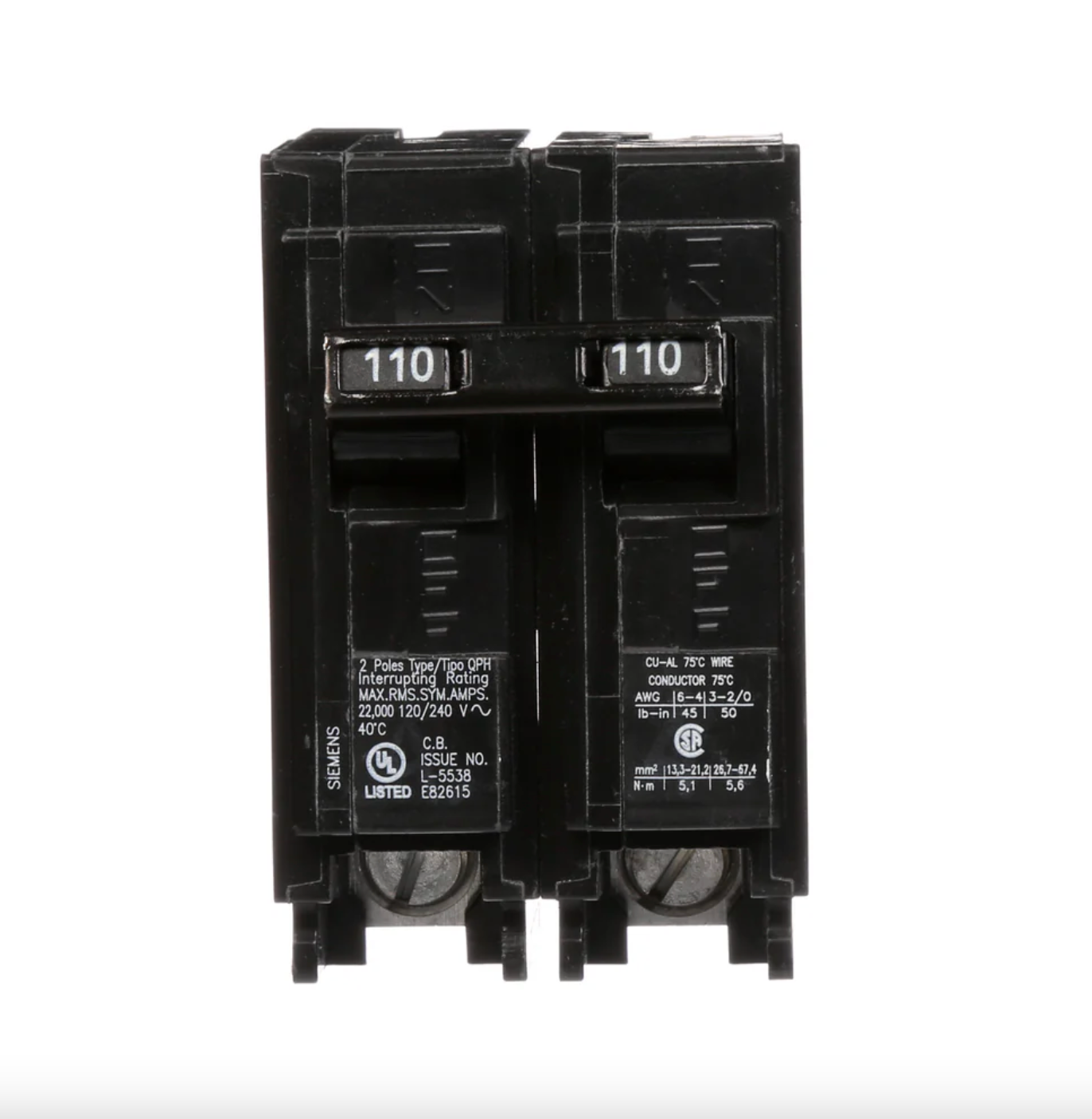

The Siemens Q2110H is a 2-pole molded case circuit breaker designed for dependable protection in residential, commercial, and light industrial applications. Rated at 110 amps with a 240V AC operating voltage, it provides both thermal and magnetic trip protection for overload and short-circuit conditions. With its 22kA interrupting capacity, the Q2110H ensures safe and efficient power distribution in demanding environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Power Distribution |
| Part Number |
Q2110H |
| Subcategory |
Molded Case Circuit Breaker |
| Series |
Q Series |
| Type |
QPH |
| Amperage Rating |
110A |
| Voltage Rating |
120/240VAC |
| Interrupting Rating |
22kAIC @ 240V |
| Poles |
2 |
| Phase |
1 |
| Trip Unit |
Thermal Magnetic (Long-Time and Instantaneous) |
| Connection Type |
Plug-In |
| Mounting Type |
Fixed |
| Frame Type |
Q |
| Standards |
UL, CSA, NOM |
| Country of Origin |
Mexico |
| Dimensions (H x W x D) |
2.756 x 2.756 x 1.969 in |
| Weight |
0.68 lbs |
Information About Q2110H
The Q2110H is part of Siemens’ trusted Q Series of molded case circuit breakers, known for compact design, durable construction, and easy installation. This model features a plug-in connection type for quick setup and replacement within compatible load centers and panelboards. Its thermal magnetic trip unit offers long-time and instantaneous protection, maintaining safety across varying current conditions. Built to meet UL, CSA, and NOM standards, the Q2110H provides reliable circuit control in single-phase systems operating at 120/240VAC.
Key Features:
- Rated Current: 110A continuous current capacity for medium-load circuits.
- Voltage Rating: 120/240VAC for residential and light commercial systems.
- Interrupting Capacity: 22kAIC at 240V ensures high fault-clearing performance.
- Trip Mechanism: Thermal magnetic trip for long-time and instantaneous protection.
- Pole Configuration: 2-pole design suitable for single-phase applications.
- Connection Type: Plug-in mounting for easy installation and replacement.
- Compliance Standards: Certified under UL, CSA, and NOM regulations.
- Construction: Compact, durable molded case for long-term performance.
The Q2110H delivers the reliability and precision required for safe electrical system protection and efficient circuit management.
