Overview

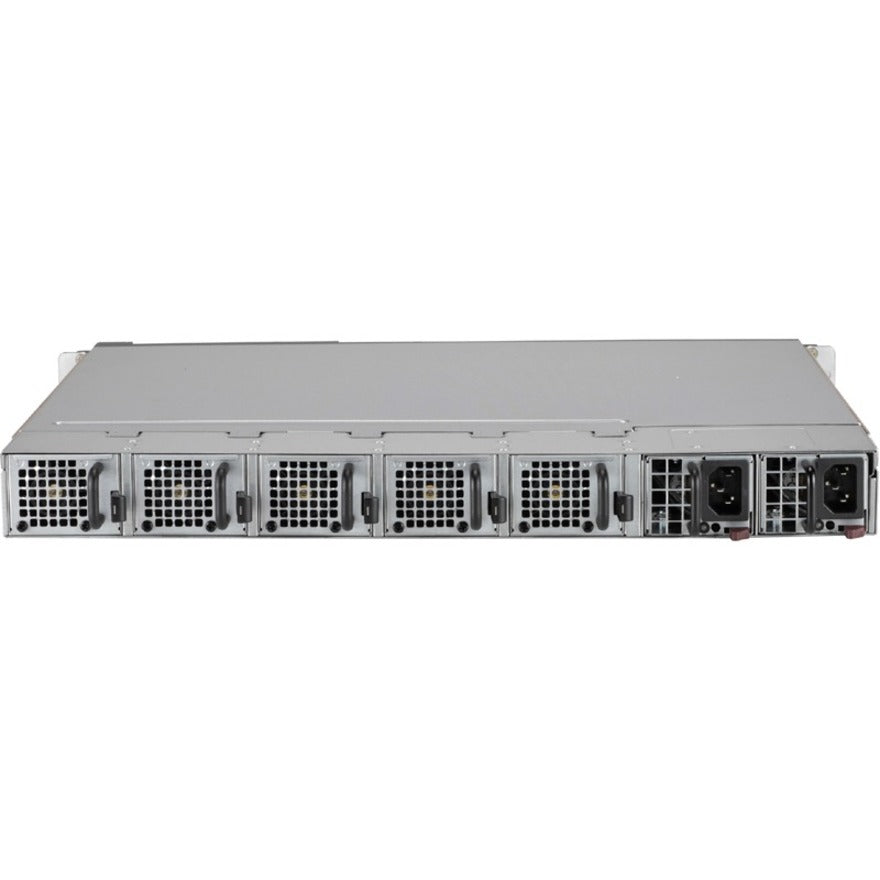

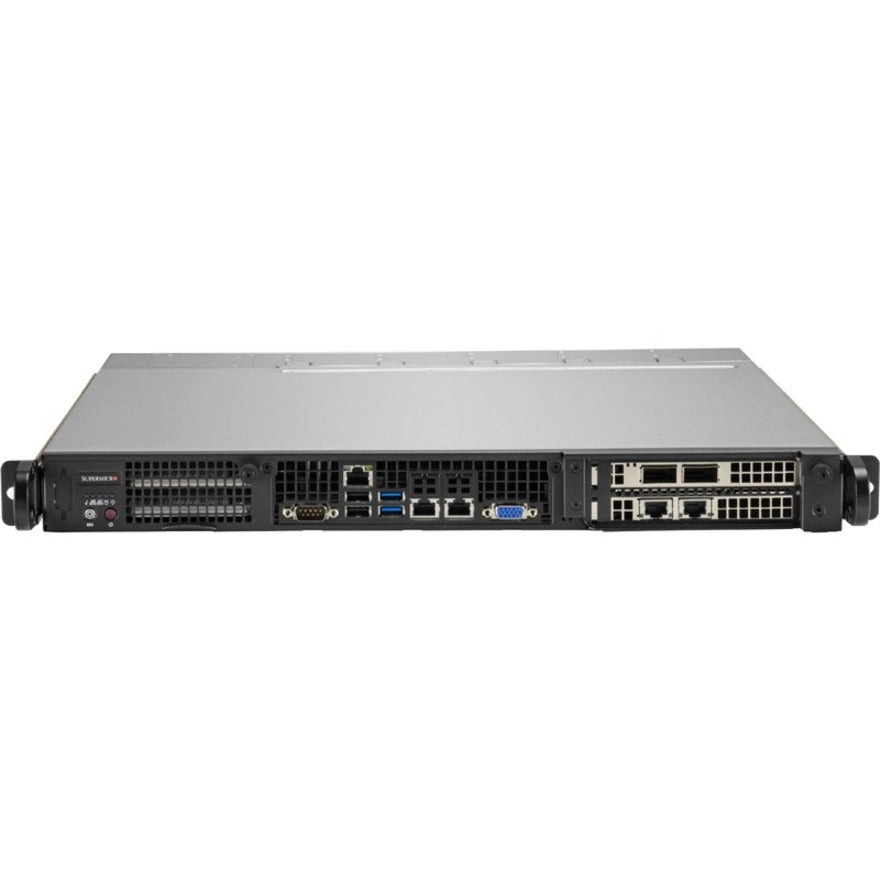

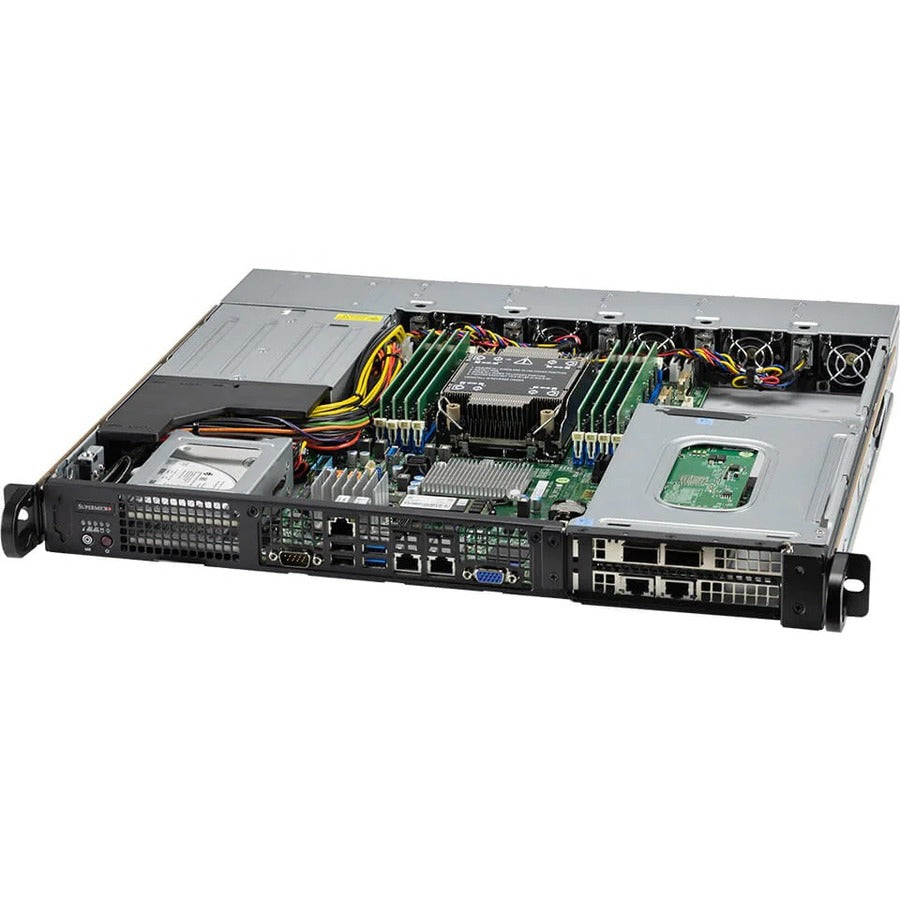

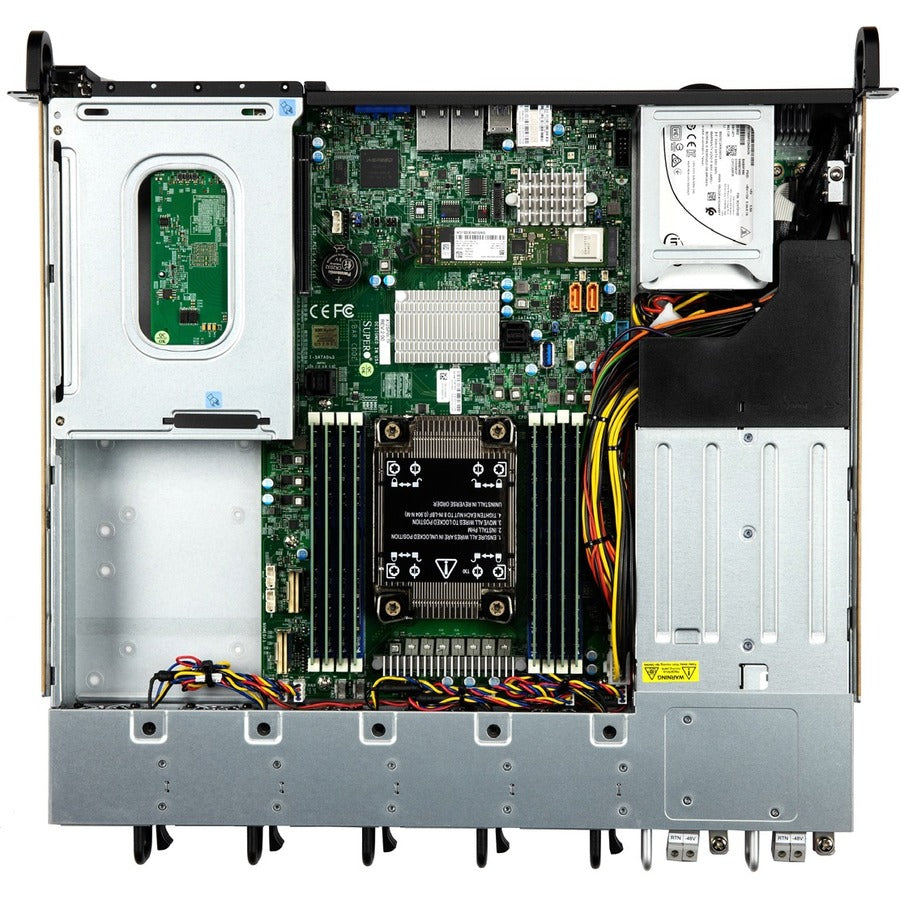

Supermicro SuperServer SYS-110P-FRN2T from the 1U series supports a single Intel Xeon Bronze Silver Gold or Platinum processor with up to 2 TB DDR4-3200 memory across 8 slots. It features dual 800W power supplies 10 Gigabit Ethernet connectivity and 2 PCIe x16 slots for expansion.



Specifications

Model Number:SYS-110P-FRN2T

Brand:   Supermicro

Alt Part Number(s):SYS-110P-FRN2T

Product Type: Server



Technical Description

Brand:  Supermicro

Model:SYS-110P-FRN2T

Number of Processors Supported: 1

Processor Socket: Socket LGA-4189

Processor Supported: Xeon Bronze; Xeon Silver; Xeon Gold; Xeon Platinum

Chipset Manufacturer: Intel

Chipset Model: C621A

Maximum Memory Supported: 2 TB

Memory Technology: DDR4 SDRAM

Memory Standard: DDR4-3200/PC4-25600

Total Number of Memory Slots: 8

Intel Optane Memory Ready: Yes

Supported Storage Drive Interfaces: Serial ATA III

Controller Type: Serial ATA/600

RAID Supported: Yes

Ethernet Technology: 10 Gigabit Ethernet

Number of Total Expansion Bays: 2

Total Number of Expansion Slots: 2

Number of PCI Express x16 Slots: 2

Total Number of USB Ports: 4

Number of USB 3.0 Ports: 2

Number of VGA Ports: 1

Input Voltage: 120 V AC; 230 V AC

Number of Power Supplies Installed: 2

Maximum Power Supply Wattage: 800 W

Color Family: Black

Product Color: Black

Form Factor: 1U Rackmount

Height: 1.7"

Width: 17.2"

Depth: 15.7"



*
