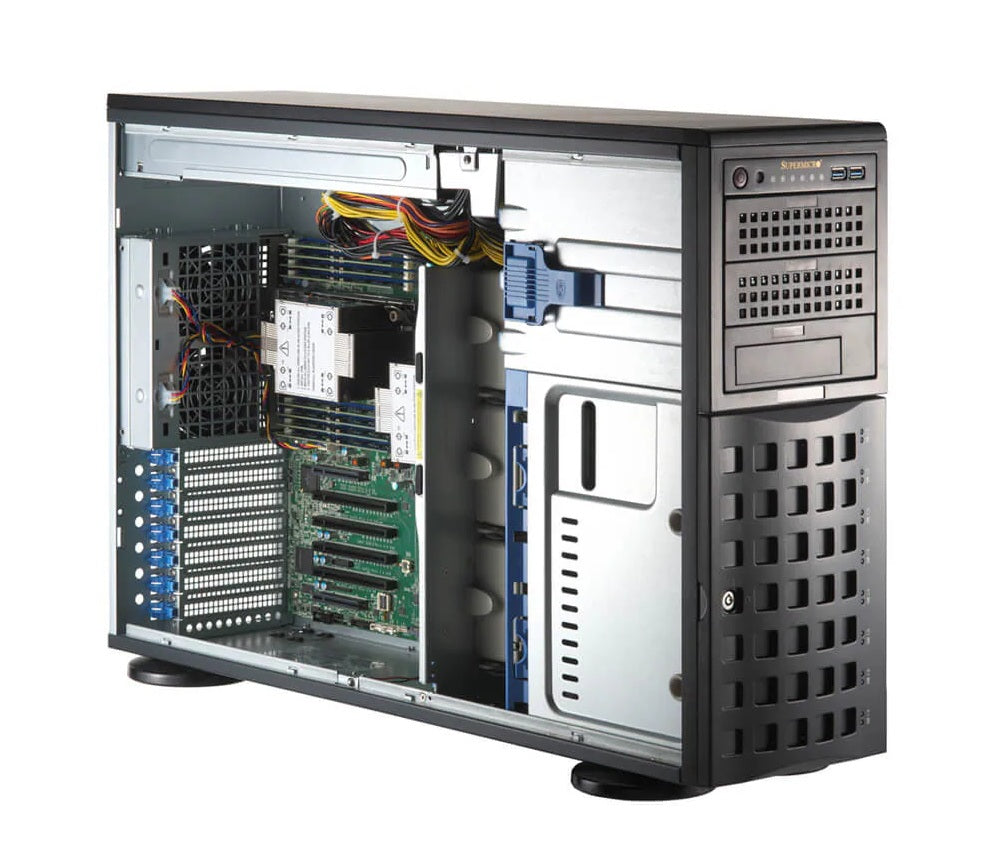

The Supermicro Mainstream SuperServer SYS-741P-TRT is a highly versatile, 4U/Tower dual-socket enterprise barebone server built on the Supermicro X13DEI motherboard platform. It is engineered for mid-to-large-scale enterprise applications, virtualization environments, database management, and light-duty AI workstation workloads
Specifications
Model Number: SYS-741P-TRT
Brand: Supermicro
Alt Part Number(s): SYS-741P-TRT
Product Type: Barebone Server
Technical Description
Brand: Supermicro
Model Number: SYS-741P-TRT
Series: X13 Mainstream SuperServer
Processor Type: 5th Gen/4th Gen Intel Xeon Scalable processors
Processor Core: Up to 120 Core/240 Thread
Processor Power: Supports up to 300W TDP CPUs
Processor Socket: Dual Socket E (LGA-4677)
Motherboard: Super X13DEI-T
Chassis: CSE-745BTS-R1K23BP
Supported GPU: 2 Double‑width or 2 Single‑width Cards
Chipset Type: Intel C741
Graphics Controller: ASPEED AST2600 BMC
Networking Connectivity: 2 RJ45 10GbE, 1 RJ45 1GbE Dedicated BMC LAN port
RAID Levels: 0, 1, 5, 6, 10, 50, 60 (With RAID controller)
Number of Drive Bays: 8 x 3.5" bays, 2 x M.2 NVMe, 3 x 5.25" drive bays (Peripheral optional)
Expansion Slots: 2 PCIe 5.0 x8 FHFL slots, 4 PCIe 5.0 x16 FHFL slots, 2 M.2 PCIe 4.0 x2 NVMe slots
Memory Supported: Up to 4TB
Memory Technology: DDR5 ECC RDIMM
Memory Speed: 5600MT/s
Memory Slots: 16 DIMM slots
Power Supply: 2x 1200W Redundant (1 + 1) Titanium
Cooling System: Up to 3 middle Fan(s) Up to 2 rear Fan(s)
Form Factor: 4U Rackmount
Height: 17.8"
Width: 7"
Depth: 25.5"
