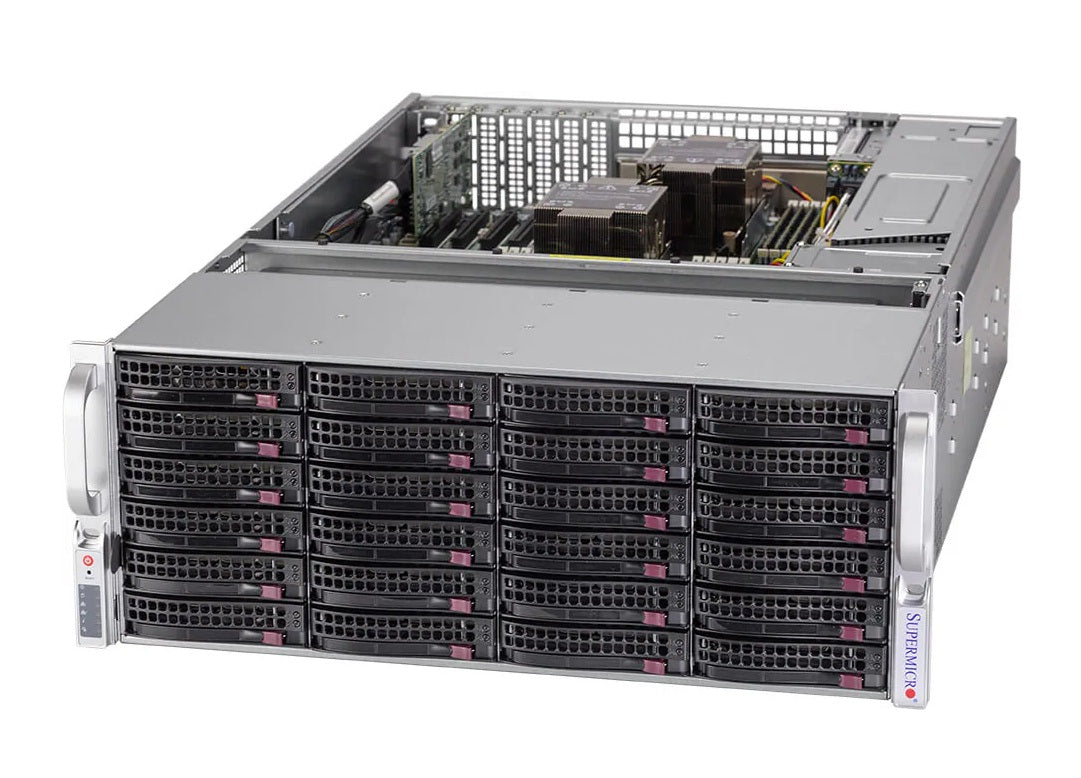

The SSG-640P-E1CR36L is a 4U rackmount storage server from Supermicro. It is part of their SuperStorage line, designed for high-capacity enterprise workloads like data lakes, backup targets, and HPC environments
Specifications
Model Number: SSG-640P-E1CR36L
Brand: Supermicro
Alt Part Number(s): SSG-640P-E1CR36L
Product Type: Storage Server
Technical Description
Brand: Supermicro
Model Number: SSG-640P-E1CR36L
Series: SuperStorage
Processor Type: 3rd Gen Intel Xeon Scalable
Processor Core: Up to 38Core/76 Thread
Processor Power: Supports 120W - 270W TDP CPUs
Processor Socket: AM4 PGA 1331
Processor Cache: Up to 57MB Cache per CPU
Motherboard: Super X12DPi-NT6
Chipset Type: Intel C621A
Graphics Controller: ASPEED AST2600 BMC
Networking Connectivity: 2 × 10GbE RJ45 ports, 1 × 1GbE RJ45 (dedicated management/IPMI)
RAID Levels: 0, 1, 5, 6, 10, 50, 60
Number of Drive Bays: 38 × 3.5"/2.5" hot-swap bays, 1 M.2 NVMe slot (M-key)
Expansion Slots: 3 PCIe 4.0 x16 LP slots, 1 PCIe 4.0 x8 LP slot
Memory Supported: Up to 4TB
Memory Technology: DDR4
Memory Speed: 3200MT/s
Memory Slots: 16 DIMM slots
Power Supply: 2x 1600W Redundant Titanium
System Cooling: Up to 7 Heavy Duty 8cm Fan(s)
Form Factor: 4U Rackmount
Height: 7"
Width: 17.2"
Depth: 27.5"
