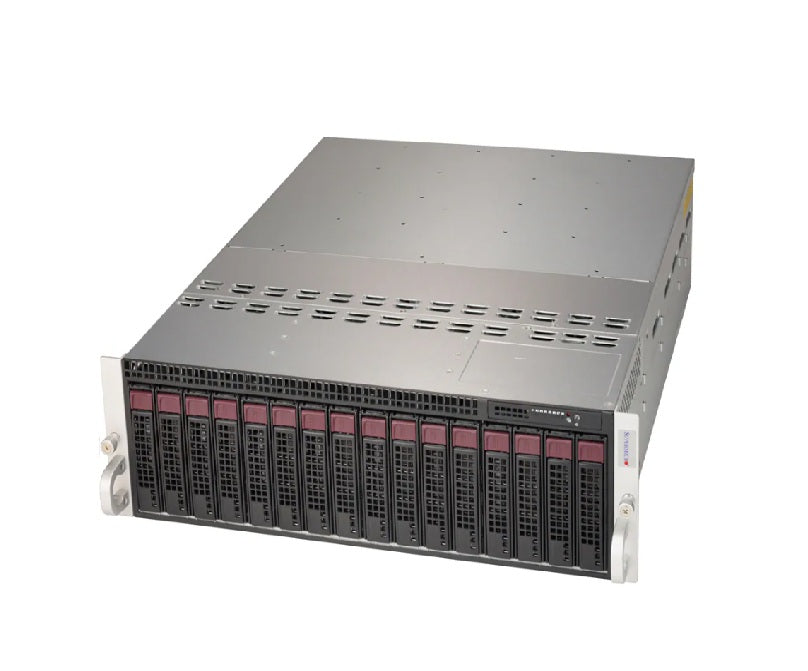

The Supermicro MicroCloud SYS-530MT-H8TNR is a high-density, 3U multi-node enterprise barebone server featuring 8 independent hot-pluggable computing nodes. It is optimized for web hosting, cloud computing clusters, virtual machines, and multi-tenant IT architectures
Specifications
Model Number: SYS-530MT-H8TNR
Brand: Supermicro
Alt Part Number(s): SYS-530MT-H8TNR
Product Type: Barebone Server
Technical Description
Brand: Supermicro
Model Number: SYS-530MT-H8TNR
Series: MicroCloud
Processor Type: Intel Xeon processor E-2300 series
Processor Core: Up to 64 Core,128 Thread
Processor Speed: ~2.6 GHz to 3.7 GHz
Processor Power: 80W - 95W TDP CPUs
Processor Socket: Single Socket H5 (LGA-1200)
Processor Cache: 16MB
Motherboard: Supermicro X13SEM-TF
Chassis Model: CSE-938HD-R2K04BP
Chipset: Intel C256
Graphics Controller: ASPEED AST2600 BMC
Networking Connectivity: 2 × 1GbE + 1 × IPMI (per Node), 16 × 1GbE + 8 × IPMI ports
RAID Levels: 0, 1, 5, 10 (Intel), 0, 1, 5, 6, 10 (Software)
Number of Drive Bays: 2 front hot-swap 3.5" NVMe/SAS/SATA drive bays
Expansion Slots: 8 PCIe expansion slots
Memory Supported: 1TB
Memory Technology: DDR4 ECC UDIMM
Memory Speed: Up to DDR4-3200 MT/s
Memory Slots: 4 DIMM Slots
Power Supply: 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
System Cooling: Up to 4 Heavy Duty 8cm Fan(s)
Form Factor: 3U Rackmount
Height: 1.69"
Width: 10.43"
Depth: 8.89"
