Overview

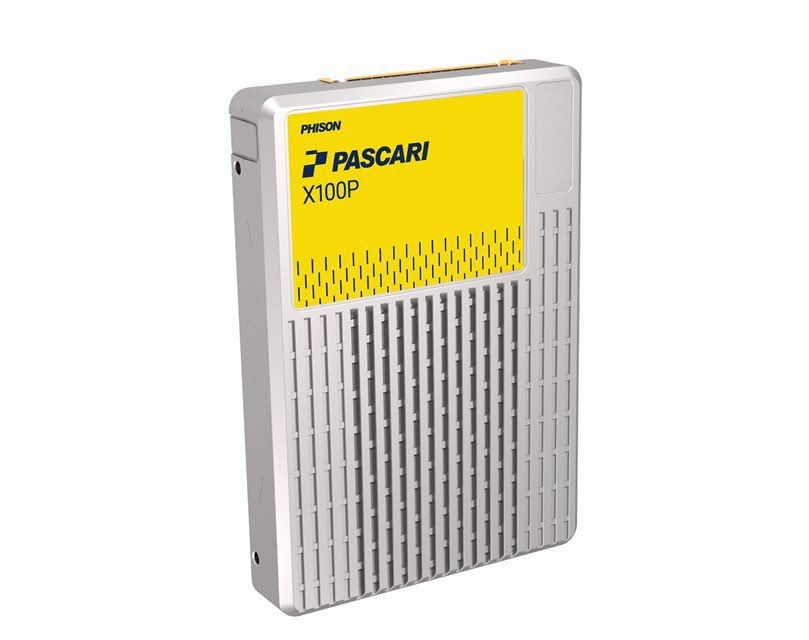

 PHISON XX106H003T84P024T0900 Pascari X100P 3.84 TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD

Specifications

Model Number:XX106H003T84P024T0900

Brand:   PHISON

Alt Part Number(s):XX106H003T84P024T0900

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX106H003T84P024T0900

Capacities: 3.84 TB

Form Factor: U.2

Security: Non-Opal

PCIe Interface

PCIe Gen4x4

Dual Port: x2 lanes

PCIe AER: Advanced Error Reporting

Maximum Sequential Read / Write: 7000MB/s / 6700MB/s

Maximum Random Read / Write: 1600KIOPS / 170KIOPS

Sustained Random Read / Write Latency (µs): 100/15 (QD=1, Workers=1); 110/300 (QD=32, Workers=1); 450/4000 (QD=64, Workers=8)

IOPS Consistency: 95%

QoS (99%) Read / Write (µs): 100/12 (QD=1, Workers=1); 140/200 (QD=32, Workers=1); 600/3200 (QD=64, Workers=8)

Random Read/Write Power (Typ): 13.3 W / 15.5 W

Sequential Read/Write Power (Typ): 10.6 W / 17.9 W

Inrush Current: 1.5A

Idle Power (Typ): 5.80 W

DWPD: 1 DWPD

TBW: 7008 TB

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

MTBF: 2,500,000 hours

UBER: < 1 sector per 10^18 bits read

ECC

Static and Dynamic Wear Leveling

Bad Block Management

Deallocate (TRIM) Command

SMART

Over-Provision

Firmware Upgrade

Operation Temperature: 0 °C - 70 °C with specified airflow

Storage Temperature: -40 °C - 85 °C

RoHS Compliant

Namespace

Dual Port

Reservation

Metadata Protection

Thermal Throttling

Power Loss Protection

Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance: PCIe Express Base 4.0

NVMe: 1.4

NVMe Management Interface: Rev 1.1

*
