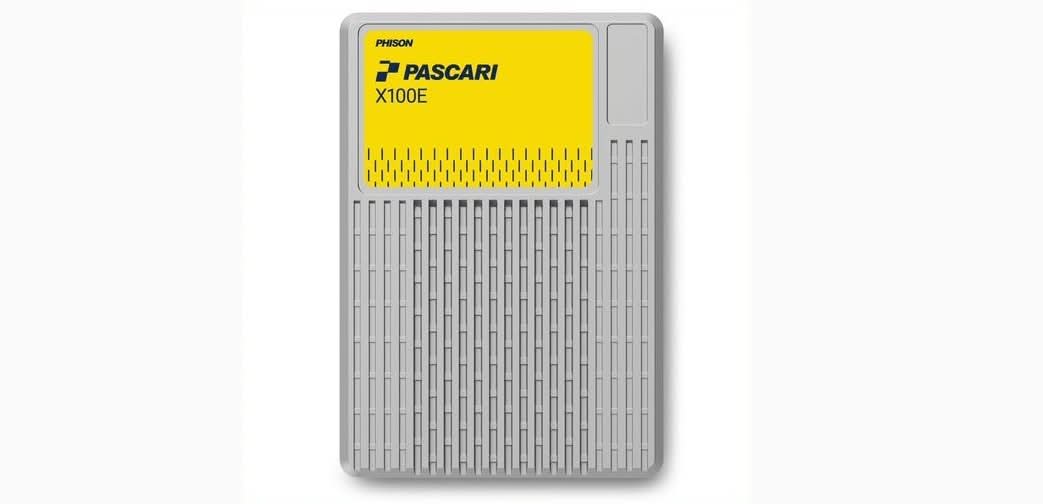

 PHISON XX106H003T20E024T0900 Pascari X100E 3.2TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD

Specifications

Model Number:XX106H003T20E024T0900

Brand:   PHISON

Alt Part Number(s):XX106H003T20E024T0900

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX106H003T20E024T0900

Capacities: 3.2TB

Security: Non-Opal

Form Factor: U.2

PCIe Interface
PCIe Gen4x4
Dual Port x2 lanes
PCIe AER (Advanced Error Reporting)

Performance
128KB Sequential Read/Write (QD=32, Workers=1)(MB/s): 7,000 / 6,700
4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 1,600K / 430K
4K Sustained Random Read/Write Latency (µs): 100 / 15 (QD=1, Workers=1); 110 / 120 (QD=32, Workers=1); 450 / 1600 (QD=64, Workers=8)
IOPS Consistency: 95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(µs): 100 / 12 (QD=1, Workers=1); 140 / 100 (QD=32, Workers=1); 600 / 2000 (QD=64, Workers=8)

Power Consumption
Random Read (Typ., W): 13.8
Random Write (Typ., W): 16.4
Sequential Read (Typ., W): 11.0
Sequential Write (Typ., W): 18.3
Inrush Current: 1.5A
Idle (Typ., W): 5.83

DWPD: 3DWPD

TBW: 17520TB

LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes

MTBF: 2,500,000 hours

UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits Read

Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade

Temperature Range
Operation: 0 °C - 70 °C with specified airflow
Storage: -40 °C - 85 °C

RoHS compliant

Enterprise Features Support List
Namespace
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption

Support SMBus

Support NVMe-MI (Management Interface)

Data Retention: 3 months

Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1

*
