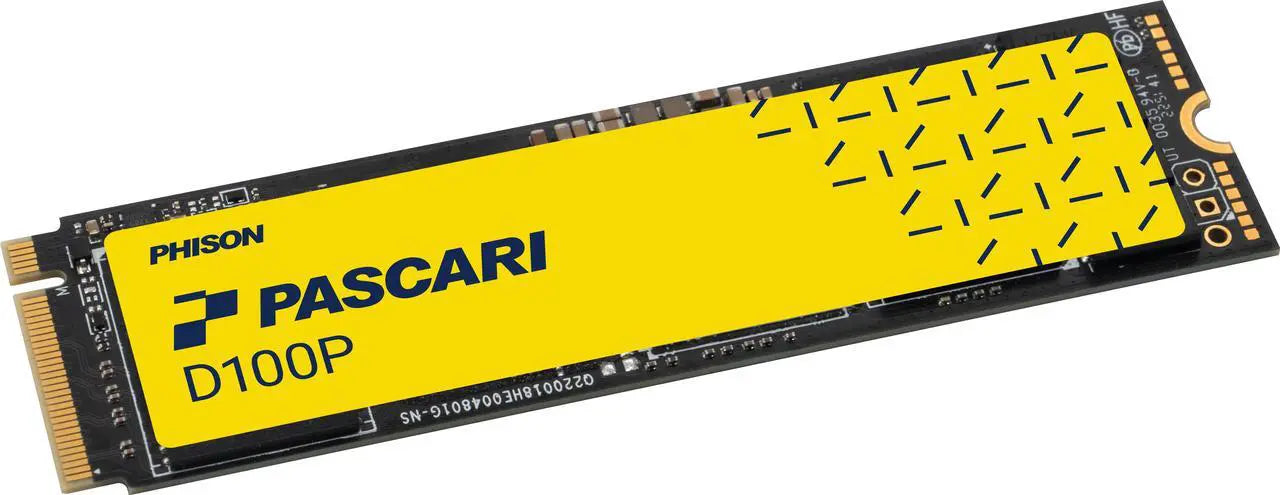

PHISON D1802K021T92P012T0400 is a 1.92TB M.2 2280 enterprise SSD with PCIe Gen4 x4 interface, delivering up to 6,000 MB/s sequential read and 1,800 MB/s sequential write speeds. It supports 1 DWPD endurance, 800K IOPS random read, 60K IOPS random write, hardware AES-XTS 256-bit encryption, power loss protection, and high reliability with 2M hour MTBF, wide operating temperature, and robust shock and vibration tolerance.



Specifications

Model Number:  D1802K021T92P012T0400

Brand: PHISON

Alt Part Number(s):  D1802K021T92P012T0400

Product Type:  Solid State Drive



Technical Description

Brand: PHISON

Model:  D1802K021T92P012T0400

Capacities: 1.92 TB

Form Factor: M.2 2280

PCIe Interface: PCIe Gen4 x4

Compliance: PCI Express® Base Specification Rev. 4.0; NVM Express™ Base Specification Rev. 1.4; NVM Express™ Management Interface Rev 1.1

Sequential Read: Up to 6000 MB/s

Sequential Write: Up to 1800 MB/s

Random Read: Up to 800K IOPS

Random Write: Up to 60K IOPS

128K Active Read (Avg. RMS): 8.5 W

128K Write (Avg. RMS): 7.8 W

4KB Active Read (Avg. RMS): 11 W

4KB Active Write (Avg. RMS): 8 W

4KB 70/30 Random READ/WRITE (Average RMS, W): 7.4 W

Idle Power: 3.5 W

MTBF: 2,000,000 hours

UBER: < 1 sector per 10^17 bits read

DWPD: 1

TBW: 3,700 TB

Temperature (Operating): 0 °C - 70 °C

Temperature (Non-operating): -40 °C - 85 °C

Shock (Operating): 1000G, 0.5 ms

Shock (Non-operating): 1500G, 0.5 ms

Vibration (Operating): 3.08 Grms (7 - 200 Hz)

Vibration (Non-operating): 20G (20 - 2000 Hz)

Drop: 80 cm height

Bending: ≥20N force

Certifications: CE; FCC; BSMI; VCCI; UKCA; RCM; ICES; KCC; CB; UL

Product Ecological Compliance: RoHS compliant

Feature Support: 64 Namespaces; Hardware Based Power Loss Data Protection; Reservation; Thermal throttling; Hardware AES-XTS 256-bit Encryption; SMBus; End-to-End Data Path Protection; TCG Opal 2.0; Sanitize; SECDED

Physical Dimension: M.2 2280-D-M
