Description

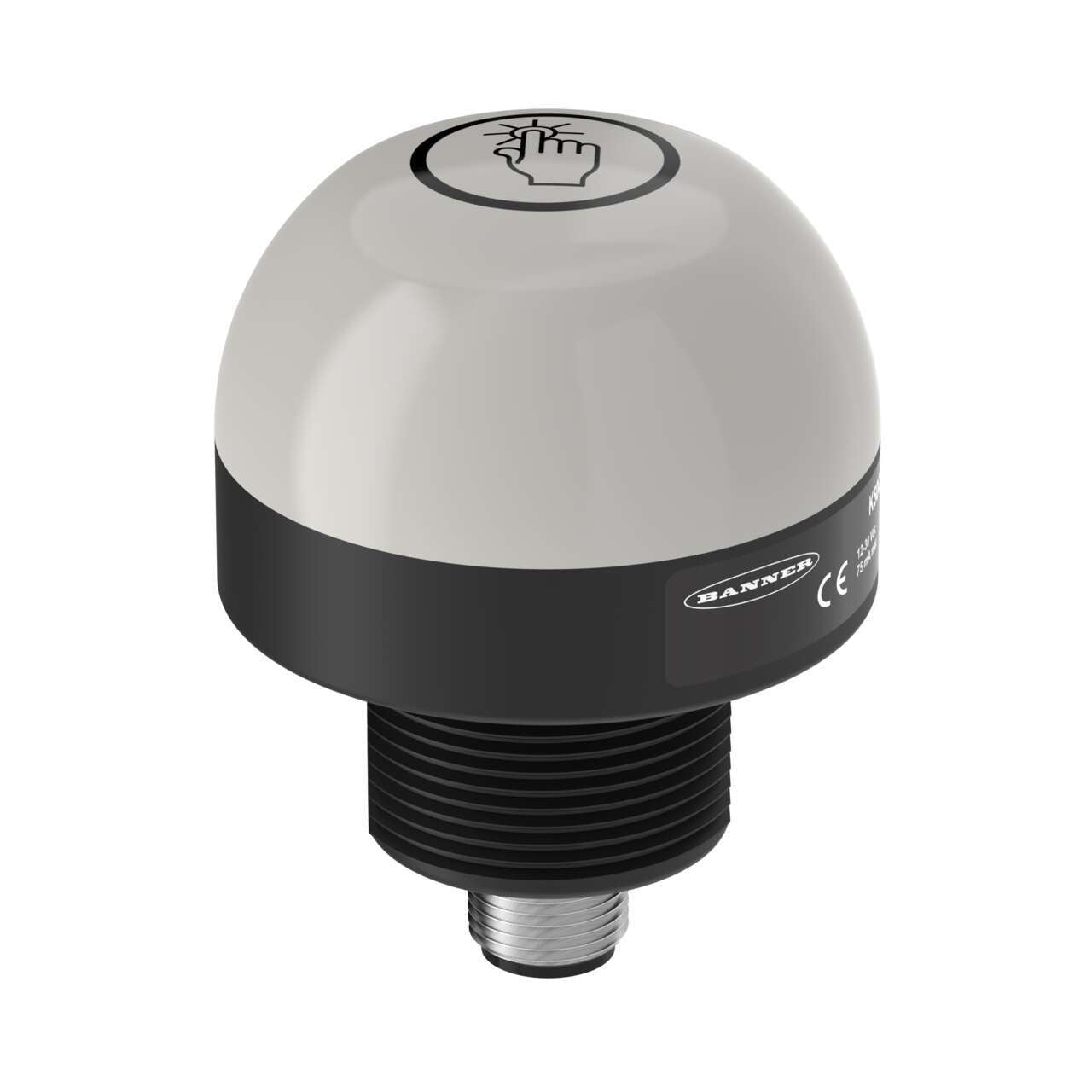

The Banner Engineering K50ALBT2GRHQ is a two-color capacitive touch sensor with latching output designed for industrial operator interface applications. It operates on a 12–30 VDC supply and provides bipolar NPN/PNP normally open outputs. The unit features green illumination when inactive and red illumination when activated.

Technical Specifications

Information About K50ALBT2GRHQ

The K50ALBT2GRHQ is part of the Banner Engineering K50 EZ-LIGHT Series Gen 2 and is designed as a touch-activated illuminated button for pick-to-light and control systems. It uses capacitive sensing technology to detect operator input without mechanical actuation. The dome-style polycarbonate housing is rated IP67 and IP69K for washdown environments and mounts via an M30 x 1.5 threaded base. A 5-pin M12 integral quick-disconnect connector supports simplified installation and wiring.

Key Features:

• Capacitive touch activation: Non-mechanical operator input.

• Dual-color indication: Green (inactive), Red (activated).

• Latching output: Maintains state until reset.

• 12–30 VDC supply: Compatible with industrial DC systems.

• Bipolar output: NPN and PNP normally open configuration.

• IP67/IP69K rated housing: Suitable for washdown environments.

• M30 threaded mounting: Panel installation format.

The K50ALBT2GRHQ delivers the reliability and precision required for industrial touch-based operator interface and pick-to-light applications.
