Description

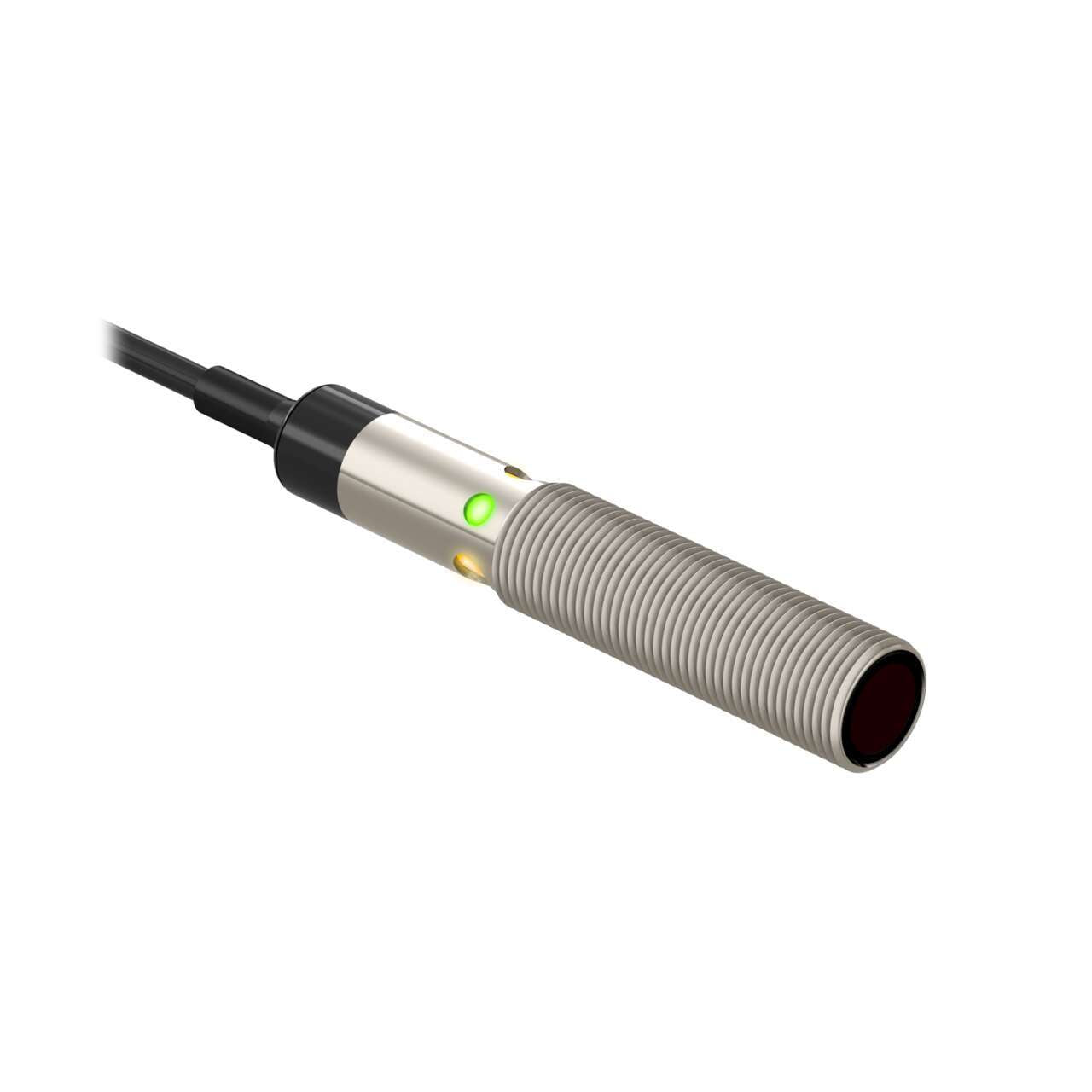

The Banner Engineering M12NFF50 is a fixed-field photoelectric sensor designed for background suppression at a 50 mm sensing distance. It operates on a 10–30 VDC supply and provides complementary solid-state NPN outputs. The sensor features a visible red LED beam and a 2-meter integral cable connection.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors & Switches |
| Part Number |
M12NFF50 |
| Subcategory |
Photoelectric |
| Series |
M12 Series |
| Sensing Mode |
Fixed Field (Background Suppression) |
| Maximum Sensing Distance |
50 mm |
| Light Source |
Visible Red LED (680 nm) |
| Supply Voltage |
10–30 VDC |
| Output Type |
Complementary Solid-State NPN |
| Connection Type |
2 m Integral Cable |
| Housing Style |
12 mm Threaded Barrel |
| Housing Material |
Nickel-Plated Brass |
| Dimensions |
12 mm x 67.5 mm |
| Environmental Rating |
IP67, IP68 |
| Operating Temperature |
-20°C to +60°C |
| Operating Mode |
Background Suppression (Non-adjustable) |
| Weight |
0.20 lbs |
Information About M12NFF50
The M12NFF50 belongs to the Banner Engineering M12 Series, featuring a compact 12 mm threaded nickel-plated brass barrel housing. It uses fixed-field background suppression technology to detect objects within a defined sensing zone while ignoring background surfaces. The sensor includes encapsulated electronics and is rated IP67/IP68 for operation in harsh industrial and washdown environments. Dual LED indicators provide visual status monitoring for power and output conditions.
Key Features:
-
Fixed-field sensing: 50 mm defined detection range with background suppression.
-
Complementary NPN output: Solid-state light/dark operate configuration.
-
10–30 VDC operation: Standard industrial DC power compatibility.
-
Visible red LED beam: 680 nm wavelength for simplified alignment.
-
Metal barrel housing: 12 mm threaded nickel-plated brass construction.
-
Encapsulated electronics: Enhanced durability in harsh environments.
-
IP67/IP68 rating: Suitable for washdown and sealed installations.
The M12NFF50 delivers the reliability and precision required for compact industrial background suppression sensing applications.
