Description

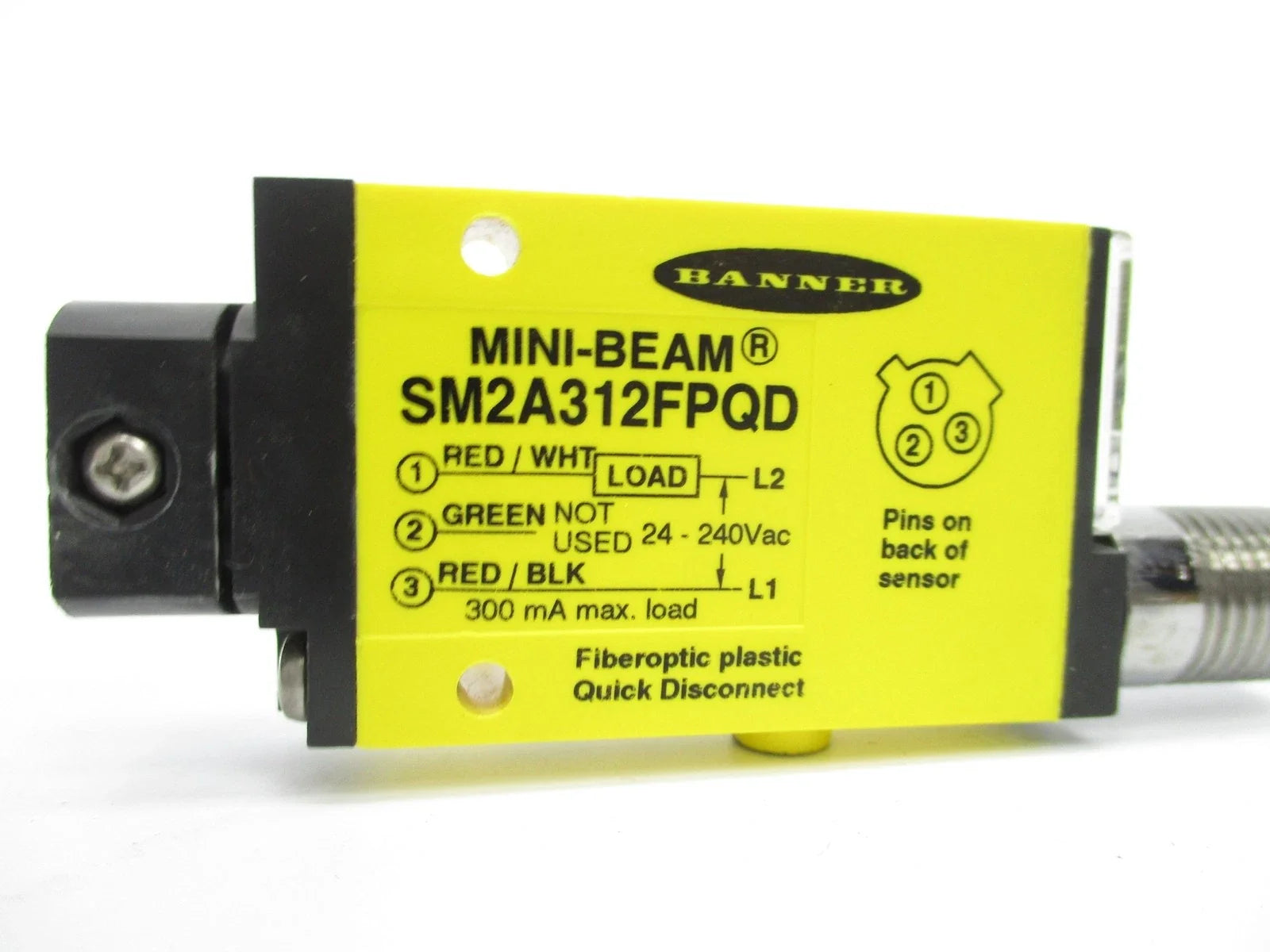

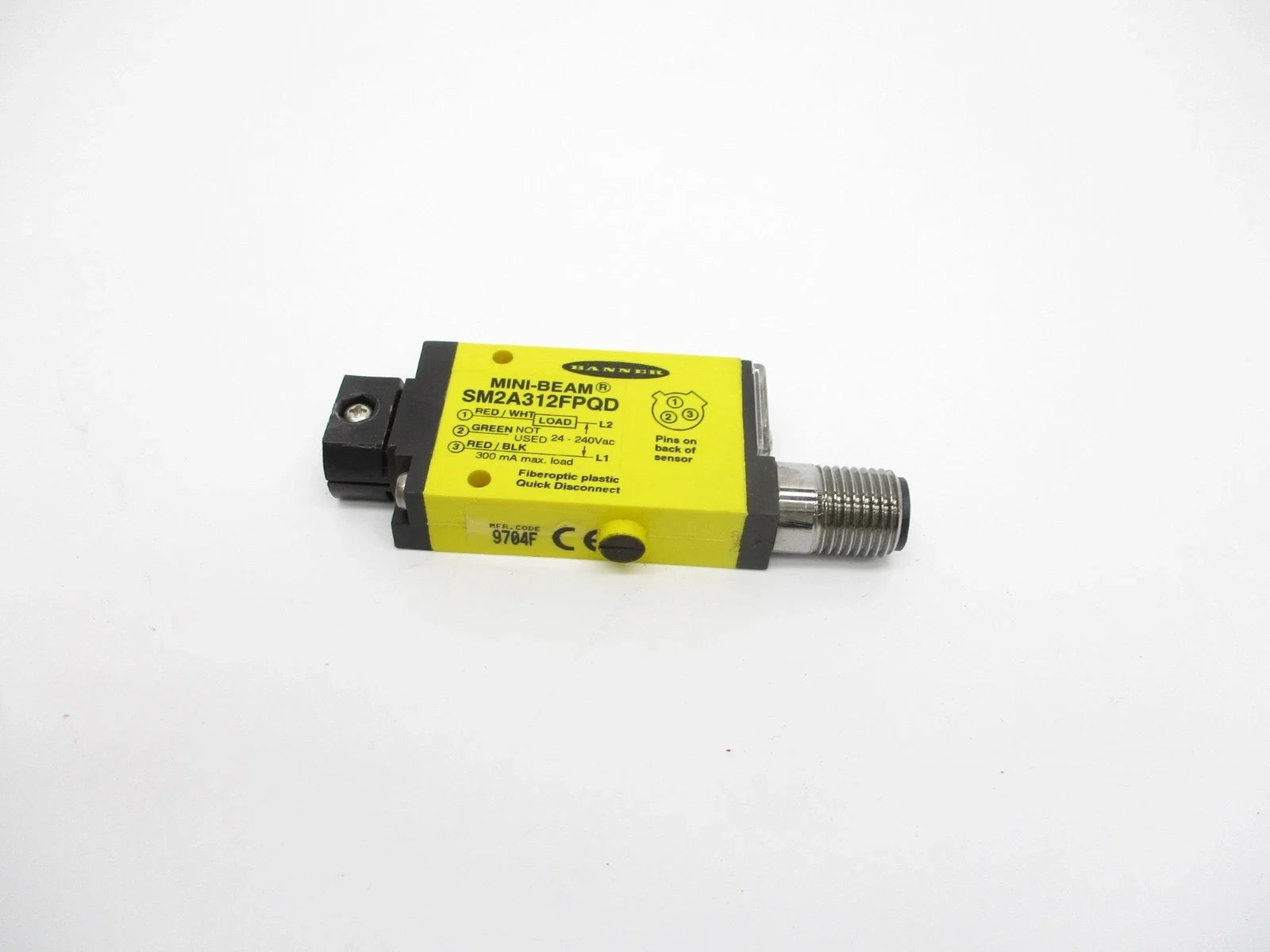

The SM2A312FPQD is a self-contained fiber optic photoelectric sensor housed in the MINI-BEAM rectangular form factor. Its AC-powered solid-state output and compatibility with multiple fiber types allow flexible integration into automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors & Switches |
| Part Number |
SM2A312FPQD |
| Subcategory |
Photoelectric |
| Series |
MINI-BEAM AC |
| Sensing Configuration |
Fiber Optic |
| Compatible Fiber Type |
Plastic and Glass |
| Accepted Termination |
Unterminated Plastic Fibers or T5 |
| Supply Voltage |
24–240 VAC |
| Output Type |
SPST Solid-State AC Switch |
| Response Time |
4 ms |
| Repeatability |
1300 µs |
| Turn-On Delay |
300 ms |
| Connection Type |
3-pin Micro Integral QD |
| Housing Style |
Rectangular |
| Housing Material |
Thermoplastic |
| Environmental Rating |
IP67 |
| NEMA Rating |
NEMA 4X |
| Operating Temperature |
-20°C to +70°C |
| Relative Humidity |
90% at 50°C |
| Weight |
0.07 kg |
Information About SM2A312FPQD

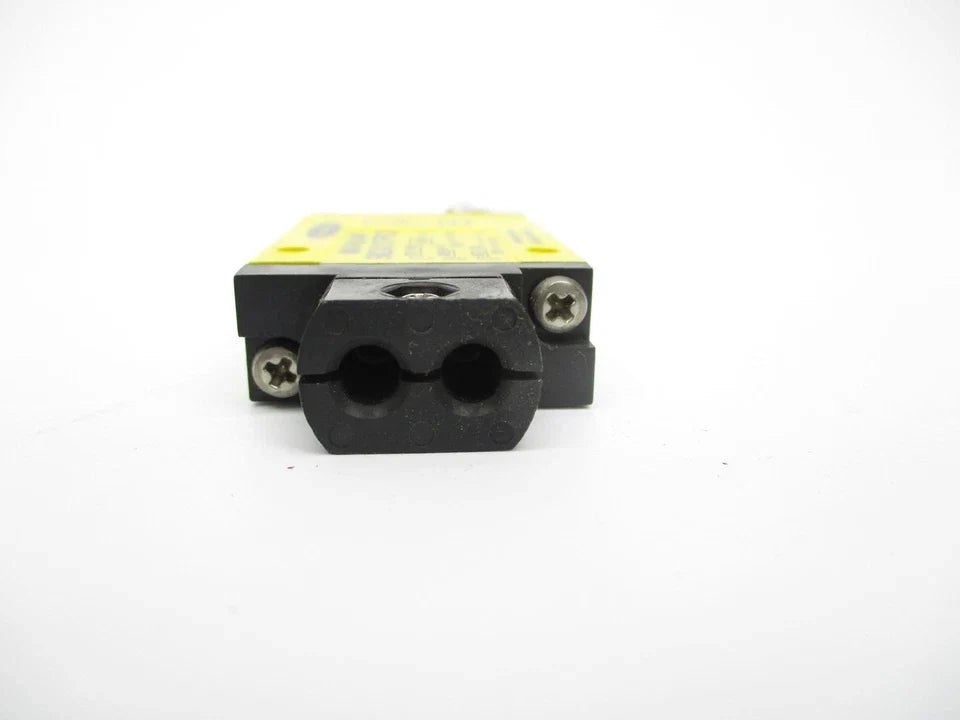

The SM2A312FPQD is part of the Banner Engineering MINI-BEAM® AC series and is configured for remote fiber optic sensing applications. It accepts unterminated plastic fibers or T5 terminations and supports both plastic and glass fiber types. The unit includes a potentiometer for sensitivity adjustment and operates with a 3-pin Micro-style integral quick-disconnect connector. Its thermoplastic housing is rated IP67 and NEMA 4X for use in industrial environments.
Key Features:
-
Fiber optic sensing configuration: Compatible with plastic and glass fiber assemblies.
-
AC supply operation: 24–240 VAC input voltage range.
-
Solid-state AC switch output: SPST two-wire configuration.
-
Adjustable sensitivity: Potentiometer-based configuration.
-
IP67 protection rating: Sealed housing for industrial use.
-

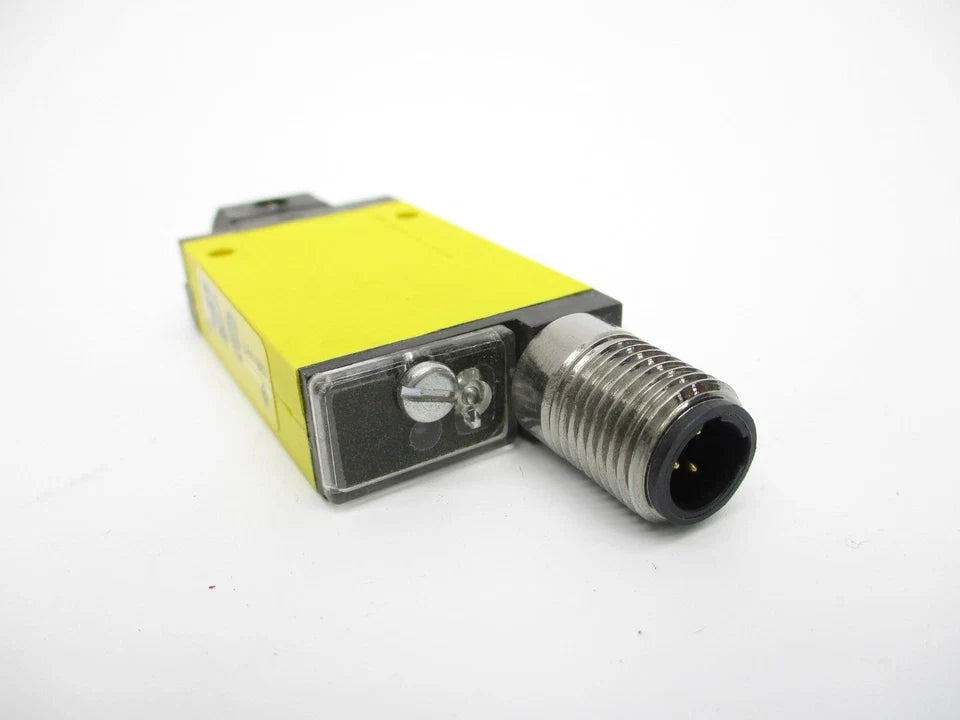

Micro-style quick disconnect: 3-pin integral connector.
-
4 ms response time: Suitable for general industrial detection tasks.
The SM2A312FPQD delivers the reliability and precision required for industrial fiber optic photoelectric sensing applications.
