Description

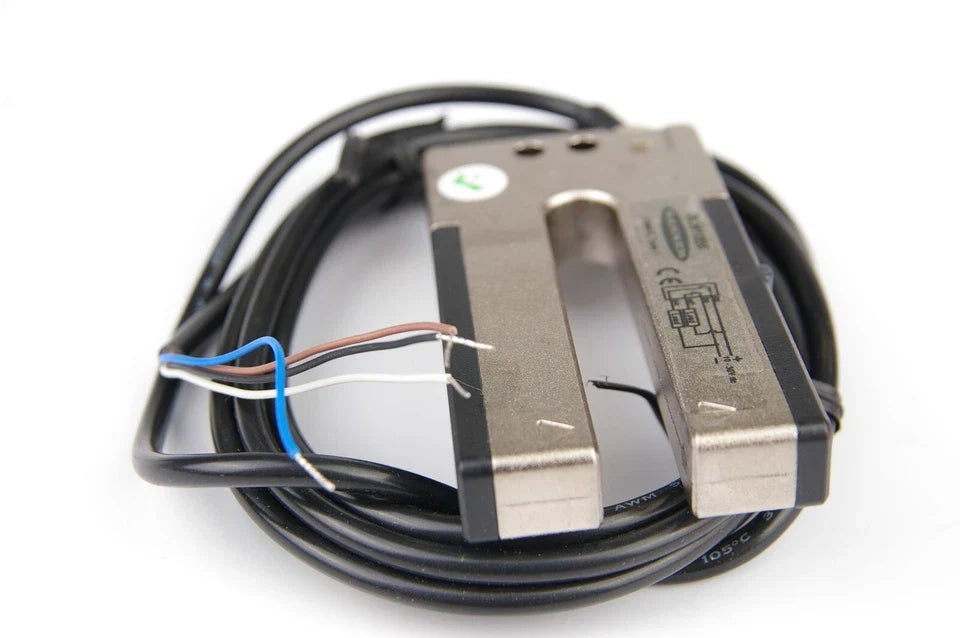

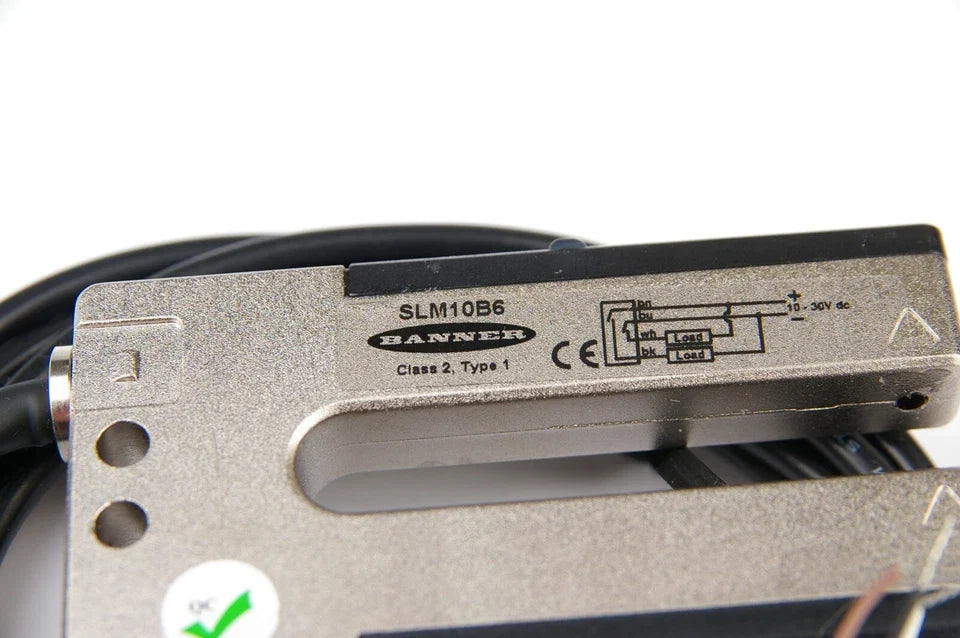

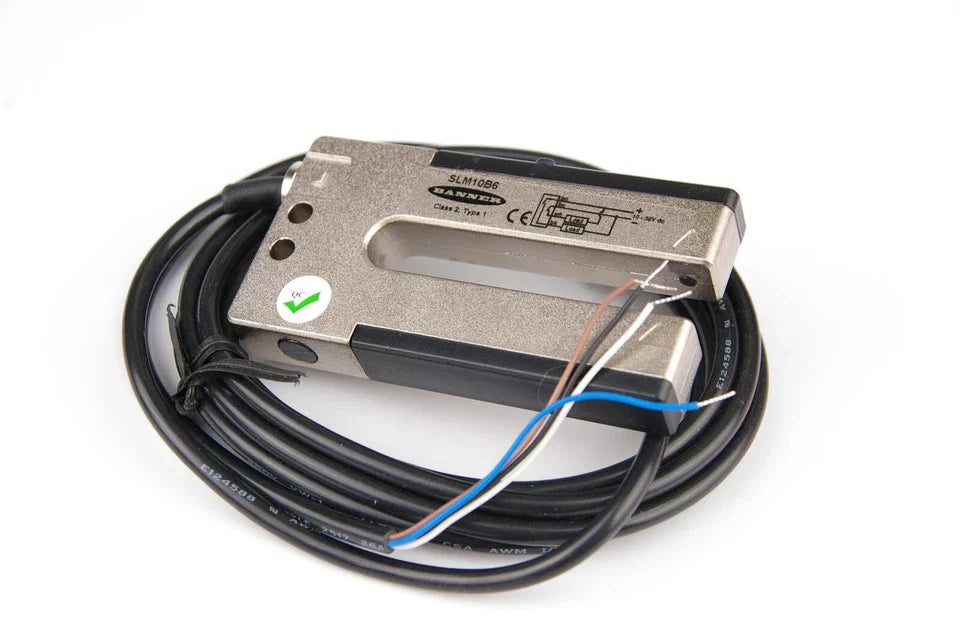

The Banner Engineering SLM10B6 is a fixed-distance slot photoelectric sensor with a 10 mm slot width for precise part detection. It operates on a 10–30 VDC supply and provides bipolar NPN and PNP outputs. The unit features a rugged nickel-plated zinc die-cast housing and a 2-meter integral cable connection.
Technical Specifications
| Condition |

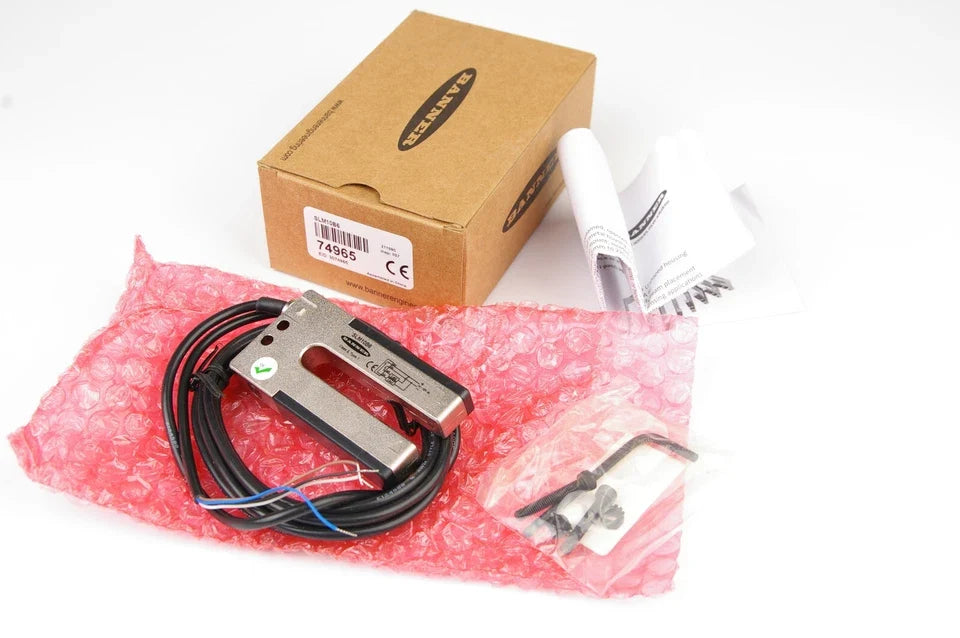

New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors & Switches |
| Part Number |
SLM10B6 |
| Subcategory |
Photoelectric |
| Series |
SLM Series |
| Sensing Mode |
Emitter/Receiver Slot (Through Beam) |
| Slot Width |
10 mm |
| Minimum Object Detection |
0.3 mm |
| Supply Voltage |
10–30 VDC |
| Output Type |
Bipolar (NPN & PNP) |
| Response Time |
0.5 ms |
| Repeatability |
95 µs |
| Connection Type |
2 m Integral Cable (4-Wire) |
| Housing Style |
Slot / Fork |
| Housing Material |
Zinc Die-Cast, Nickel-Plated |
| Lens Material |
Acrylic |
| Environmental Rating |
IP67 |
| NEMA Rating |
NEMA 6 |
| Operating Temperature |
-20°C to +60°C |
| Relative Humidity |
95% at 55°C |
| Weight |
0.30 lbs |
Information About SLM10B6

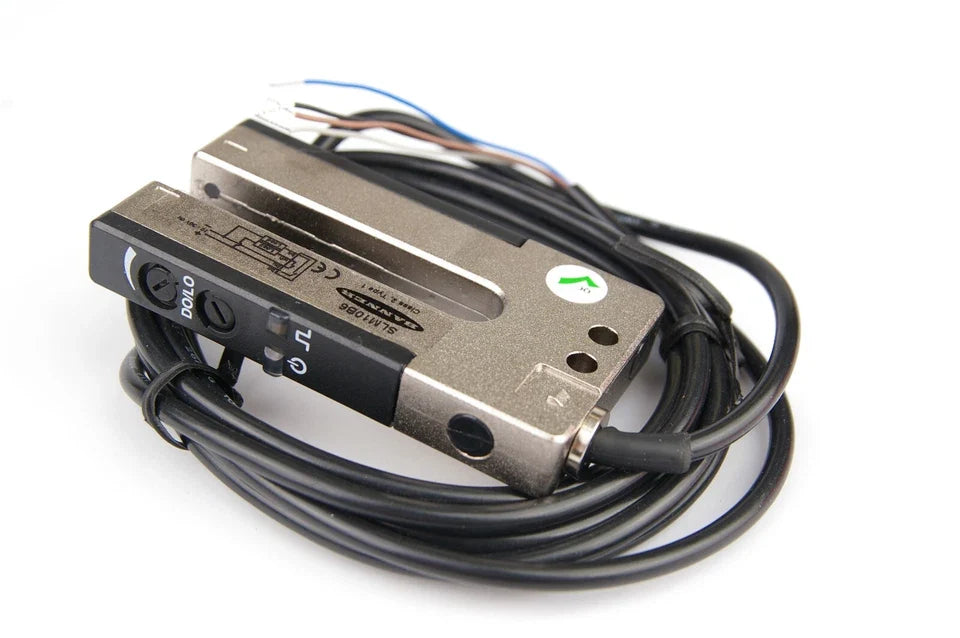

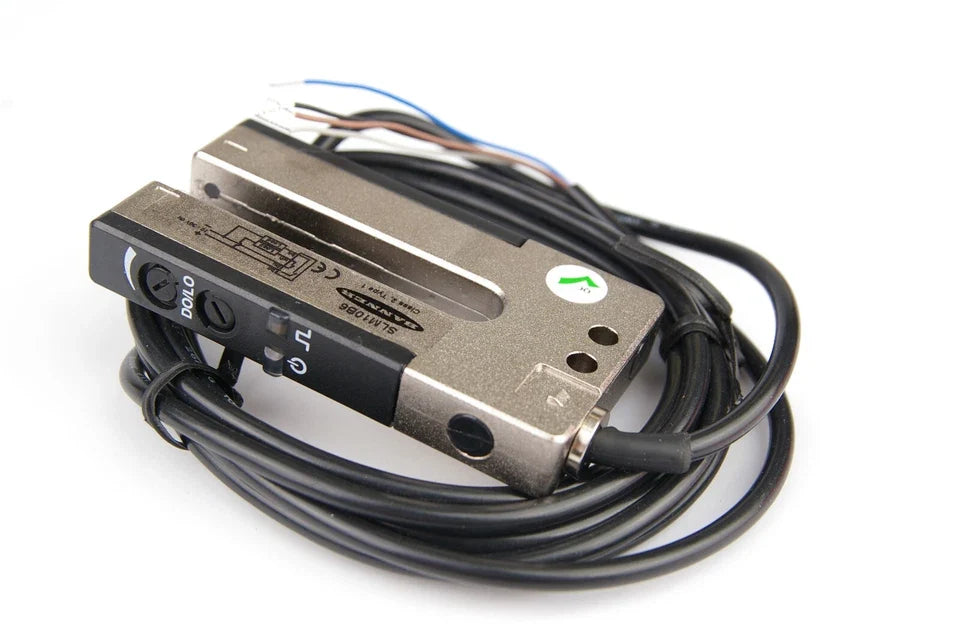

The SLM10B6 is part of the Banner Engineering SLM Series, designed as an emitter/receiver fork-style sensor for accurate through-beam detection within a defined slot. It detects objects as small as 0.3 mm passing through the 10 mm opening. The sensor includes a single-turn potentiometer for sensitivity adjustment and a selector for light or dark operate configuration. Its IP67 and NEMA-rated metal housing supports installation in demanding industrial environments.
Key Features:
-
10 mm slot width: Fixed sensing gap for consistent object detection.
-
Minimum object detection 0.3 mm: Suitable for small part sensing.
-
Bipolar outputs: Provides both NPN and PNP discrete outputs.
-
10–30 VDC operation: Standard industrial DC power compatibility.
-
Fast response time: 0.5 ms switching speed.
-
Nickel-plated metal housing: Durable zinc die-cast construction.
-
IP67 protection: Sealed design for industrial environments.
The SLM10B6 delivers the reliability and precision required for industrial slot-type photoelectric sensing applications.
