Overview

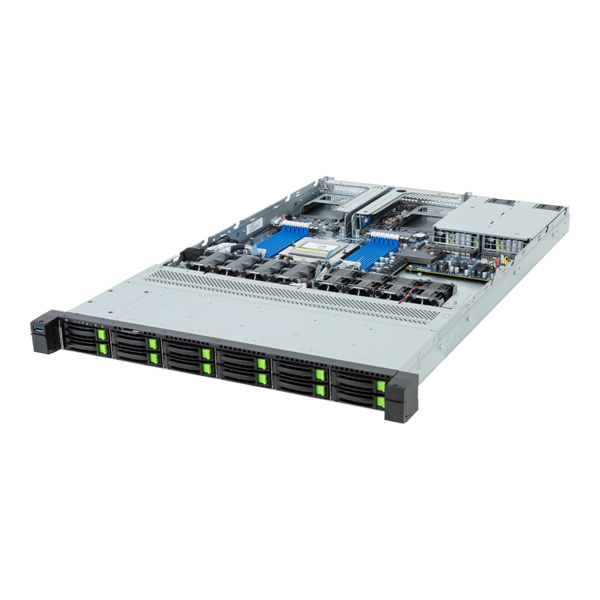

The GIGABYTE R163-Z35-AAH1 is a high-performance 1U rack-mounted server featuring a single AMD EPYC™ 9004 Series processor (up to 192 cores). It supports up to 3TB of DDR5 memory, 12x 2.5" Gen5 NVMe/SATA bays, and offers expansion via PCIe Gen5 slots. Powered by dual 1300W 80 PLUS Titanium redundant PSUs, it also includes dual LAN ports for networking.
Specifications
Model Number: R163-Z35-AAH1
Brand: Gigabyte
Alt Part Number(s):R163-Z35-AAH1
Product Type:Server
Technical Description
Brand: Gigabyte
Model Number:R163-Z35-AAH1
Processor Support: Single AMD EPYC™ 9004 Series processor, up to 192 cores and 384 threads.
Memory Capacity: 12 DIMM slots supporting up to 3TB of DDR5 memory (up to 4800 MT/s).
Storage: 12 hot-swappable 2.5" Gen5 NVMe/SATA/SAS-4 bays + 1x M.2 slot for additional storage.
Expansion Slots: 2x PCIe Gen5 x16 slots (FHHL) and 2x OCP NIC 3.0 Gen5 x16 slots.
Networking: 1x 1Gb/s LAN port (Intel® I210-AT), 1x dedicated management LAN port.
Power Supply: 1+1 1300W 80 PLUS Titanium redundant power supplies.
Boost your enterprise performance with the Gigabyte R163-Z35-AAH1 1U UP EPYC 9004 9005 12x 2.5 Gen5 NVMe SATA Rack Mount Server—ORDER TODAY!
*
