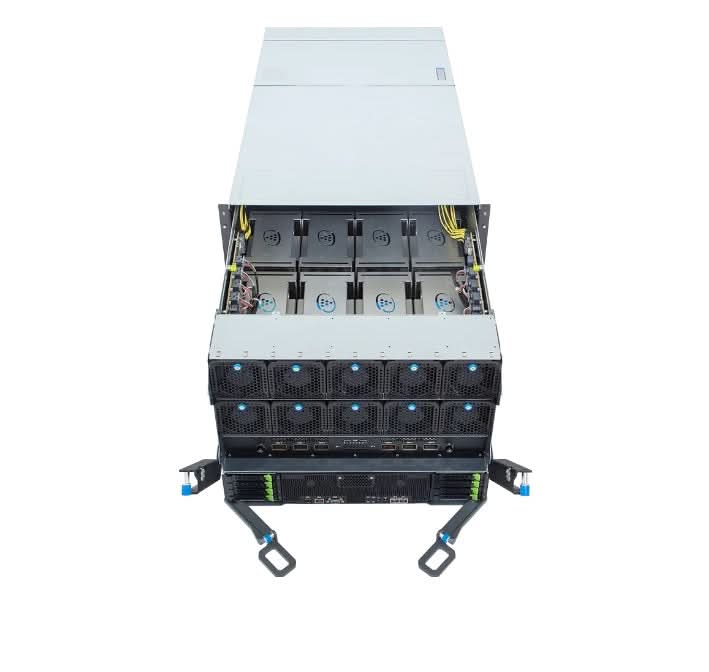

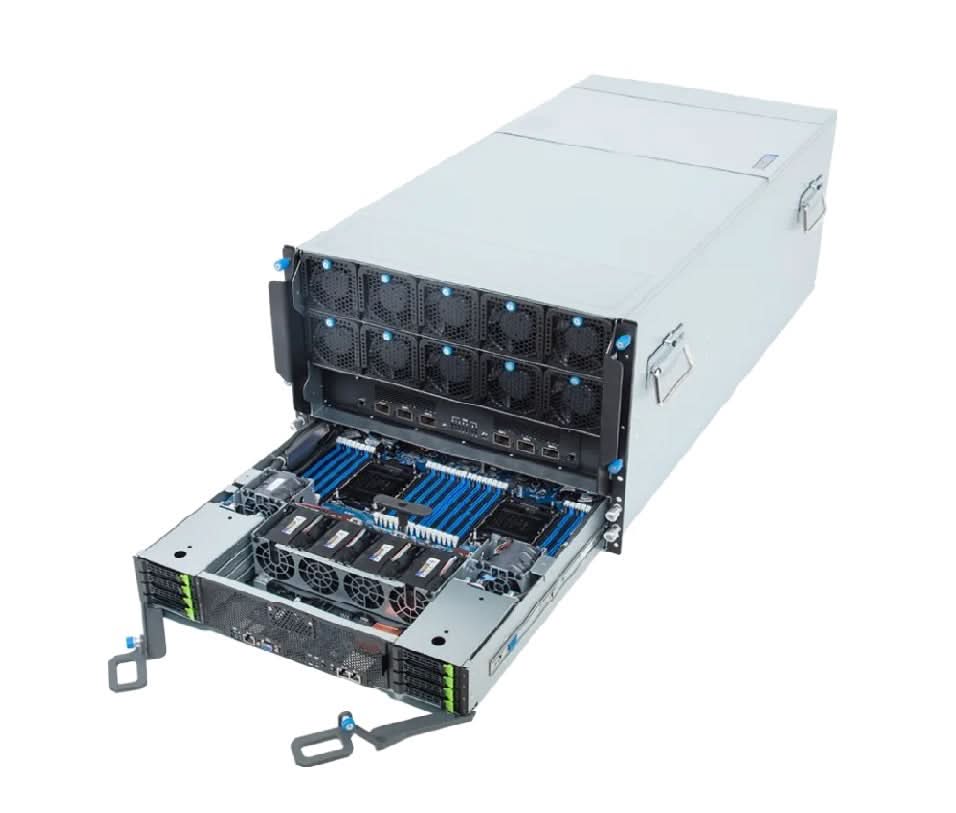

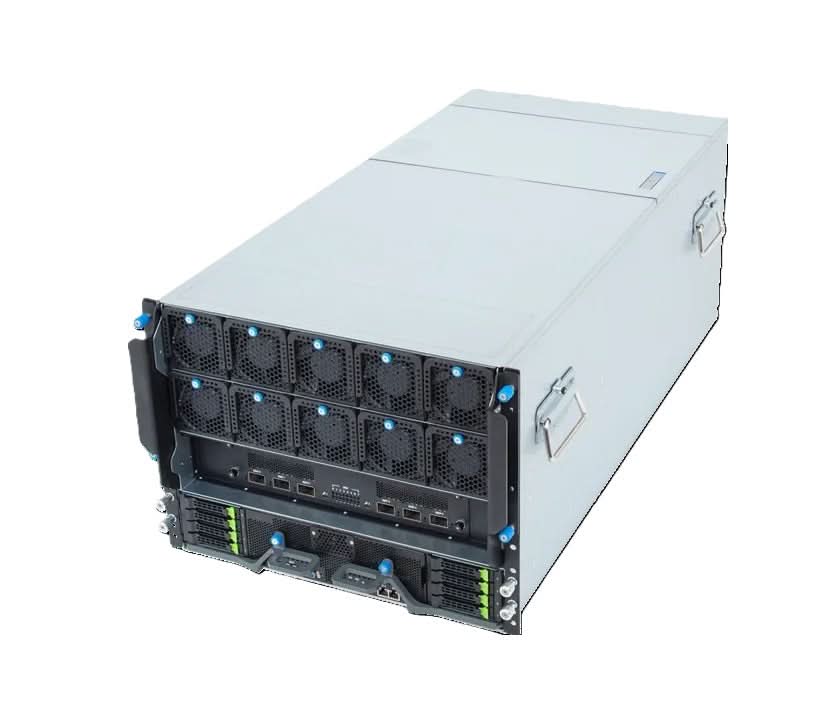

Gigabyte G893-SG1-AAX1 Intel Xeon Scalable 8U Rackmount/GPU Server

Specifications

Model Number:  G893-SG1-AAX1

Brand:  Gigabyte

Alt Part Number(s):  G893-SG1-AAX1

Product Type:  GPU Server

Technical Description

Brand:  Gigabyte

Model Number:  G893-SG1-AAX1

Processor Type:4th Gen,5th Gen Dual Intel Xeon Scalable Processors

Processor Power:  Up to 350W

Processor Socket:  2 x LGA 4677

Chipset Type:  Intel C741

Modular GPU:  Intel Gaudi 3

Motherboard:  MSB3-PE0

Number of Channels:  8-Channel

Memory Supported:  4TB

Memory Technology:  DDR5

Memory Slots:  32

Memory Per Processor:

5th Gen Intel Xeon:  RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel Xeon:  RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Intel Xeon Max Series: RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

Storage Type:  8×2.5″ Gen5 NVMe/SATA hot‑swap bays

Internal M.2 slots:  2× (2280/22110) one with PCIe Gen3 ×2, the other with PCIe Gen3 ×1 (from PCH)

PCIe Expansion Slots:  16

• 4 × FHHL dual‑slot PCIe Gen5 ×16 slots

• 8 × FHHL single‑slot PCIe Gen5 ×16 slots

Graphics Controller:  ASPEED AST2600

Power Supply:  5+5 3000W 80 Plus

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor:  8U Rackmount/GPU Server

*
