Overview

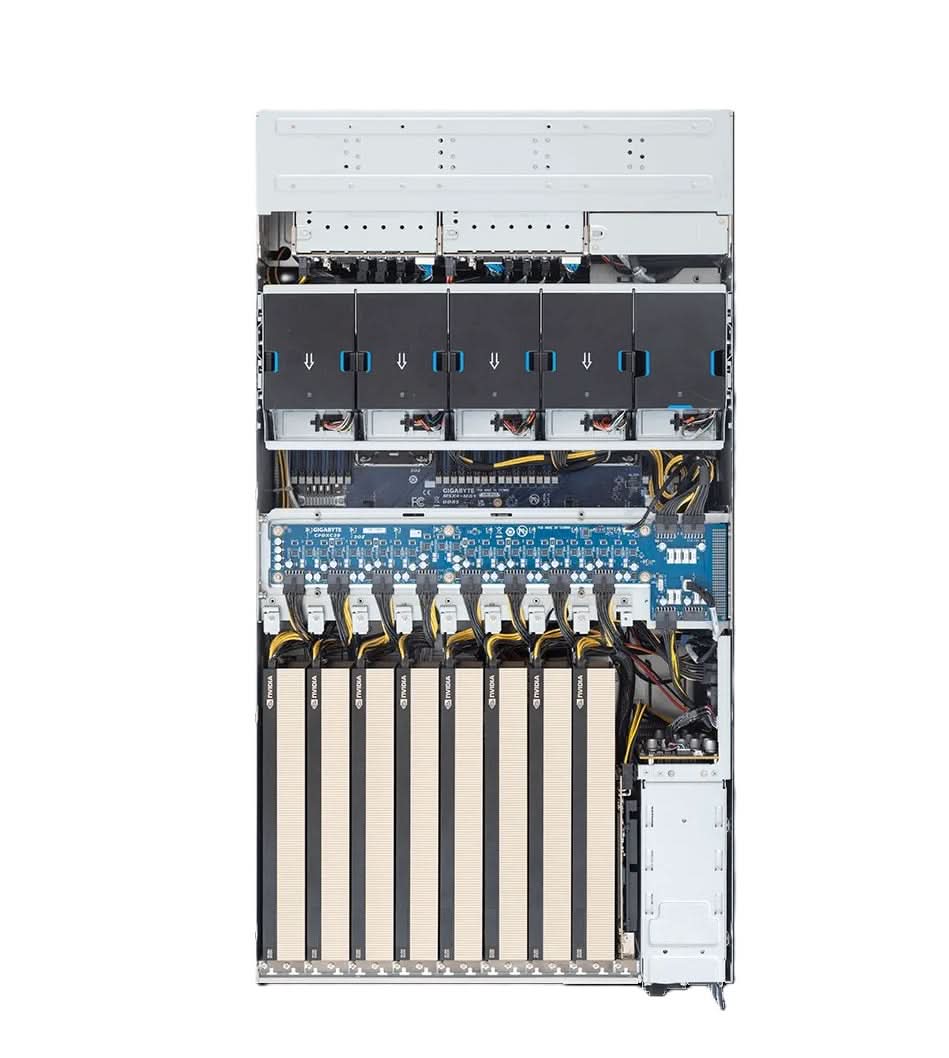

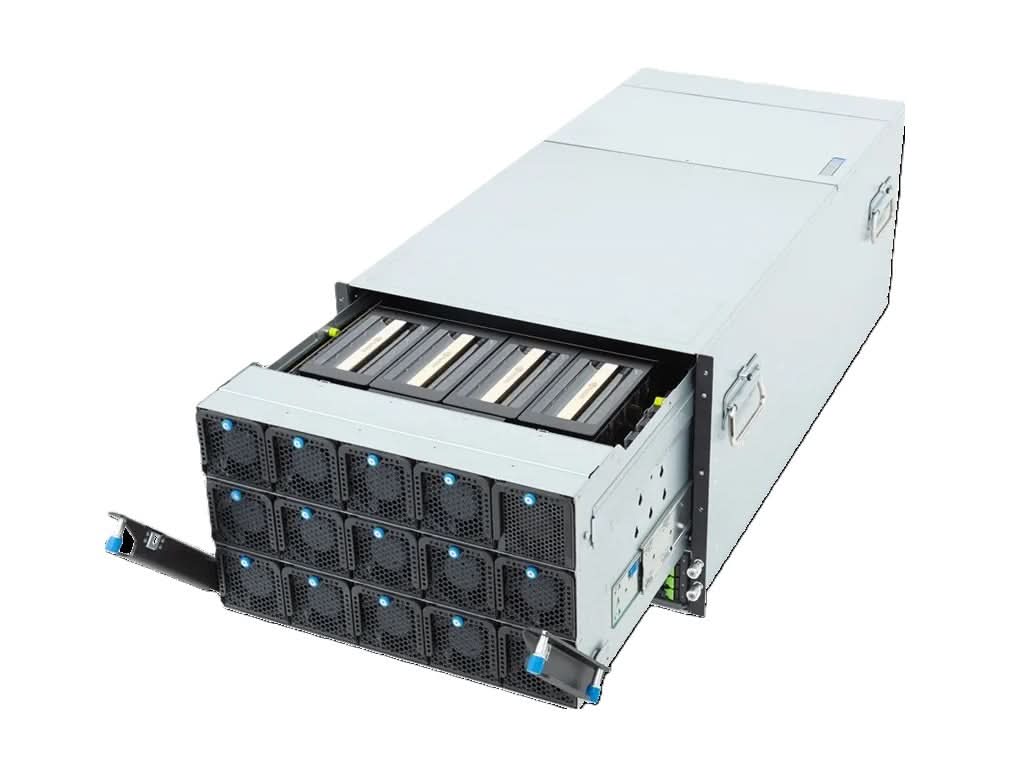

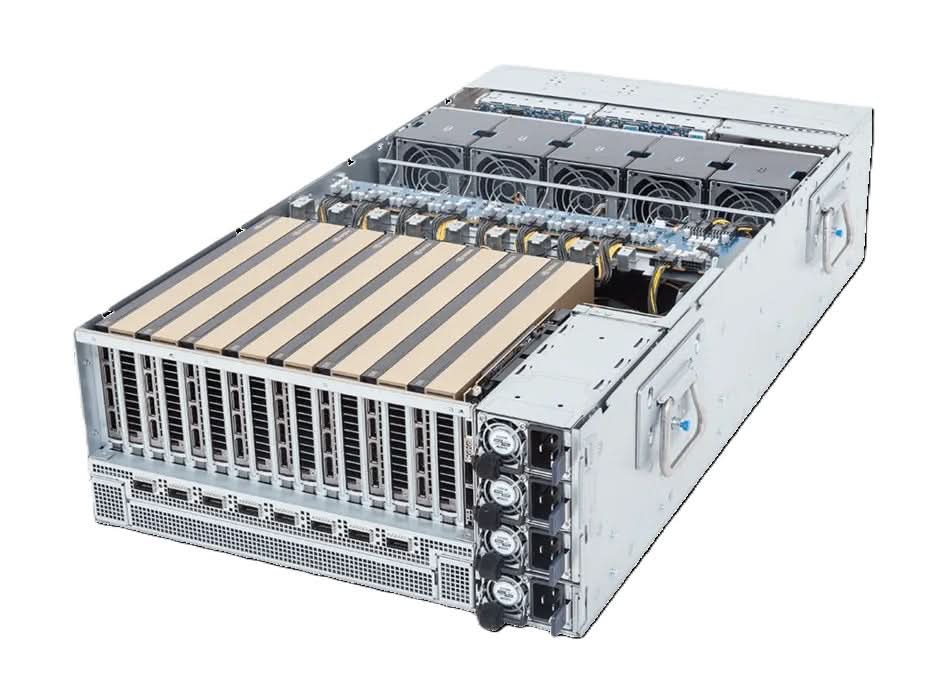

Gigabyte XL44-SX2-AAS1 Intel Xeon 6700/6500 DDR5 4U Rackmount/GPU Server

Specifications

Model Number:  XL44-SX2-AAS1

Brand:  Gigabyte

Alt Part Number(s):  XL44-SX2-AAS1

Product Type:  GPU Server

Technical Description

Brand:  Gigabyte

Model Number:  XL44-SX2-AAS1

Processor Type:  Dual IntelXeon6700/6500-series

Processor Socket: 2 x LGA 4710 Socket E2

Chipset Type: System on Chip

Modular GPU:  8 x Nvidia Rtx Pro 6000

Motherboard:  MSX4-MG1

Number of Channels:  8-Channel

Controller Type:  PCIe Gen5 x4

Graphics Controller:  Aspeed AST2600

Front hot-swap:  8 x 2.5" Gen5 NVMe

Power Supply:  3+1 3200W 80 Plus

Memory Supported:  8TB

Memory Technology:  DDR5

RDIMM:  Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)

MRDIMM:  Up to 8000 MT/s

Memory Slots:  32 x DIMM

Storage:  8 x 2.5" Gen5 NVMe
- (2 x NVMe from CPU_0, 6 x NVMe from CPU_1)
Internal M.2 (I/O board - CFPX041):
2 x M.2 (2280/22110), PCIe Gen4 x2, from CPU_0

PCIe Expansion Slots:  2 x M.2

Output Voltage:  208 - 230 V AC

Protocols:  Web, SNMP, Telnet

Form Factor: 4U Rackmount/GPU Server

*
