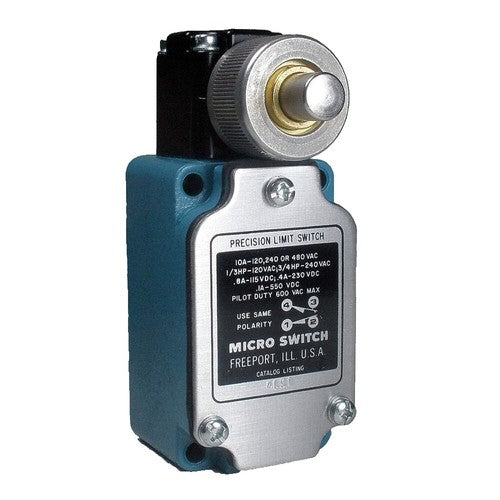

Description
The Honeywell BZV6-RNX1 is a heavy-duty SPDT limit switch with a top plunger actuator, rated for 15 A at 480 VAC and 0.5 A at 250 VDC. It features a flange mount, robust zinc die-cast housing, and NEMA 1, 3, and 4/IP66 protection for dependable performance in harsh industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Industrial Switches |
| Part Number |
BZV6-RNX1 |
| Subcategory |
Limit Switches |
| Switch Type |
Mechanical limit switch |
| Contact Configuration |
SPDT (Single Pole Double Throw) |
| Contact Form |
N.O. / N.C. |
| Actuator Type |
Top plunger |
| Actuator Style |
Pin plunger |
| Operating Force |
1.67 N to 5.56 N |
| Mounting Type |
Flange mount |
| Termination Style |
Screw terminals |
| Electrical Rating (AC) |
15 A at 480 VAC |
| Electrical Rating (DC) |
0.5 A at 250 VDC |
| NEMA Rating |
1, 3, 4 |
| IP Rating |
IP66 |
| Contact Material |
Silver alloy contacts |
| Actuation |
Momentary or maintained contact |
| Mechanical Life |
10 million operations (typical) |
| Electrical Life |
500,000 operations (at rated load) |
| Housing Material |
Zinc die-cast |
| Temperature Range |
-32°C to +71°C (-25°F to +160°F) |
| Certifications |
UL Recognized (E12252), CSA Certified (LR41372) |
| Grounding |
Equipped with grounding screw |
| Mounting Position |
Any position |
| Typical Applications |
Machinery safety, conveyors, cranes, packaging, and textile equipment |
| Weight |
0.44 lbs (approx. 0.2 kg) |
Information About BZV6-RNX1
The BZV6-RNX1 is part of Honeywell’s rugged industrial limit switch series, engineered for precision control and safety in mechanical systems. Designed with a plunger actuator and SPDT contacts, it allows reliable open or closed circuit control under demanding industrial conditions. Its flange-mount configuration simplifies installation on equipment frames or panels. Constructed from durable zinc die-cast material, the switch withstands vibration, moisture, and dust ingress, conforming to NEMA 1, 3, and 4/IP66 protection standards. Commonly used in material handling, manufacturing, and construction machinery, the BZV6-RNX1 ensures accurate limit detection, positioning, and motion interlocking.
Key Features:
- SPDT Contact Configuration: Provides both normally open and normally closed contacts for flexible circuit integration.
- High Electrical Ratings: Supports up to 15 A at 480 VAC or 0.5 A at 250 VDC for a wide range of industrial control applications.
- Durable Actuator Design: Features a top plunger with linear motion, offering precise and repeatable actuation.
- Rugged Construction: Zinc die-cast housing ensures long-lasting durability in mechanical and environmental stress conditions.
- Comprehensive Protection: NEMA 1, 3, 4 and IP66 ratings provide excellent resistance to dust, water, and industrial contaminants.
- Versatile Mounting: Flange-mount configuration allows easy installation in multiple positions on industrial machinery.
- Wide Temperature Range: Operates reliably from -32°C to +71°C, suitable for indoor and outdoor applications.
- Safety Compliance: UL and CSA certifications ensure adherence to global safety and performance standards.
- Grounding Capability: Equipped with grounding screw for enhanced safety in electrical installations.
- Proven Reliability: Designed for millions of mechanical operations, providing dependable long-term service in automation and control systems.
The BZV6-RNX1 delivers the reliability and precision required for machine safety, limit sensing, and motion control in industrial automation.
