Description

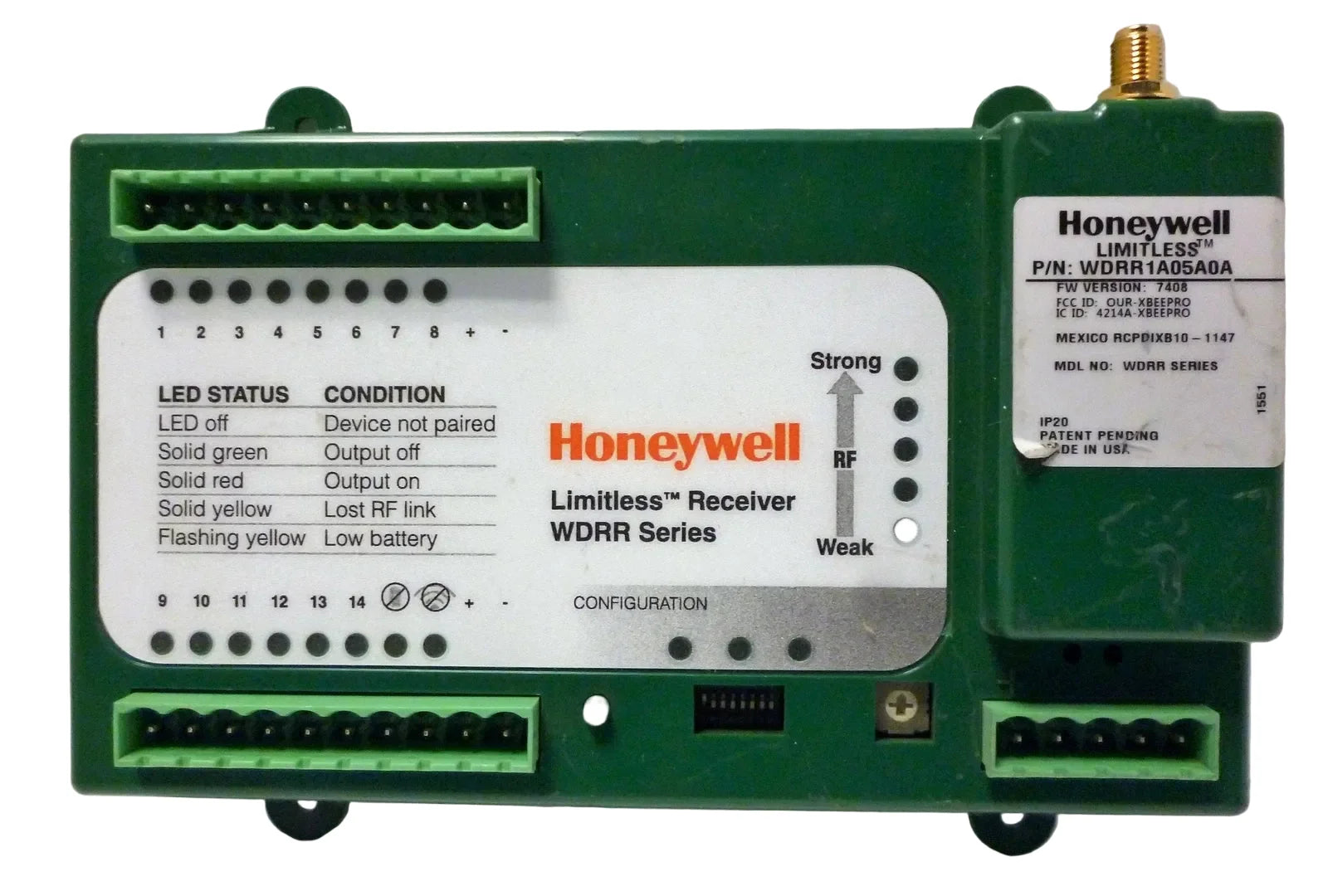

The Honeywell WDRR1A05A0A is a wireless receiver module designed for industrial limit switch and control applications. It operates on a 10 to 28 VDC supply and supports wireless communication using the 2.4 GHz 802.15.4 protocol. The unit provides relay output functionality for integration into industrial automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
WDRR1A05A0A |
| Subcategory |
Limit Switch |
| Series |
WDRR |
| Product Type |
Wireless Receiver |
| Function |
Receiver, Relay |
| Communication Protocol |
802.15.4 |
| Frequency |
2.4 GHz |
| Supply Voltage |
10 to 28 VDC |
| Output Type |
Relay |
| Maximum DC Contact Current |
500 mA |
| Interface |
Screw Terminals |
| Encryption |
128-Bit Secure Data |
| Dimensions (L × W × H) |
152.4 mm × 97.536 mm × 45.72 mm |
| Weight |
1.00 lbs |
Information About WDRR1A05A0A
The WDRR1A05A0A belongs to the Honeywell WDRR series of wireless receiver units developed for industrial wireless switching systems. It functions as a receiver with relay output, enabling remote actuation and monitoring without hardwired signal connections. The device operates within a supply voltage range of 10 to 28 VDC and communicates over a 2.4 GHz frequency band using the 802.15.4 protocol. Designed for industrial environments, it includes screw terminal interfaces for secure electrical connections and supports encrypted wireless data transmission.
Key Features:
-
Wireless Receiver Function: Designed to receive signals from compatible wireless transmitters.
-
802.15.4 Communication Protocol: Operates on 2.4 GHz industrial wireless frequency.
-
Relay Output Capability: Provides switching output for control circuits.
-
10 to 28 VDC Supply Range: Compatible with common industrial DC systems.
-
500 mA DC Contact Rating: Supports moderate DC load switching.
-
Screw Terminal Interface: Ensures secure and reliable wiring connections.
-
128-Bit Data Encryption: Supports secure wireless communication.
-
Industrial Application Design: Suitable for automation and wireless limit switch systems.
The WDRR1A05A0A delivers the reliability and precision required for wireless signal reception and relay-based control in industrial automation environments.
