Description

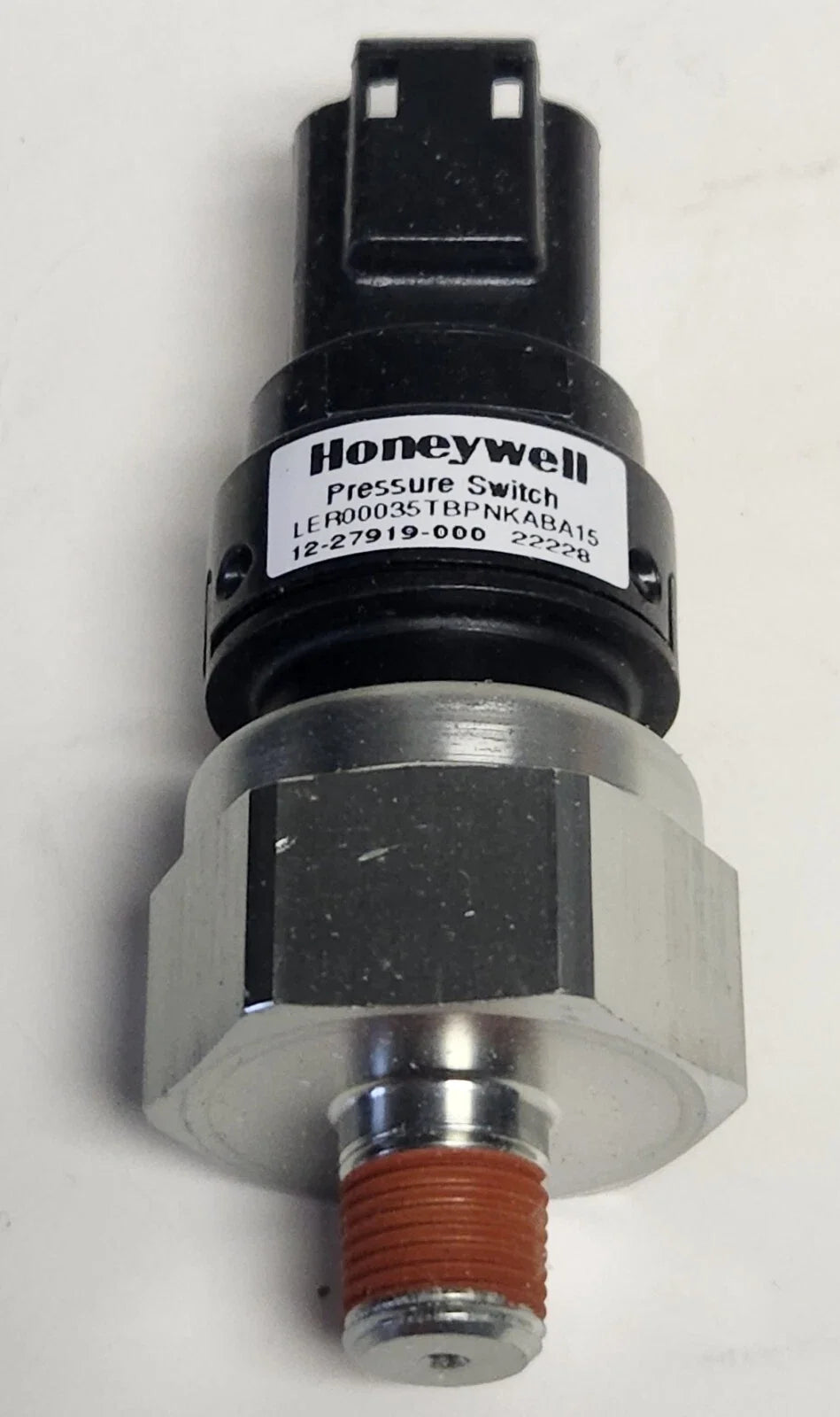

The Honeywell LER00035TBPNKABA15 is an industrial-grade gauge pressure switch designed for automation systems requiring low-pressure actuation. It operates at a setpoint of 3.5 PSI and uses an SPST-NO output configuration. Built for durability, it is equipped with a 1/8" NPT male threaded port and Deutsch 2-pin termination for easy installation in harsh environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell Sensing and Productivity Solutions |
| Category |
Sensors & Switches |
| Part Number |
LER00035TBPNKABA15 |
| Subcategory |
Pressure Switches |
| Series |
LE |
| Pressure Type |
Gauge |
| Operating Pressure |
3.5 PSI (24.13 kPa) |
| Maximum Pressure |
500 PSI (3447.38 kPa) |
| Output Type |
SPST-NO |
| Accuracy |
±2% |
| Termination Style |
Deutsch, 2 Pin |
| Port Size |
1/8" NPT Male (3.18 mm) |
| Port Style |
Threaded |
| Operating Temperature |
-40°C to 120°C |
| Packaging |
Bulk |
| Part Status |
Active |
| Package / Case |
Cylinder, Threaded |
| Applications |
Industrial Automation |
| Weight |
2.60 lbs |
Information About LER00035TBPNKABA15
The LER00035TBPNKABA15 belongs to Honeywell's LE series of pressure switches, engineered for performance in demanding industrial automation applications. This model offers a normally open single-pole single-throw output and is rated for a maximum pressure of up to 500 PSI. Its threaded cylindrical package and Deutsch connector support robust mechanical and electrical connections. Operating across a wide temperature range of -40°C to 120°C, it is suited for use in hydraulic, pneumatic, and process control systems.
Key Features:
- Low Pressure Activation: Set to operate at 3.5 PSI (24.13 kPa) for sensitive control tasks.
- SPST-NO Output: Single-pole single-throw normally open contact for simple circuit integration.
- Wide Operating Range: Withstands up to 500 PSI and functions from -40°C to 120°C.
- Threaded Port Design: 1/8" NPT male connection ensures secure fitting in industrial piping.
- Reliable Termination: Deutsch 2-pin connector offers durable electrical connection.
- Compact Cylindrical Housing: Ideal for integration into tight system layouts.
- ±2% Accuracy: Ensures consistent switching performance under dynamic conditions.
The LER00035TBPNKABA15 delivers the precision and reliability required for automated low-pressure switching in rugged industrial environments.
