Description

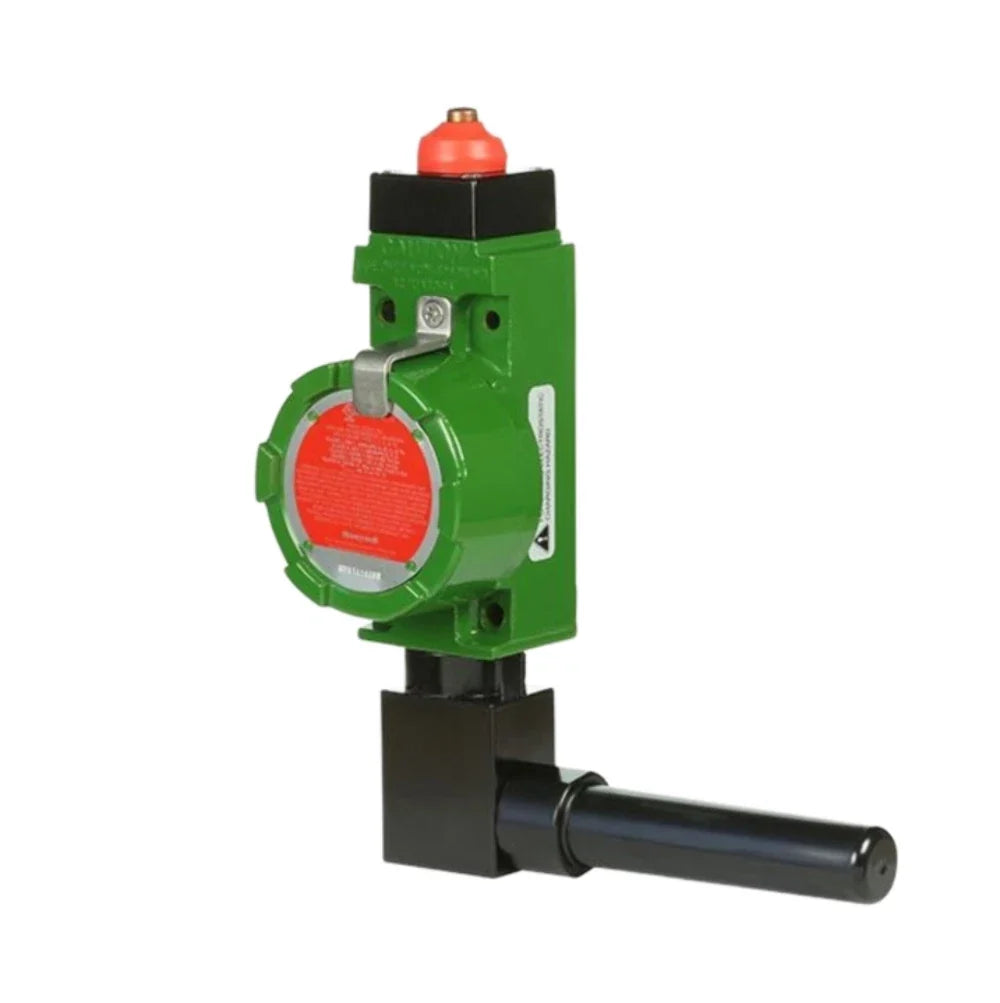

The Honeywell WBX1A14ABC is a wireless limit switch from the Limitless™ WBX Series designed for industrial position sensing applications. It features a round pin plunger actuator and SPDT contact configuration with momentary switching action. The unit is rated IP67 for dust-tight and waterproof protection and operates within a temperature range of -40°C to 70°C.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Sensors & Switches |
| Part Number |
WBX1A14ABC |
| Subcategory |
Limit Switch |
| Series |
WBX (Limitless™) |
| Circuit |
SPDT |
| Switch Function |
On-Momentary |
| Actuator Type |
Round Pin Plunger |
| Operating Force |
20.02 N (2041 gf) |
| Operating Position |
57.94 mm (2.281") |
| Pretravel |
1.78 mm (0.070") |
| Differential Travel |
0.5 mm (0.020") |
| Overtravel |
4.8 mm (0.190") |
| Ingress Protection |
IP67 |
| Operating Temperature |
-40°C to 70°C |
| Mounting Type |
Chassis Mount |
| Termination Style |
Wireless |
| RoHS Compliant |
Yes |
| Weight |
3.00 lbs |
Information About WBX1A14ABC
The WBX1A14ABC belongs to Honeywell’s Limitless™ WBX Series, combining heavy-duty mechanical limit switch design with wireless communication capability. It is designed for chassis mounting and utilizes a round pin plunger actuator for mechanical actuation. The device operates with an actuation force of approximately 20.02 N (2041 gf) and provides SPDT momentary switching functionality. Engineered for industrial environments, it offers IP67 ingress protection and supports operation in a wide temperature range for reliable outdoor or harsh-duty installations.
Key Features:
-
Wireless Limit Switch Design: Supports remote position sensing without hardwired connections.
-
SPDT Circuit Configuration: Single pole double throw contact arrangement.
-
Pin Plunger Actuator: Round plunger for mechanical actuation.
-
20.02 N Operating Force: Defined actuation force for consistent switching.
-
IP67 Protection Rating: Dust-tight and waterproof enclosure.
-
Wide Operating Temperature Range: Functions from -40°C to 70°C.
-
Chassis Mount Installation: Designed for fixed industrial mounting.
-
WBX Series Platform: Part of Honeywell Limitless™ wireless switch family.
The WBX1A14ABC delivers the reliability and precision required for wireless position sensing and industrial limit detection applications.
