Description

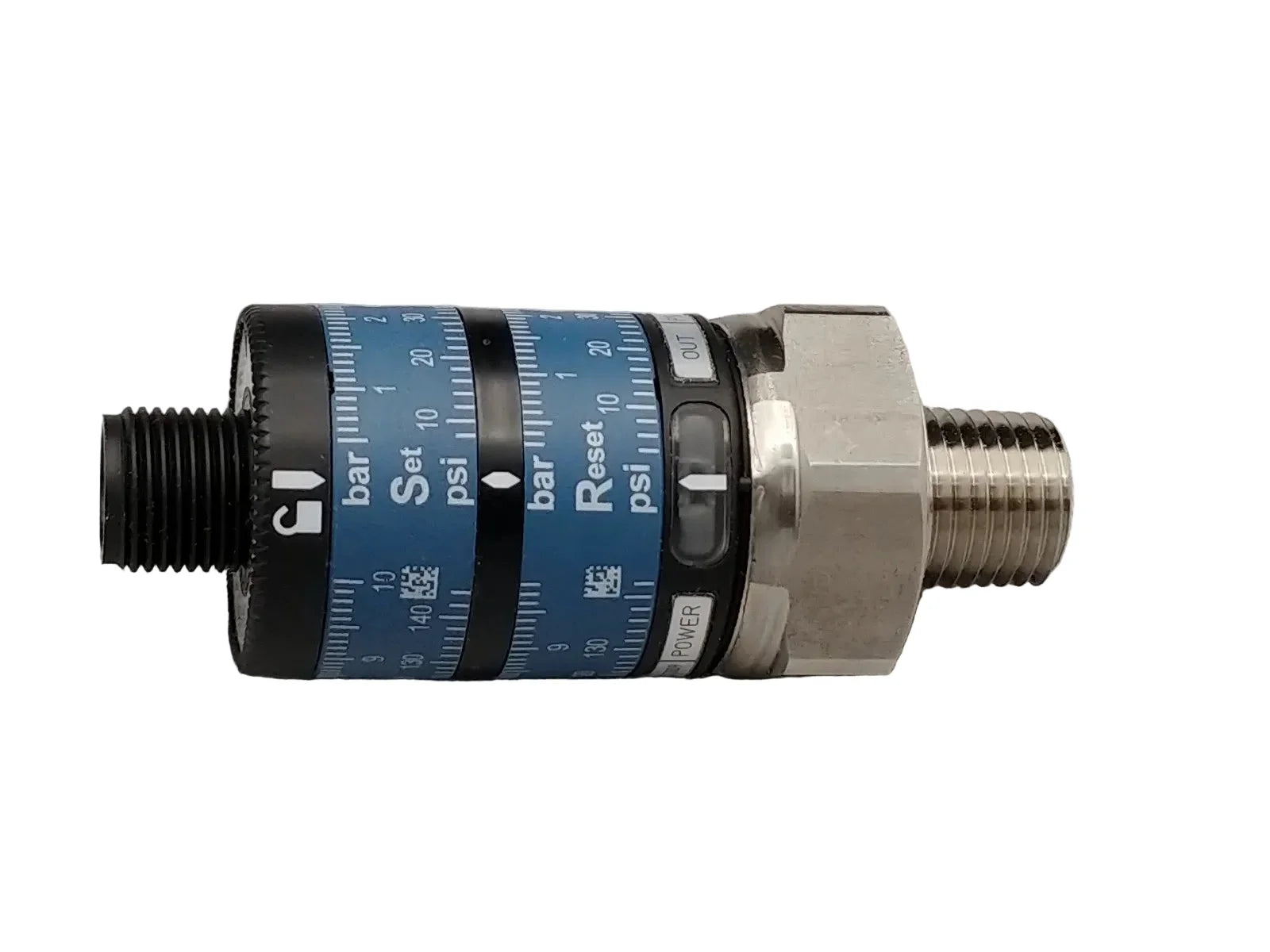

The Automation Direct PSD25-0P-0145H is a ProSense electronic pressure switch designed for monitoring air and gas pressure in industrial systems. It provides a setpoint range of 7.5 to 145 psi with PNP complementary switching outputs for reliable control signaling. Constructed with stainless steel wetted parts and a 316 stainless steel sensing element, it is suited for demanding pneumatic applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Sensors |
| Part Number |
PSD25-0P-0145H |
| Subcategory |
Electronic Pressure Switches |
| Series |
ProSense PSD25 |
| Media Type |
Air and gases |
| Setpoint Range |
7.5 to 145 psi |
| Wetted Parts Material |
Stainless steel |
| Sensing Element Material |
316 stainless steel |
| Switching Output |
PNP, N.O./N.C. complementary |
| Operating Voltage |
9.6–32 VDC |
| Process Connection |
1/4 in male NPT |
| Electrical Connection |
4-pin M12 quick-disconnect |
| Indication Type |
LED indication |
| IP Rating |
IP67 |
| Enclosure Type |
Compact industrial housing |
| Additional Information |
Purchase cable separately |
| Weight |
0.3 lb |
Information About PSD25-0P-0145H
The PSD25-0P-0145H is part of the ProSense PSD25 series of compact electronic pressure switches engineered for air and gas measurement. It features a durable stainless steel sensing element and wetted components to ensure long-term performance in industrial environments. The unit operates on 9.6–32 VDC and provides PNP normally open/normally closed complementary outputs for flexible integration with control systems. Designed with a 1/4-inch male NPT process connection and 4-pin M12 quick-disconnect electrical interface, it supports convenient installation and maintenance while maintaining an IP67 protection rating.
Key Features:
- Wide Pressure Range: Adjustable setpoint range from 7.5 to 145 psi for air and gas applications.
- Stainless Steel Construction: 316 stainless steel sensing element and wetted parts for durability and corrosion resistance.
- PNP Complementary Output: Provides normally open and normally closed switching outputs.
- 9.6–32 VDC Operation: Compatible with common industrial DC control voltages.
- LED Status Indication: Integrated LED for visual operating and switching status feedback.
- IP67 Protection Rating: Sealed design for resistance to dust and temporary water immersion.
- Standard Process Connection: 1/4-inch male NPT fitting for pneumatic system integration.
- M12 Quick-Disconnect: 4-pin electrical connection for simplified wiring (cable sold separately).
The PSD25-0P-0145H delivers the reliability and precision required for industrial air and gas pressure monitoring and control applications.
