Description

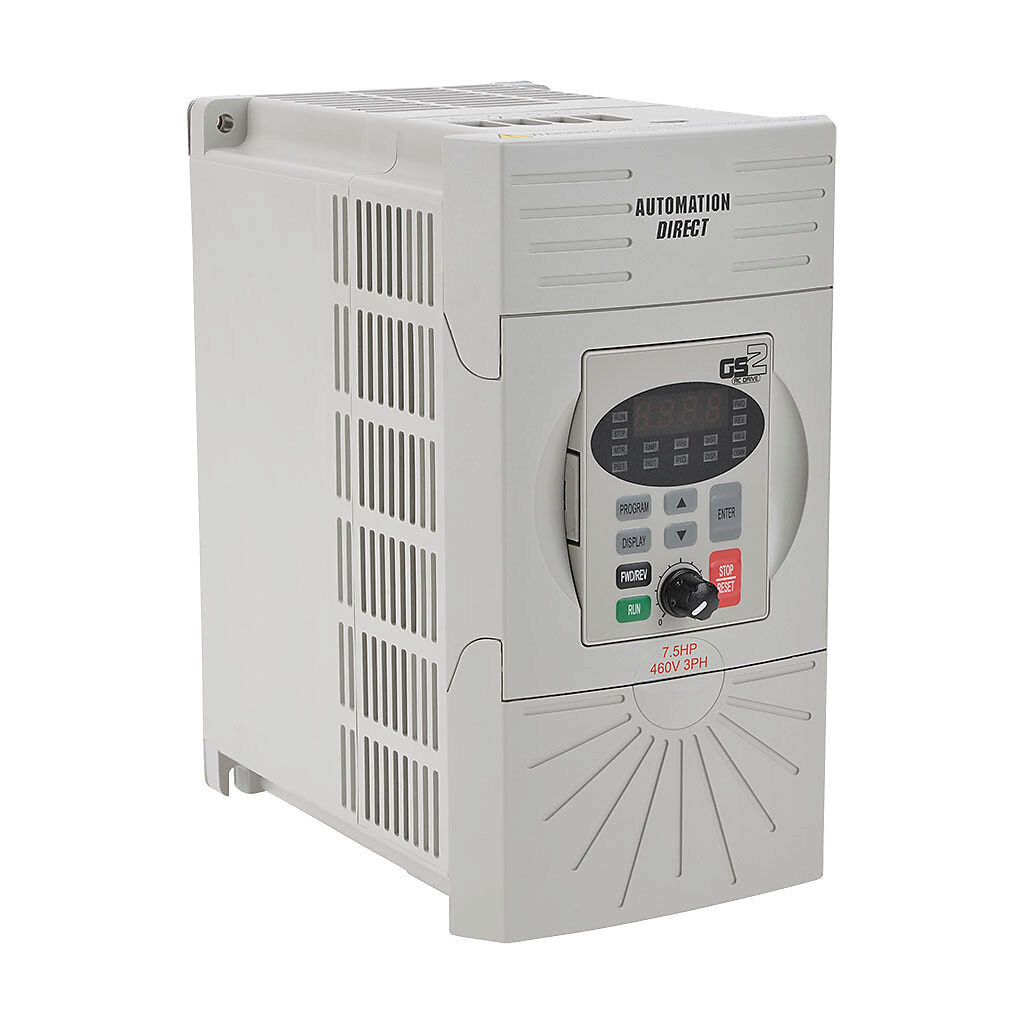

The Automation Direct GS2-47P5 is a GS2 series AC micro drive rated for 7-1/2 horsepower operation at 380–480 VAC with three-phase input power. It operates in V/Hz control mode and includes integrated dynamic braking for controlled motor deceleration. This enclosed B-frame drive is designed to provide reliable speed regulation for industrial three-phase motor applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Drives |
| Part Number |
GS2-47P5 |
| Subcategory |
AC Variable Frequency Drives |
| Series |
GS2 |
| Drive Type |
AC Micro Drive |
| Rated Power |
7-1/2 HP |
| Input Voltage |
380–480 VAC |
| Input Phase |
3-Phase |
| Input Frequency |
50/60 Hz |
| Rated Current |
14 A |
| Control Mode |
V/Hz |
| Communication Ports |
RS-232, RS-485 |
| Communication Protocol |
Modbus |
| Dynamic Braking |
Integrated |
| Short Circuit Current Rating (SCCR) |
5kA |
| Frame Size |
B Frame |
| Enclosure Type |
Enclosed |
| Application |
Industrial Motor Speed Control |
| Weight |
11.8 lb |
Information About GS2-47P5
The GS2-47P5 is part of the Automation Direct GS2 family of compact variable frequency drives engineered for general-purpose motor control in industrial environments. It supports 380–480 VAC, 50/60 Hz, three-phase input and is rated for 14 A operation in 7.5 HP applications. The drive incorporates RS-232 and RS-485 communication interfaces with Modbus protocol support, enabling integration into PLC and supervisory automation networks. With a 5kA SCCR rating and enclosed B-frame construction, it is suitable for panel-mounted installations in manufacturing and process systems.
Key Features:
- 7-1/2 HP Output Rating: Designed for medium-duty industrial motor control applications.
- 380–480 VAC Three-Phase Input: Compatible with high-voltage industrial power systems.
- 14 A Rated Current: Supports stable operation under rated load conditions.
- V/Hz Control Mode: Provides consistent speed and torque regulation.
- Integrated Dynamic Braking: Enables controlled stopping without external braking hardware.
- RS-232 / RS-485 Communication: Supports configuration and monitoring via serial connection.
- Modbus Protocol Support: Allows integration with PLC-based automation networks.
- 5kA SCCR Rating: Suitable for compliant control panel installations.
The GS2-47P5 delivers the reliability and precision required for industrial variable frequency motor speed control in high-voltage applications.
