Description

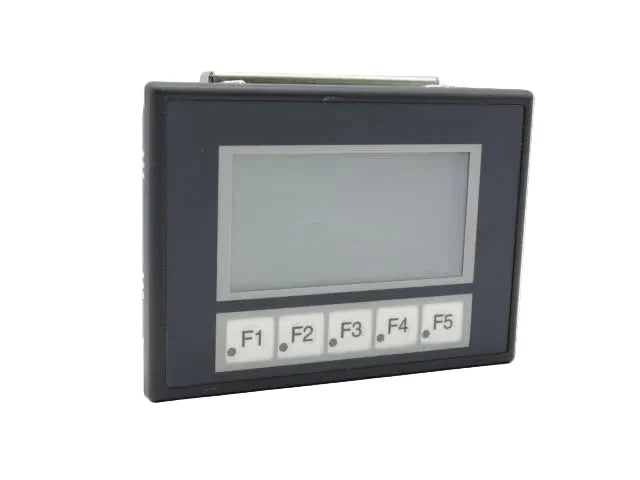

The Automation Direct EA1-S3ML-N is a 3.1-inch monochrome micro-graphic display panel designed for compact PLC interface applications. It features a 128 x 64 pixel STN LCD with LED backlighting for clear data presentation. This unit supports one serial communication port for integration with compatible PLC systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Human Machine Interface (HMI) |
| Part Number |
EA1-S3ML-N |
| Subcategory |
Micro-Graphic Display Panels |
| Display Size |
3.1 Inch |
| Display Type |
Monochrome STN LCD |
| Resolution |
128 x 64 Pixels |
| Backlight |
LED |
| Communication Ports |
(1) Serial Port |
| Mounting Type |
Panel Mount |
| Application |
PLC Status Monitoring and Control |
| Weight |
0.9 lb |
Information About EA1-S3ML-N
The EA1-S3ML-N is part of Automation Direct’s micro-graphic display family, engineered for space-constrained control panels requiring basic visualization and operator interaction. It incorporates a 3-inch monochrome STN LCD capable of displaying graphical and text-based information at 128 x 64 resolution. The LED backlight enhances readability in industrial environments with variable lighting conditions. Designed with a single serial port, the panel connects to PLCs and controllers to provide status monitoring and limited control functionality.
Key Features:
- 3.1-Inch Monochrome Display: Compact format for small control panel applications.
- 128 x 64 Pixel Resolution: Supports clear graphical and alphanumeric display.
- STN LCD Technology: Provides stable and reliable screen performance.
- LED Backlight: Improves visibility in industrial environments.
- Single Serial Port Support: Enables communication with compatible PLC systems.
- Panel Mount Design: Suitable for installation in control cabinets.
- Micro-Graphic Interface Capability: Displays system data, alarms, and operational information.
The EA1-S3ML-N delivers the reliability and precision required for compact PLC monitoring and basic operator interface applications.
