Description

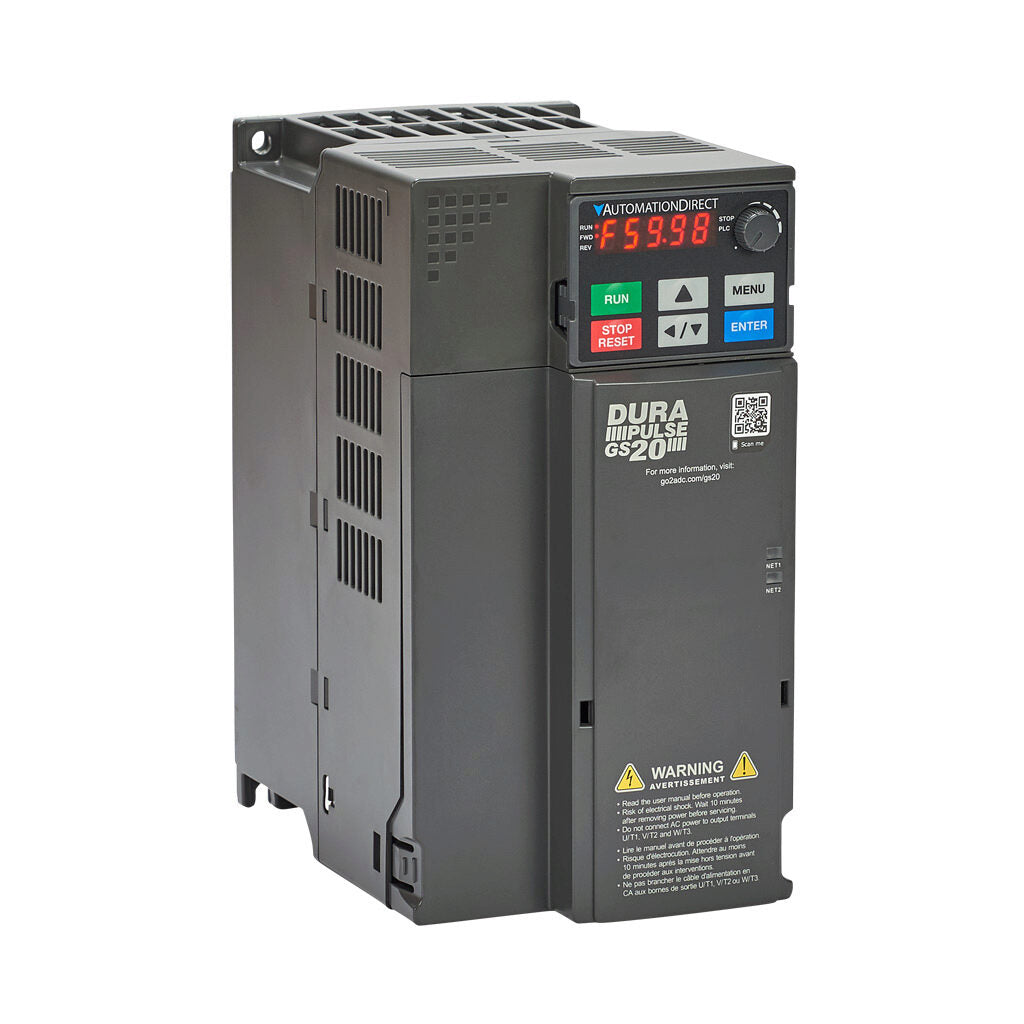

The Automation Direct GS23-27P5 is a general purpose AC drive rated for 7-1/2 horsepower operation at 230 VAC with three-phase input power. It supports SVC, V/Hz, and FOC torque control modes for advanced motor performance and precision regulation. This enclosed D-frame drive is designed for high-demand industrial applications requiring flexible control and network connectivity.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Drives |
| Part Number |
GS23-27P5 |
| Subcategory |
AC Variable Frequency Drives |
| Series |
GS23 |
| Drive Type |
General Purpose AC Drive |
| Rated Power |
7-1/2 HP |
| Input Voltage |
230 VAC |
| Input Phase |
3-Phase |
| Control Modes |
SVC, V/Hz, FOC (Torque Mode) |
| Frame Size |
D Frame |
| Communication |
RS-485 (Modbus) |
| Optional Communication |
Ethernet/IP, Modbus TCP (Optional Cards) |
| Short Circuit Current Rating (SCCR) |
100kA |
| Enclosure Type |
Enclosed |
| Application |
Industrial Motor Speed and Torque Control |
| Weight |
18.5 lb |
Information About GS23-27P5
The GS23-27P5 is part of the Automation Direct GS23 series of variable frequency drives engineered for enhanced motor control versatility. It operates on 230 VAC three-phase input and provides selectable control modes including Sensorless Vector Control (SVC), traditional V/Hz, and Field Oriented Control (FOC) for torque-sensitive applications. The drive includes built-in RS-485 communication with Modbus protocol support and offers optional Ethernet/IP and Modbus TCP communication cards for expanded network integration. With a 100kA SCCR rating and enclosed D-frame construction, it is suitable for robust industrial panel installations.
Key Features:
- 7-1/2 HP Output Rating: Designed for medium to high-power motor applications.
- 230 VAC Three-Phase Input: Compatible with industrial three-phase power systems.
- Multiple Control Modes: Supports SVC, V/Hz, and FOC (Torque Mode) operation.
- RS-485 Communication: Integrated serial interface for configuration and monitoring.
- Modbus Protocol Support: Enables PLC and automation network integration.
- Optional Ethernet/IP & Modbus TCP: Expandable communication capability via add-on cards.
- 100kA SCCR Rating: Suitable for high fault-current industrial environments.
- Enclosed D-Frame Design: Built for panel-mounted industrial installations.
The GS23-27P5 delivers the reliability and precision required for advanced industrial motor speed and torque control applications.
