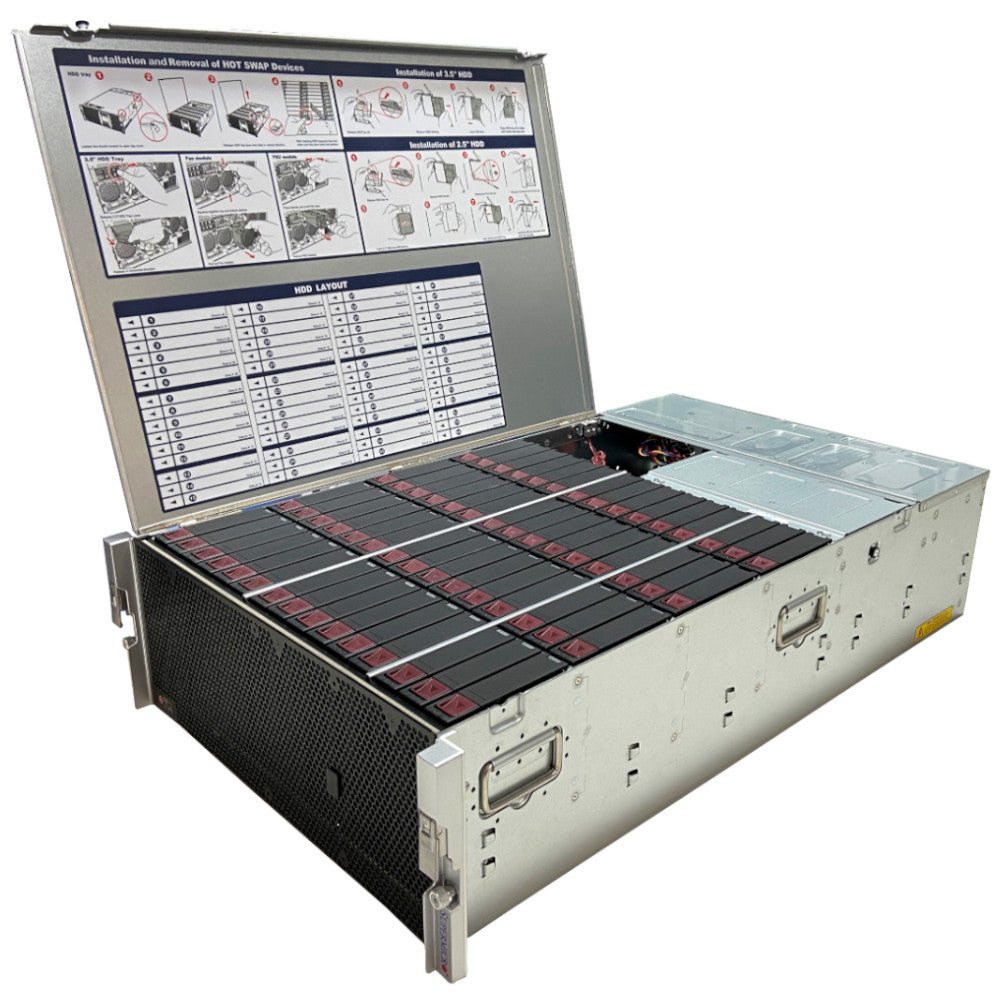

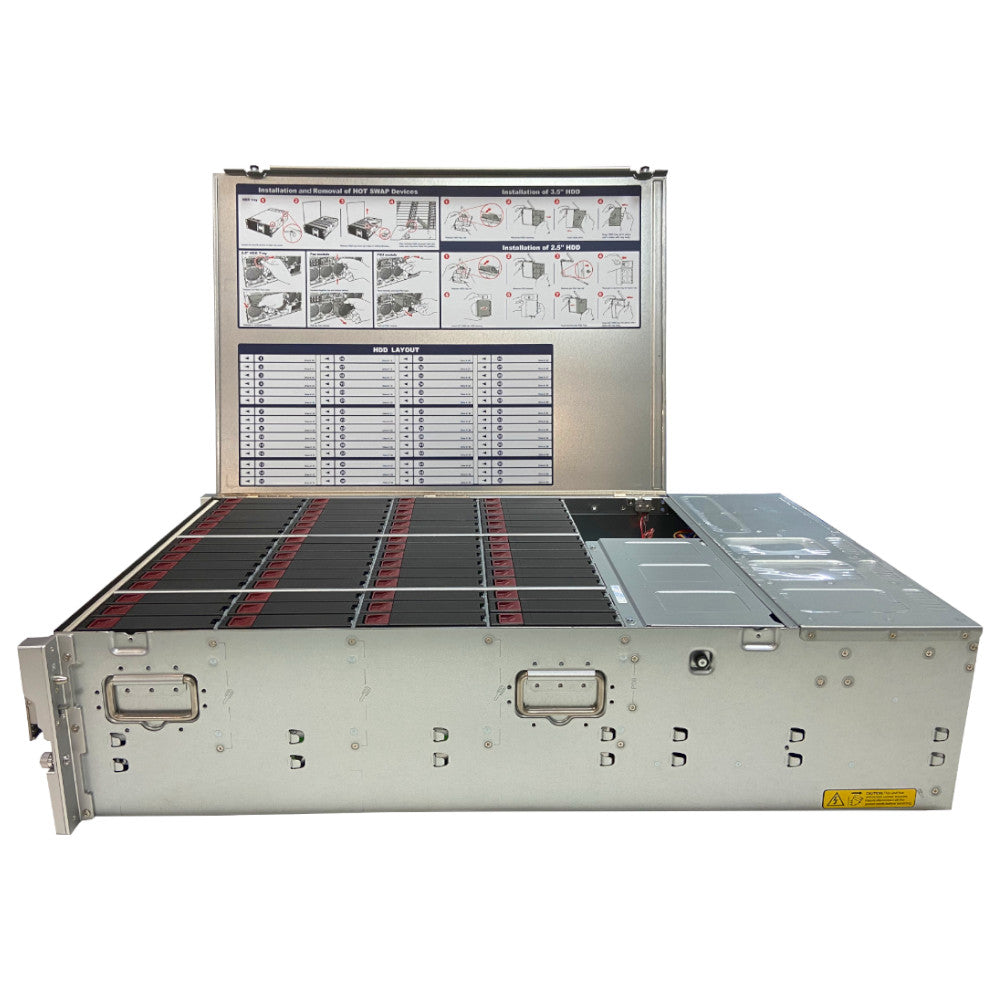

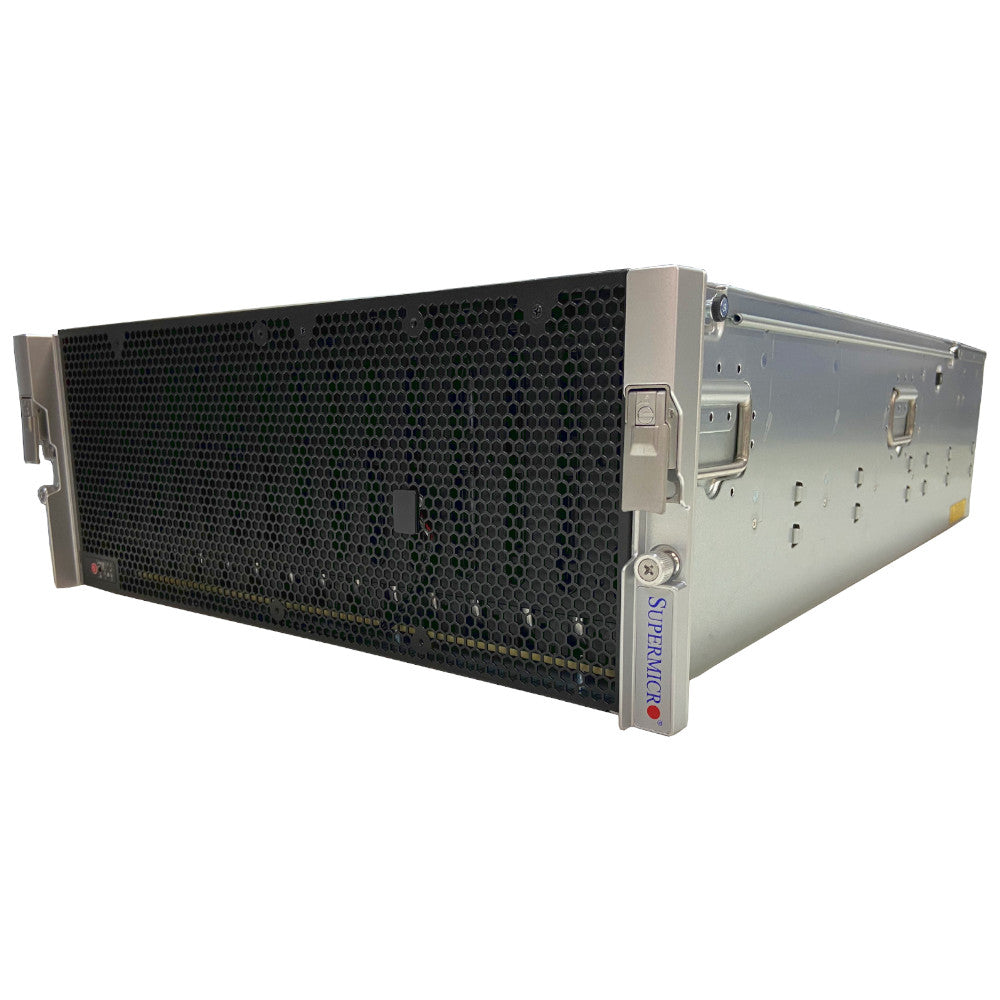

Supermicro SC946 60-Bay SATA/SAS JBOD 4U Top-Load Enterprise Disk Shelf Storage Enclosure - 946SE1C-R1K66JBOD

Supermicro SC946 60-Bay SATA/SAS JBOD 4U Top-Load Enterprise Disk Shelf Storage Enclosure - 946SE1C-R1K66JBOD

Request a Quote — Bulk Pricing US-based specialists — price & lead time within 24h

Price on request. US-based distributor (Wellington, FL) — a specialist replies within 24 hours. Purchase Orders accepted.

Genuine / Original / Compatible
New & Refurbished
Purchase Orders Accepted
24-Hour Quotes

Share this product

Supermicro SC946 JBOD 4U 60-Bay SC946SE1C-R1K66 CSE-946SE1C-R1K66JBOD

Highlights

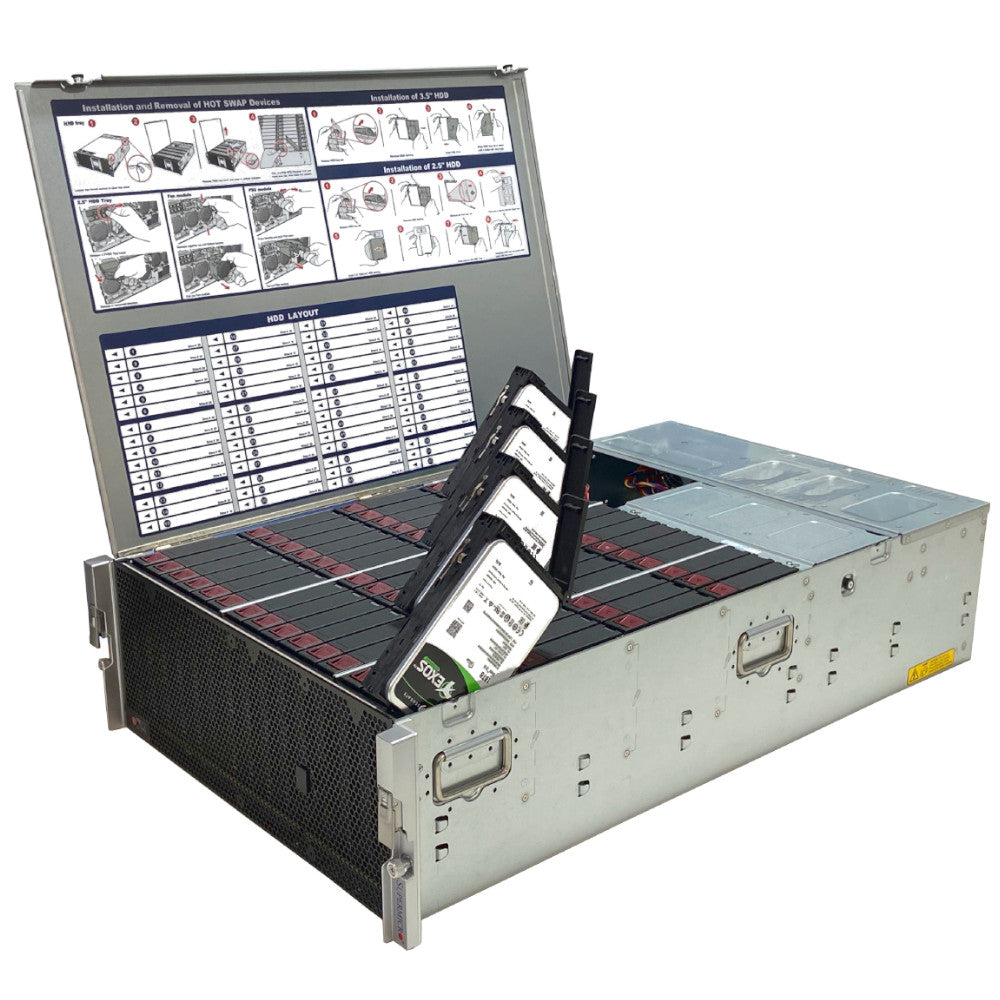

Support 60 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HDD/SSD Bays
Tool-less HDD tray with HDD LED indicator
Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
1x IPMI port for Remote System Power on/off and system monitoring
Support NTP for time synchronization & RTC battery backup

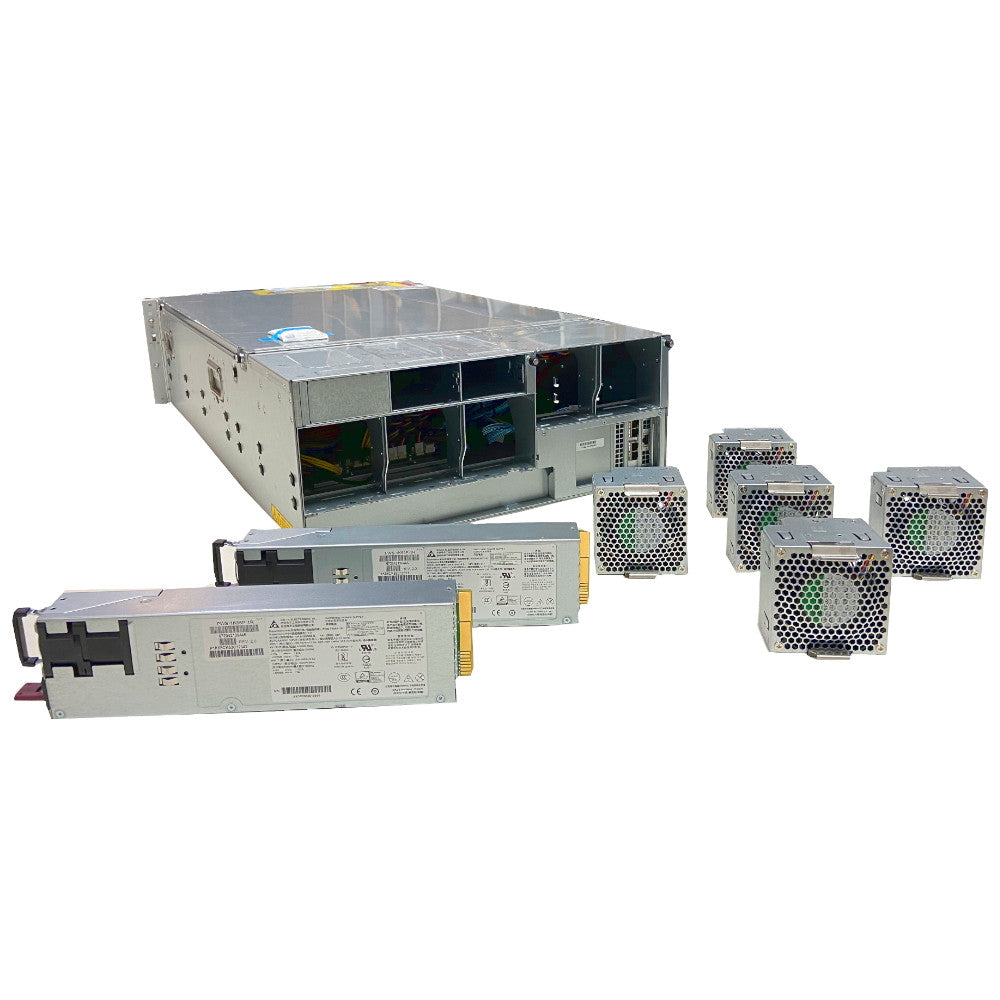

1600W (1+1) Redundant High-efficiency Platinum Level Power Supplies
Optimized cooling w/ 5x 80x38mm rear hot-swap fans
Ideal for Cloud backup, data Replication or High density Archive Storage Applications

Manual: 4U SC946 JBOD

Manufacturer Product Page: SuperChassis 946 SC946SE1C-R1K66JBOD

Note: Many configurations available, contact us via email or call us for custom config. options.

Max. Drives	60 x 3.5in drive bays
Drive Interface	12Gb/s SAS 6Gb/s SATA
Host Interface	4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
Weight	Net Weight: 100 lbs (45.36 kg) Gross Weight: 155 lbs (70.31 kg)
LED Indicators	1 Network Activity LEDs Power Status LED Power Fail LED System Information LED
Physical Dimensions	Height: 7 in (178 mm) Width: 17.2 in (437 mm) Depth: 30.2 in (767.08 mm)
Management	1x IPMI port for Remote System Power on/off and system monitoring
Power	1600W redundant power supply, Platinum level with PMBus & I2C 1000W with Input 100 - 127Vac 1600W with Input 200 - 240Vac
Cooling	5 x 80mm rear hot-swap exhaust PWM fan(s)
Environmental	Operating Temperature: 5 C to 35 C Non-op Temperature: -40 to 60 C Operating Humidity: 8 to 90% relative humidity (non-condensing)
Serviceability	Tool-less HDD trays with HDD LED indicator, Top Loading Drive Bays

Standard Parts List
	Part Number	Qty	Description
Bracket	MCP-120-84702-0N	1	CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF
Bracket	MCP-120-84705-0N	1	LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF
Bracket	MCP-320-94601-0N	1
Bracket	MCP-320-94602-0N	1
HD Backplane	BPN-SAS3-946SEL1	2	30-port 4U 946S Top-load SAS3 12Gbps single-expander midplane, support up to 30x 3.5-inch SAS3/SATA3 HDD/SSD
Control Board	CSE-PTJBOD-CB3	1	JBOD chassis power control board with IPMI remote on/off feature
Cable(s)	CBL-0087	1	CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
Cable(s)	CBL-0160L	2	US POWER CORD 16AWG, PB FREE
Cable(s)	CBL-0303L	1	4PIN POWER CABLE, ST TO RA, 40CM
Cable(s)	CBL-0459L	2	AC Power Cord Latch Clamp
Cable(s)	CBL-CDAT-0601	2	4 Pin to 4 Pin I2C cable, 50cm, 26AWG
Cable(s)	CBL-NTWK-0587	1	INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD
Cable(s)	CBL-PWCD-0578-1	2	PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
Cable(s)	CBL-PWCD-0578-IS	2	PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
Cable(s)	CBL-PWEX-0861	1	Powerlug to 5.7 Radsok, black 12AWG, 32cm for SC946S
Cable(s)	CBL-PWEX-0862	1	Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S
Cable(s)	CBL-PWEX-0863	1	Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S
Cable(s)	CBL-PWEX-0864	1	Powerlug to 5.7 Radsok, yel 12AWG, 53cm for SC946S
Cable(s)	CBL-SAST-0833	2	SLIMLINE SAS, INT, 55MM, 32AWG
Cable(s)	CBL-SAST-0834	2	SLIMLINE SAS to MiniSAS HD, INT, 50CM, 32AWG
Cable(s)	CBL-SAST-0835	2	SLIMLINE SAS to MiniSAS HD, INT, 100CM, 32AWG
Part(s)	MCP-270-94602-0N	1
Part(s)	MCP-290-00135-0V	1	4U Auto-latch left handle
Part(s)	MCP-290-00136-0V	1	4U Auto-latch right handle
Part(s)	MCP-290-94606-0N	1
Part(s)	MCP-290-94607-0N	1
Part(s)	MCP-210-94604-0N	1	SC946S/L front bezel bracket
Part(s)	MCP-220-94604-0N	1	SC946S Motherboard tray
Part(s)	MCP-230-94603-0N	1
Part(s)	MCP-240-94602-0N	3
Part(s)	MCP-120-00062-0N	3	Blank LP L-bracket (5x5 square hole)
Fan(s)	FAN-0184L4	5	80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay)
Front Panel	FPB-FP829H	1	Front Control Board for SC829H chassis
Drive Tray(s)	MCP-220-94601-0N	60	SC946ED 3.5" / 2.5" tool-less HDD tray
Power Distributor	PDB-PT946S-L824	1	4U PDB support over 2KW for SC946S and 45bay system.,RoHS
Power Supply & Accessory	PWS-1K66P-1R	2	1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF
Mounting Rail(s)	MCP-290-00133-0N	1	Cable Management Arm, 2U height, 4
Mounting Rail(s)	MCP-290-00137-0N	1	Rail set, Auto-latch, quick/quick, default 4U 17.2";W
Rear Window	MCP-240-94604-0N	1	SC946S rear window, NO I/O. w/ 3x LP slots

Optional Parts List
	Part Number	Qty	Description
Adaptor Bracket	MCP-290-00166-0N	1	Threaded rail adapter, auto latch, for round hole rack,RoHS
Cable	CBL-SAST-0677	-	3m 12G external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH
	CBL-SAST-0690-1	-	MINI SAS HD,12G,EXT,2M,30AWG,RoHS
