Description

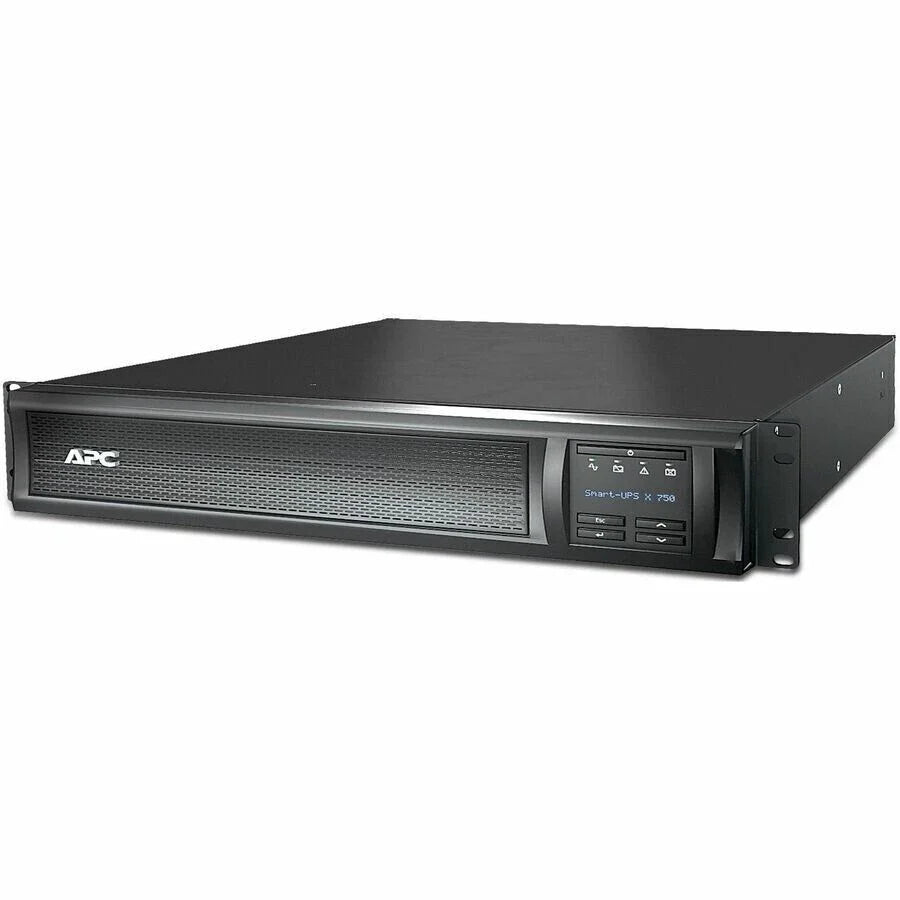

The Schneider Electric APC SMX750C is a line-interactive Smart-UPS designed to provide reliable power protection for critical IT and network equipment. It supports rack or tower installation in a compact 2U form factor and delivers pure sine wave output at 120 volts.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Schneider Electric / APC |
| Category |
Power Protection |
| Part Number |
SMX750C |
| Subcategory |
Uninterruptible Power Supplies |
| UPS Type |
Line Interactive |
| Rated Power (VA) |
750 VA |
| Rated Power (Watts) |
675 W |
| Input Voltage |
120 VAC, 1 Phase |
| Input Frequency |
50/60 Hz ±3 Hz Auto-Sensing |
| Input Connection |
NEMA 5-15P |
| Maximum Input Current |
12 A |
| Output Voltage |
120 VAC, 1 Phase |
| Output Frequency |
50/60 Hz ±3 Hz (Sync to Mains) |
| Output Waveform |
Sine Wave |

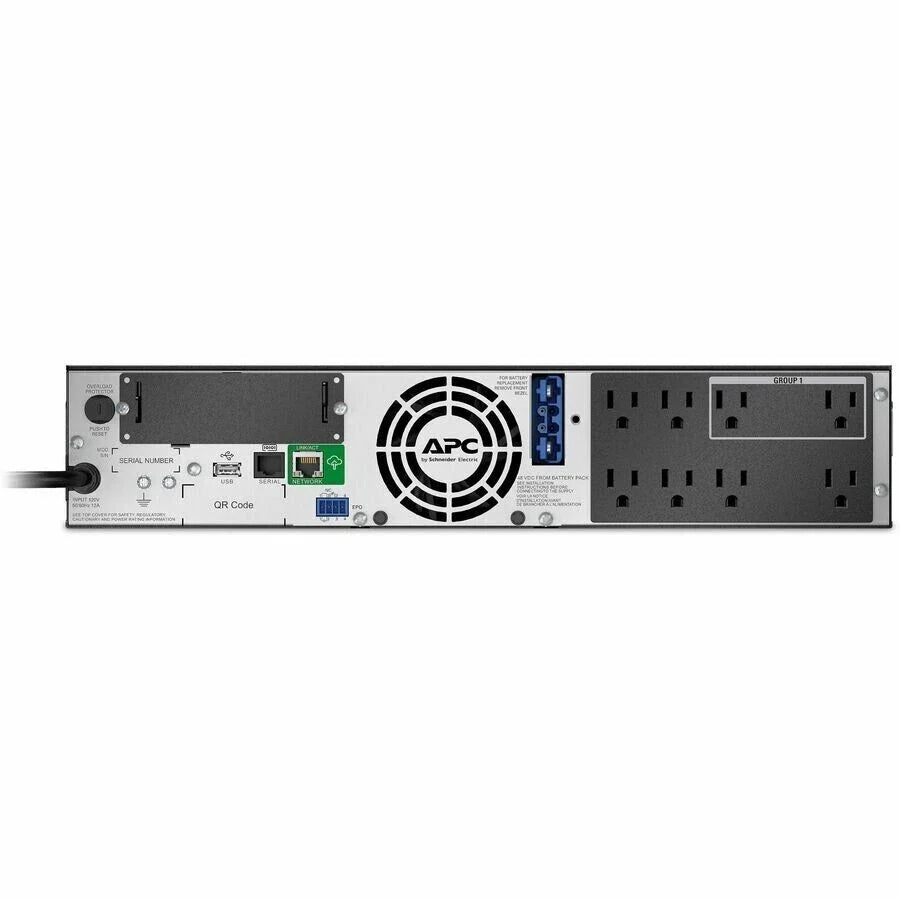

| Output Connections |
8 × NEMA 5-15R |
| Topology |
Line Interactive |
| Maximum Configurable Power |
750 VA / 675 W |
| Harmonic Distortion |
< 5% |
| Battery Type |
Internal Lead-Acid |
| Full Load Runtime |
11 min 30 sec @ 660 W |
| Half Load Runtime |
27 min @ 330 W |
| Emergency Power Off (EPO) |
Yes |
| Connectivity Ports |
USB, Serial, SmartConnect |
| Expansion Slot |
1 |
| Surge Energy Rating |
645 J |
| Rack Height |
2U |

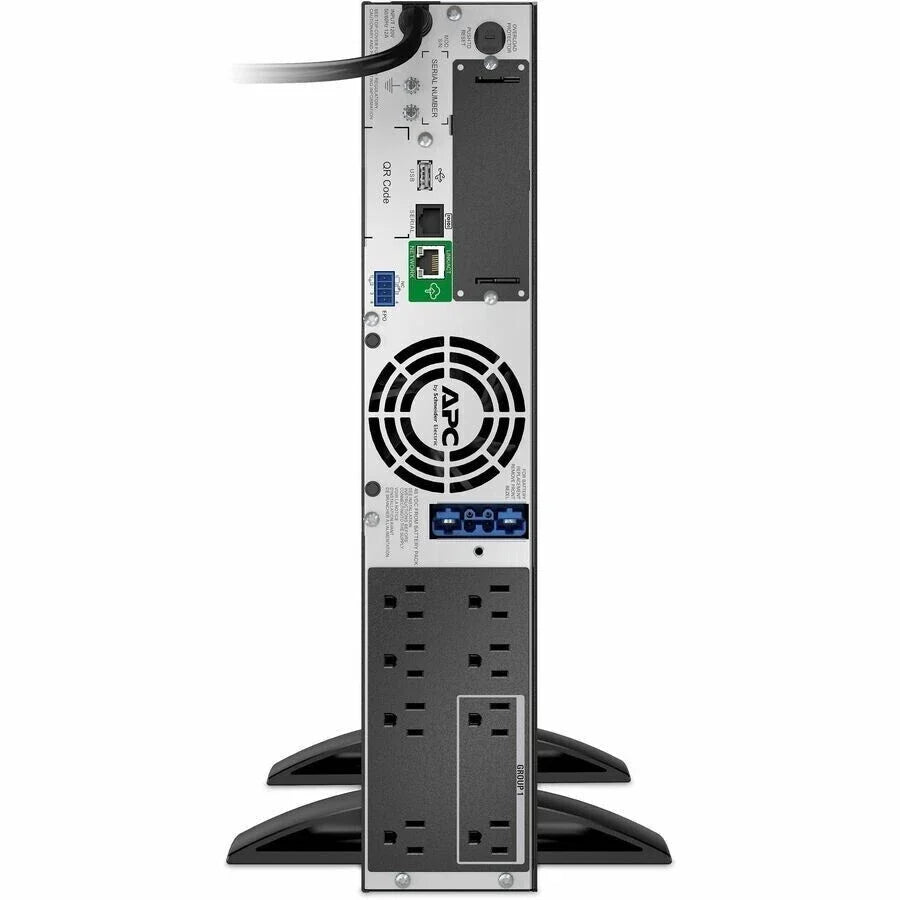

| Form Factor |
Rack / Tower Convertible |
| Cable Length |
8 ft (2.4 m) |
| Color |
Black |
| Dimensions (H x W x D) |
17.01 x 3.5 x 19.3 in |
| Weight |
48.61 lbs |
Information About SMX750C
The SMX750C is part of the Schneider Electric APC Smart-UPS X series, engineered for dependable power protection in server rooms, network closets, and industrial control environments. This UPS uses line-interactive topology to regulate voltage fluctuations while providing battery backup during outages. It supports extended runtime through external battery options and includes SmartConnect for cloud-based monitoring and management. The unit is designed for flexible deployment with rack or tower installation and advanced filtering to protect sensitive electronic equipment.
Key Features
- Line Interactive Topology: Regulates incoming voltage and provides battery backup with minimal transfer time during power disturbances.
- Pure Sine Wave Output: Ensures compatibility with sensitive electronics and power factor–corrected power supplies.
- Extended Runtime Capability: Supports additional external battery packs to increase backup time during prolonged outages.
- SmartConnect Monitoring: Enables cloud-based UPS status monitoring, notifications, and firmware updates.
- Rack/Tower Convertible Design: Supports flexible installation in 2U rack spaces or as a standalone tower unit.
- Comprehensive Connectivity: Includes USB, serial, and SmartConnect ports for local and remote management.
- Advanced Power Filtering: Provides continuous noise filtering and surge protection to safeguard connected equipment.
The SMX750C delivers the reliability and precision required for protecting critical equipment in professional IT and industrial power environments.
