Description

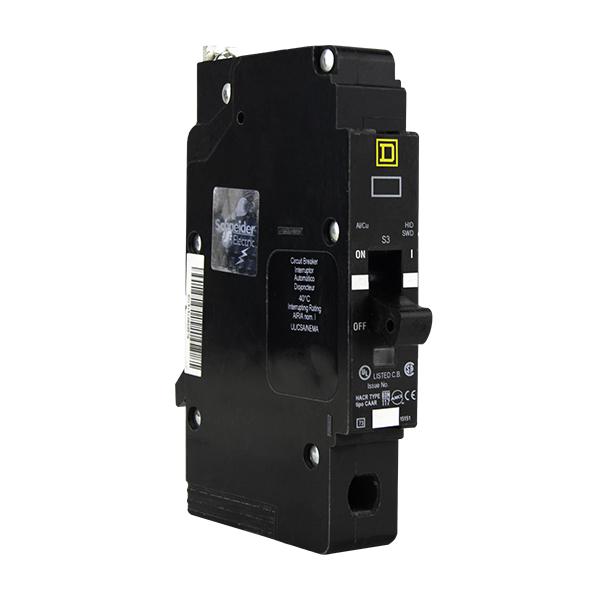

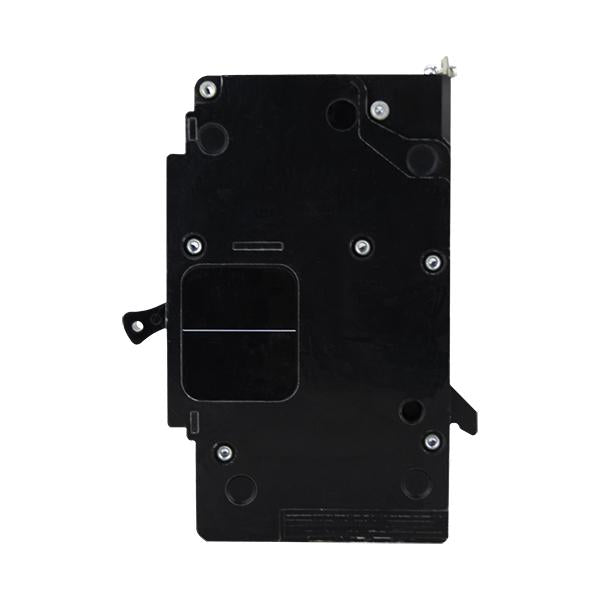

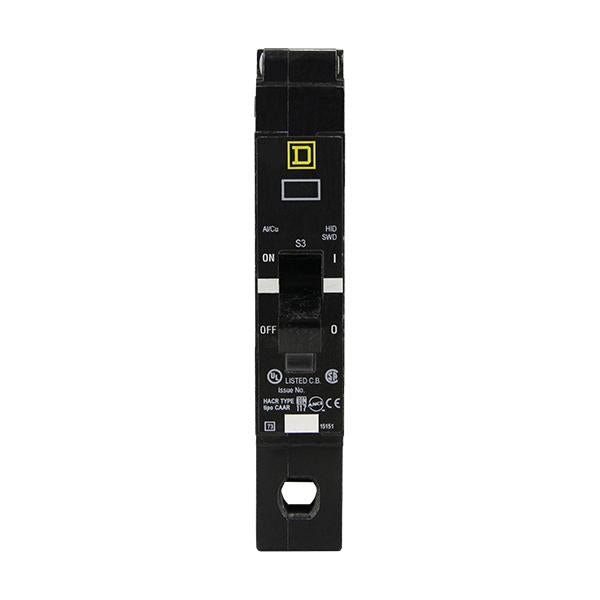

The Square D EGB14015EPD is a 1-pole molded case ground fault circuit breaker designed for reliable protection of electrical systems operating at 277 VAC. With a current rating of 15 amps and an interrupting capacity of up to 35kA, it provides effective overcurrent and ground fault protection for commercial and industrial applications. The EGB14015EPD ensures safe operation through its bolt-on mounting and thermal magnetic trip technology.





Technical Specifications



Condition	New/Never Used Surplus
Brand	Square D
Category	Circuit Breaker
Part Number	EGB14015EPD
Subcategory	Molded Case
Series	EGB
Frame Type	E-Frame
Poles	1
Amperage Rating	15A
Voltage Rating	277 VAC
Phase	1
Interrupting Rating	35kAIC at 120/240VAC
Trip Unit Type	Thermal Magnetic (LI)
Mounting Type	Bolt-On
Connection Type	Lugs, Aluminum
Ground Fault Protection	30mA
Standards	HID, HACR, cULus Certified
Wire Range	AWG 14–6 Cu/Al
Operating Temperature	-25°C to 70°C
For Use With	NF Panelboards
Dimensions (H × W × D)	5.66 × 4.44 × 3.09 in
Weight	2 lb



Information About  EGB14015EPD

The EGB14015EPD is part of Square D’s EGB Series of molded case circuit breakers engineered for dependable protection in panelboard systems. It is a single-pole, bolt-on breaker rated for 15 amps at 277 volts AC, offering both long-time and instantaneous trip functions. Designed for use with NF panelboards, the EGB14015EPD provides 30mA ground fault protection and meets HID and HACR standards. Its thermal magnetic mechanism delivers consistent performance in demanding environments with operating temperatures from -25°C to 70°C.

Key Features:

• Compact E-Frame Design: Optimized for installation in NF panelboards with limited space.
• Ground Fault Protection: Provides 30mA ground fault sensing for enhanced safety.
• Thermal Magnetic Trip Unit: Combines thermal and magnetic protection for overload and short-circuit conditions.
• High Interrupting Capacity: Rated at 35kAIC at 120/240 VAC, ensuring system reliability.
• Bolt-On Connection: Simplifies installation and ensures secure electrical contact.
• Durable Construction: Built to perform in ambient temperatures up to 70°C.
• Certified Compliance: Meets cULus standards for safety and performance.
• Versatile Wire Range: Accepts Cu/Al conductors from AWG 14 to AWG 6.

The EGB14015EPD delivers the reliability and precision required for safe electrical protection in industrial and commercial power distribution systems.
