Description

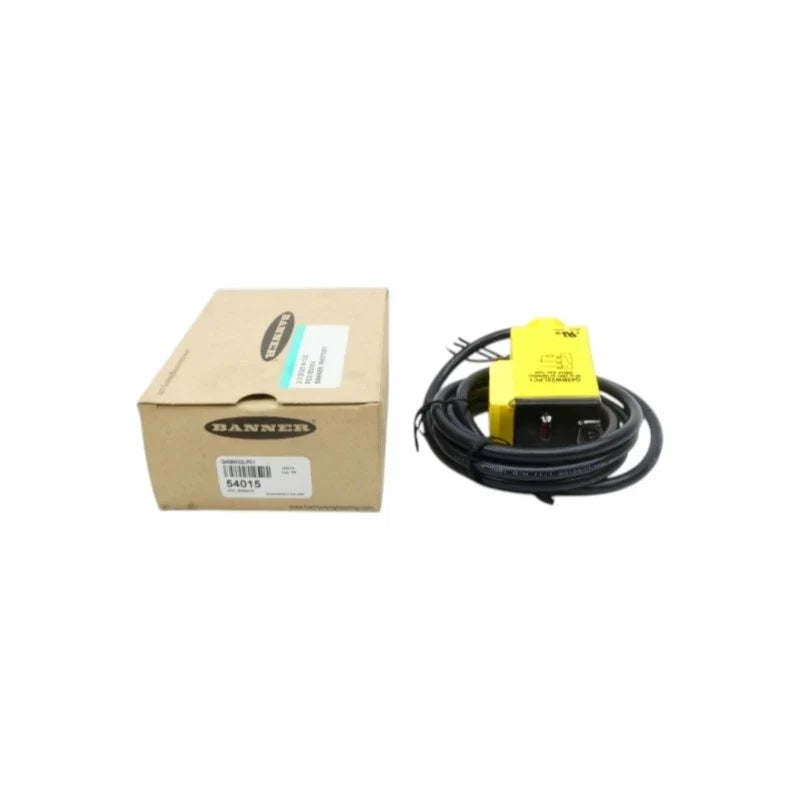

The Banner Engineering Q45BW22LPC1 is a rugged rectangular photoelectric sensor designed for reliable object detection in industrial automation systems. Featuring a visible red LED beam and polarized retroreflective sensing mode, it provides accurate detection up to 6 meters. Its durable thermoplastic housing and AC solid-state output make it suitable for demanding factory environments requiring stable long-range sensing.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Sensors |
| Part Number |
Q45BW22LPC1 |
| Subcategory |
Photoelectric Sensors |
| Supply Voltage |
90–250 V AC |
| Power Type |
AC |
| Sensing Mode (General) |
Retroreflective |
| Sensing Mode (Detailed) |
Polarized |
| Sensing Beam |
Visible Red LED |
| Sensing Beam Wavelength |
680 nm |
| Maximum Sensing Distance |
6000 mm |
| Output Type |
Solid-State AC Switch |
| Output Response Time |
2 ms |
| Operation Mode |
Light Operate / Dark Operate |
| Housing Style |
Rectangular |
| Housing Material |
Thermoplastic |
| Lens Material |
Acrylic |
| Connection |
2 m Cable |
| Number of Pins |
3 |
| IP Rating |
IP67 |
| NEMA Rating |
NEMA 4X |
| Operating Temperature |
-40°C to +70°C |
| Maximum Relative Humidity |
90% at 50°C |
| Delay at Power-Up |
100 ms |
| Repeatability |
500 µs |
| Adjustments |
Potentiometer |
| Barrel Diameter |
30 mm |
| Indicator |
LED |
| Weight |
0.45 kg |
Information About Q45BW22LPC1
The Q45BW22LPC1 is part of Banner Engineering’s Q45 Series, known for its robust construction and dependable optical sensing performance in harsh industrial settings. Built with a thermoplastic rectangular housing and an acrylic lens, it is engineered to withstand exposure to moisture, dust, and vibration while maintaining consistent detection accuracy. The sensor operates on a wide 90–250 V AC supply and utilizes a polarized retroreflective sensing method to minimize false triggering from reflective backgrounds. With light/dark operate selection and potentiometer-based sensitivity adjustment, it integrates easily into conveyor systems, packaging lines, and material handling equipment.
Key Features:
- Polarized Retroreflective Sensing: Ensures accurate object detection while reducing interference from shiny surfaces.
- Visible Red LED Beam (680 nm): Simplifies alignment and setup during installation and maintenance.
- Extended Sensing Range: Detects objects up to 6000 mm for long-distance industrial applications.
- Wide AC Supply Voltage: Operates reliably within 90–250 V AC power systems.
- Solid-State AC Output: Provides durable, contactless switching with fast 2 ms response time.
- Rugged IP67 & NEMA 4X Housing: Protects against dust, water ingress, and washdown environments.
- Wide Operating Temperature Range: Functions from -40°C to +70°C for extreme industrial conditions.
- Potentiometer Sensitivity Adjustment: Allows precise on-site configuration for optimal performance.
The Q45BW22LPC1 delivers the reliability and precision required for industrial object detection and automated material handling systems.
