Description

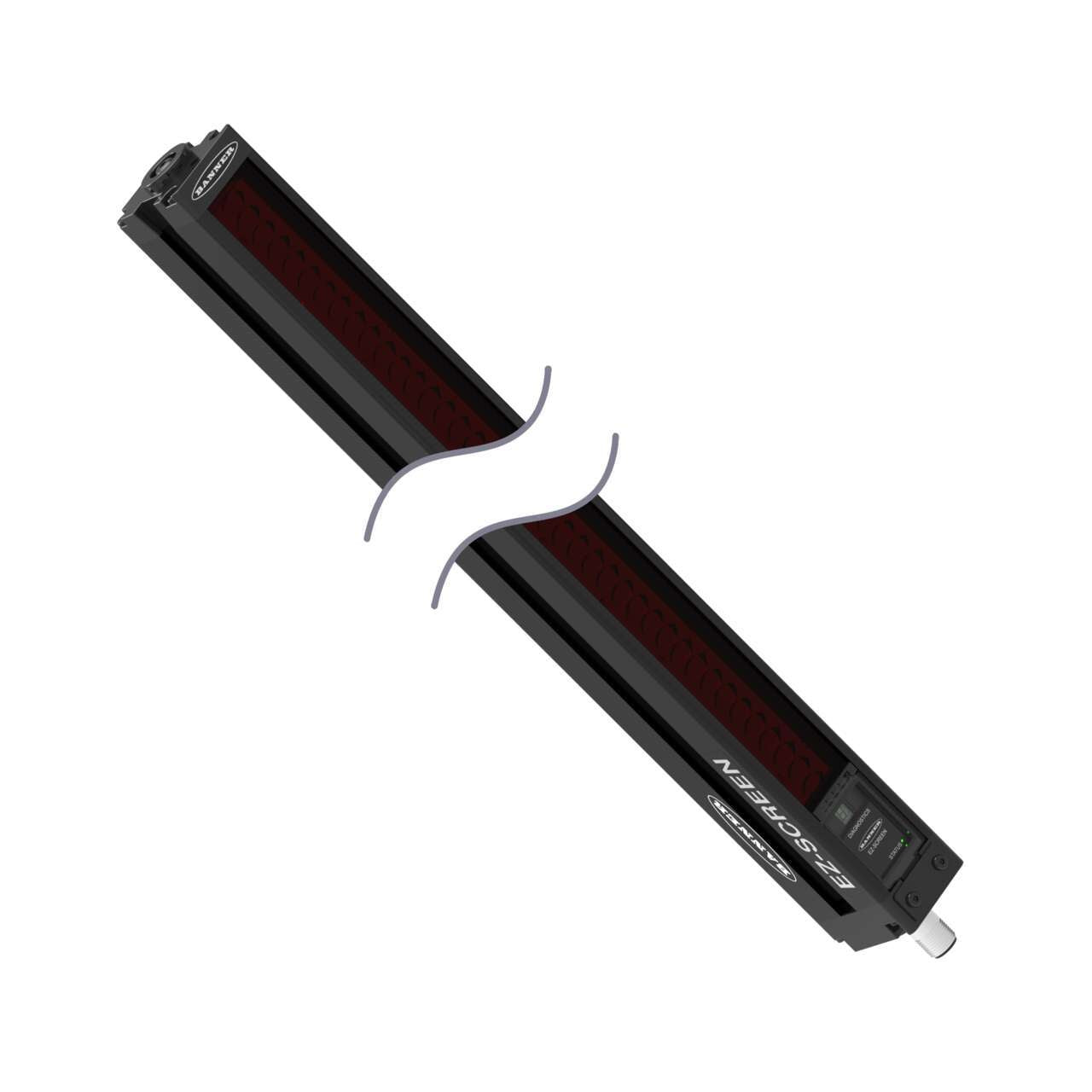

The Banner Engineering SLSE30-300Q5 is a Type 4 safety light curtain emitter designed to protect personnel in industrial hazardous areas. It provides a 300 mm defined sensing area with 30 mm resolution and an operating range up to 18 meters. The device is used as part of an EZ-SCREEN safety system for machine safeguarding applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner Engineering |
| Category |
Safety Systems |
| Part Number |
SLSE30-300Q5 |
| Subcategory |
Light Curtain |
| Series |
EZ-SCREEN |
| System Type |
Safety Light Curtain Emitter |
| Safety Level |
Type 4 |
| Resolution |
30 mm |
| Defined Area Height |
300 mm |
| Operating Range |
0.1 to 18 m |
| Number of Beams |
20 |
| Light Source |
Infrared LED, 950 nm |
| Supply Voltage |
24 VDC |
| Supply Current |
100 mA max |
| Response Time |
11 ms |
| Connector Type |
5-pin M12 |
| Housing Material |
Aluminum |
| Environmental Rating |
IP65 |
| Operating Temperature |
0 to +55°C |
| Overall Length |
372 mm |
| PL Rating |
PL e |
| SIL Rating |
SIL 3 |
| Test Input |
Yes |
| Weight |
2.00 lbs |
Information About SLSE30-300Q5
The SLSE30-300Q5 is part of the Banner Engineering EZ-SCREEN series, which is designed for safety-rated presence detection in industrial environments. This emitter uses infrared LED technology to generate a protective light field and operates in conjunction with a compatible receiver. It supports a selectable scan code, includes a test input for functional verification, and meets Type 4 safety requirements per IEC 61496-2. The aluminum housing with IP65 protection is suitable for fixed machine guarding installations.
Key Features:
-
Type 4 safety classification: Designed to meet high-level machine safety requirements.
-
30 mm resolution: Suitable for hand and finger detection applications.
-
300 mm defined area height: Provides compact protection coverage.
-
Operating range up to 18 m: Supports flexible installation distances.
-
Infrared LED light source: Uses 950 nm peak wavelength for reliable detection.
-
Test input function: Enables system testing and validation.
-
M12 quick-disconnect connector: Simplifies installation and replacement.
The SLSE30-300Q5 delivers the reliability and precision required for industrial safety light curtain emitter applications.
