Description

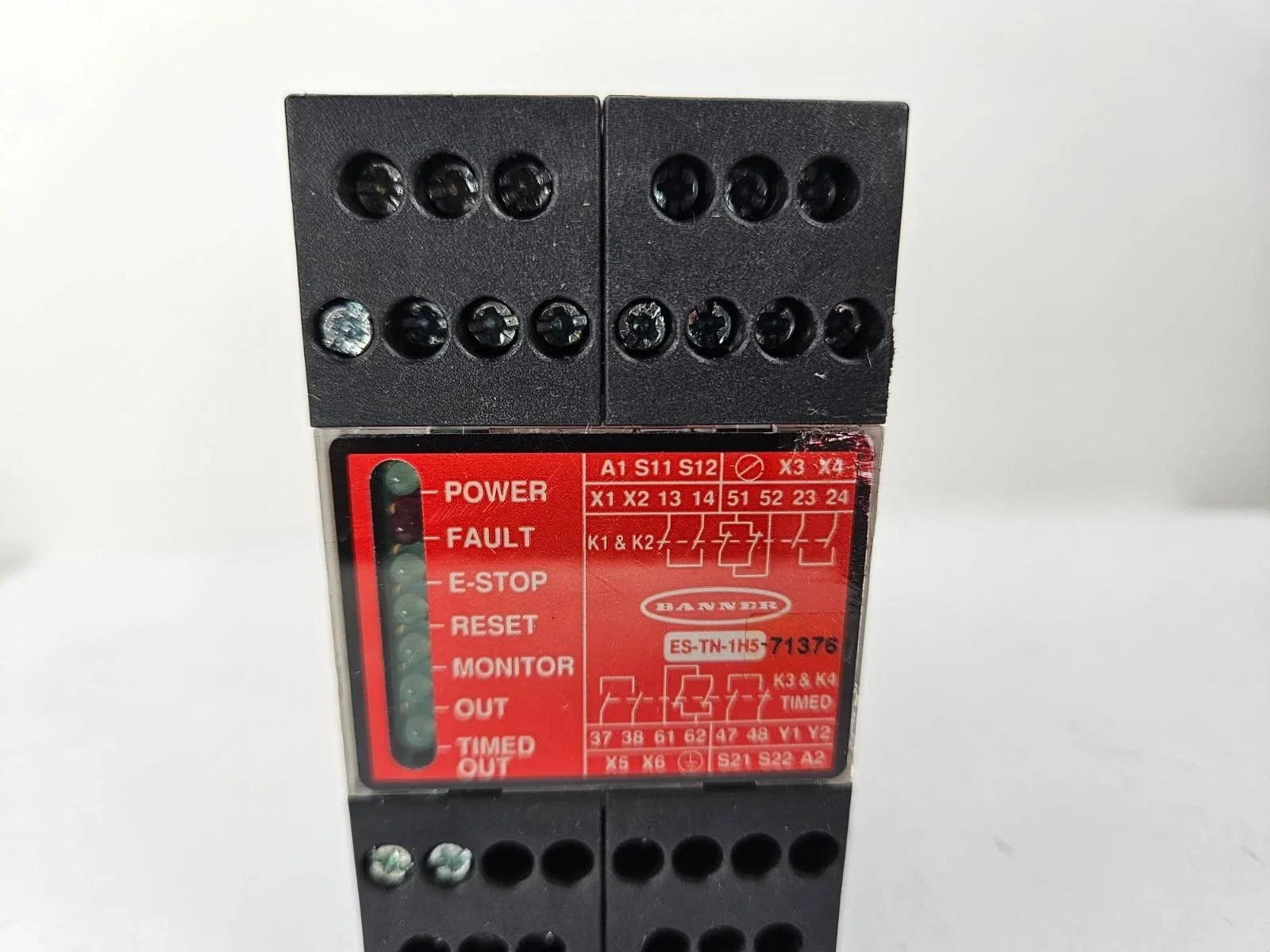

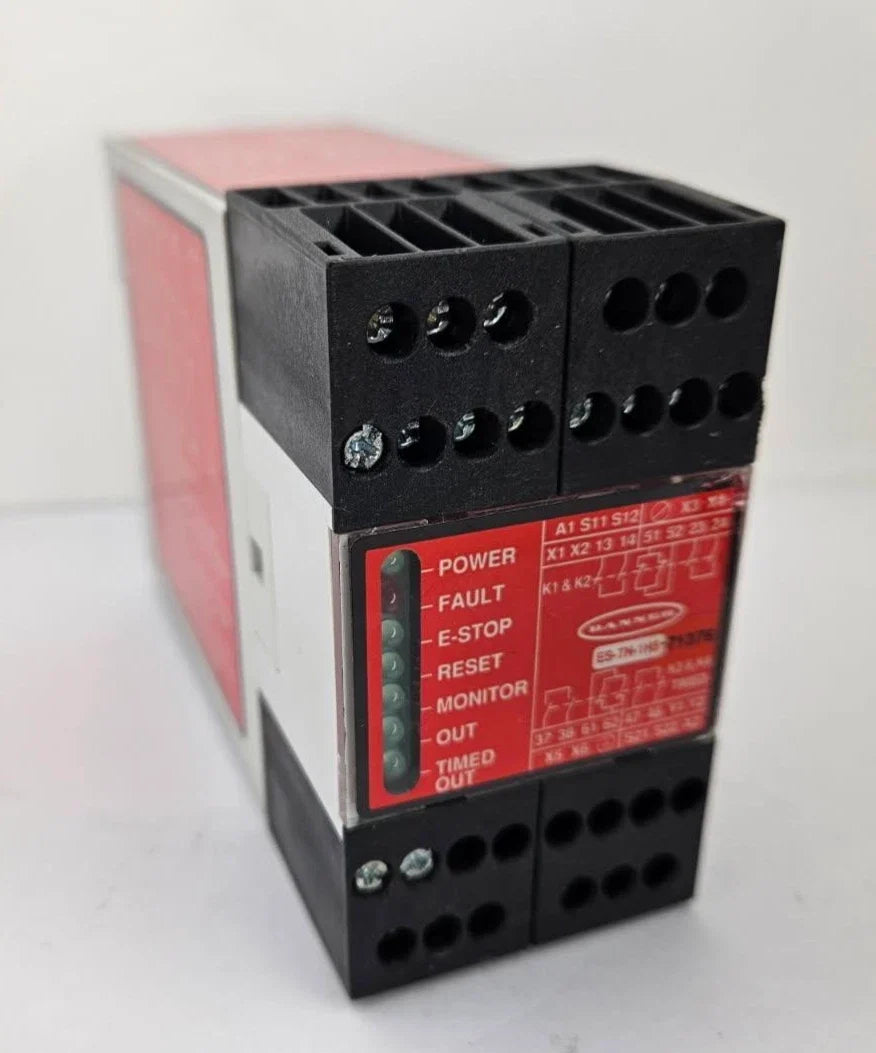

The Banner ES-TN-1H5 E-Stop Safety Module is a monitoring relay designed for reliable control of emergency stop circuits in industrial machinery. It ensures safe shutdown of equipment when connected emergency stop buttons are actuated.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Banner |
| Category |
Safety Devices |
| Part Number |
ES-TN-1H5 |
| Subcategory |
E-Stop Safety Modules |
| Series |
ES Series |
| Function |
Emergency stop safety monitoring module |
| Input Devices |
Emergency stop buttons, safety switches |
| Safety Outputs |
Redundant relay outputs with positively guided contacts |
| Auxiliary Outputs |
Status or signaling relay (if applicable) |
| Supply Voltage |
24 V DC |
| Contact Rating |
Typically up to 6 A at 250 V AC (resistive load) |
| Reset Modes |
Manual or automatic reset options |
| Indicators |
LED indicators for power, input, and output status |
| Safety Rating |
SIL3, PL e (depending on configuration) |
| Housing Material |
Industrial-grade plastic |
| Mounting Type |
DIN-rail |
| Operating Temperature |
-10°C to +55°C |
| Certifications |
CE, UL, CSA, TUV |
| Applications |
Machine guarding, E-Stop circuit monitoring, automation safety |
| Weight |
Approx. 250 g |
Information About ES-TN-1H5
The ES-TN-1H5 is part of Banner’s ES Series of emergency stop safety modules, built to monitor E-Stop devices and other safety inputs. It offers redundant safety outputs and fault detection to ensure compliance with international machine safety standards. Designed with DIN-rail mounting, the unit allows quick installation in control panels. The ES-TN-1H5 is widely applied in robotic cells, conveyors, presses, and other equipment where safe and immediate stopping is required.
Key Features:
- E-Stop Monitoring: Supervises emergency stop buttons and circuits for safe shutdown.
- Redundant Safety Outputs: Provides fail-safe relay contacts for reliable machine control.
- Fault Detection: Identifies wiring or contact faults to maintain safety integrity.
- DIN-Rail Mounting: Compact design for fast panel installation.
- Multiple Reset Modes: Supports both manual and automatic reset options.
- Status Indicators: LED diagnostics simplify monitoring and troubleshooting.
- Standards Compliance: Meets international safety requirements (ISO, IEC, EN).
- Industrial Applications: Suitable for presses, conveyors, robotic systems, and assembly lines.
The ES-TN-1H5 delivers the reliability and precision required for emergency stop safety integration in industrial automation systems.
