Description

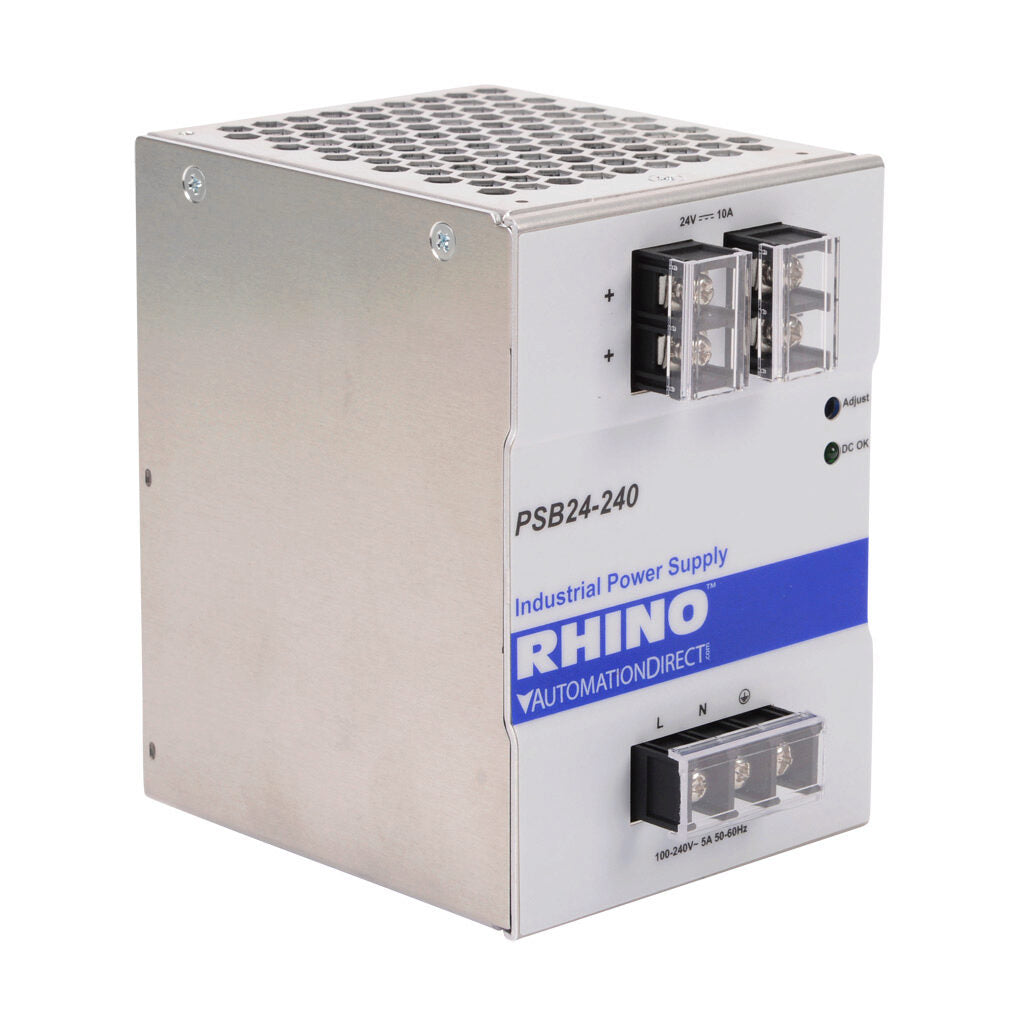

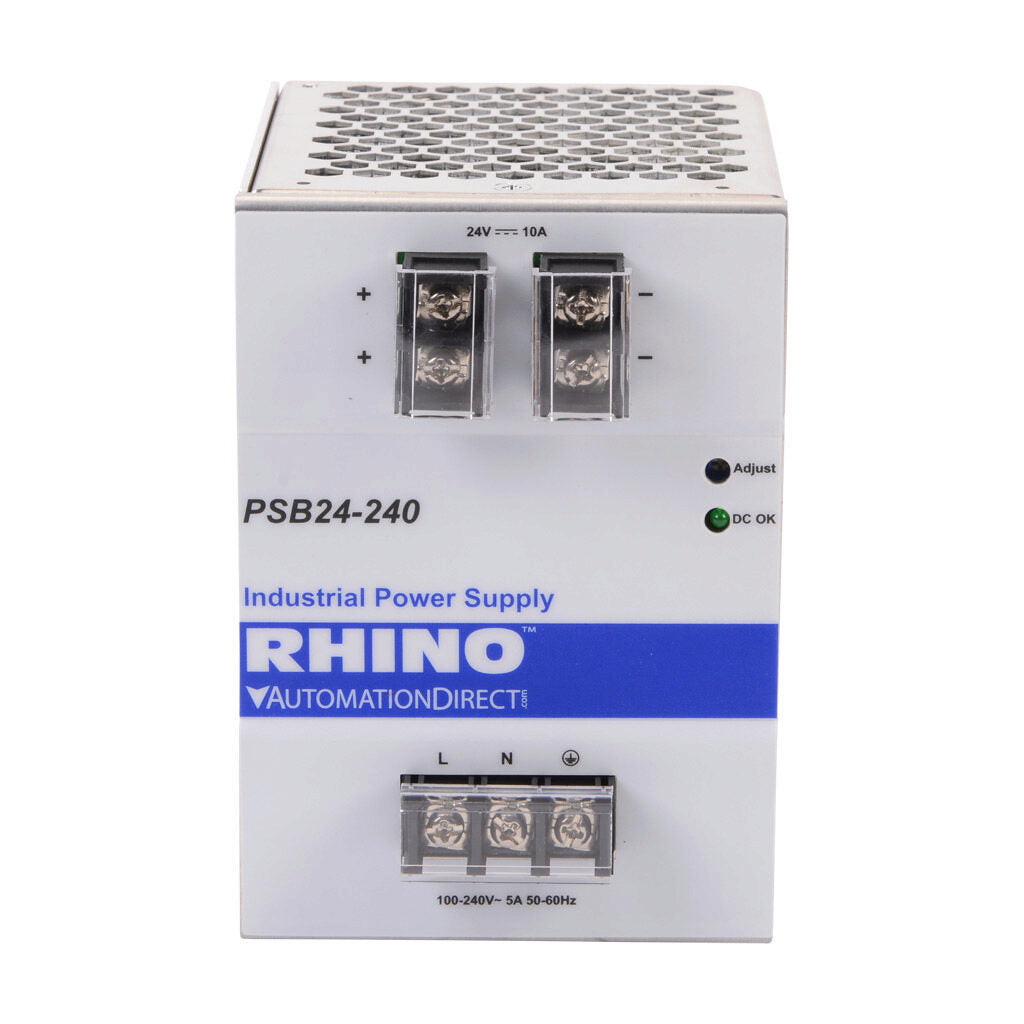

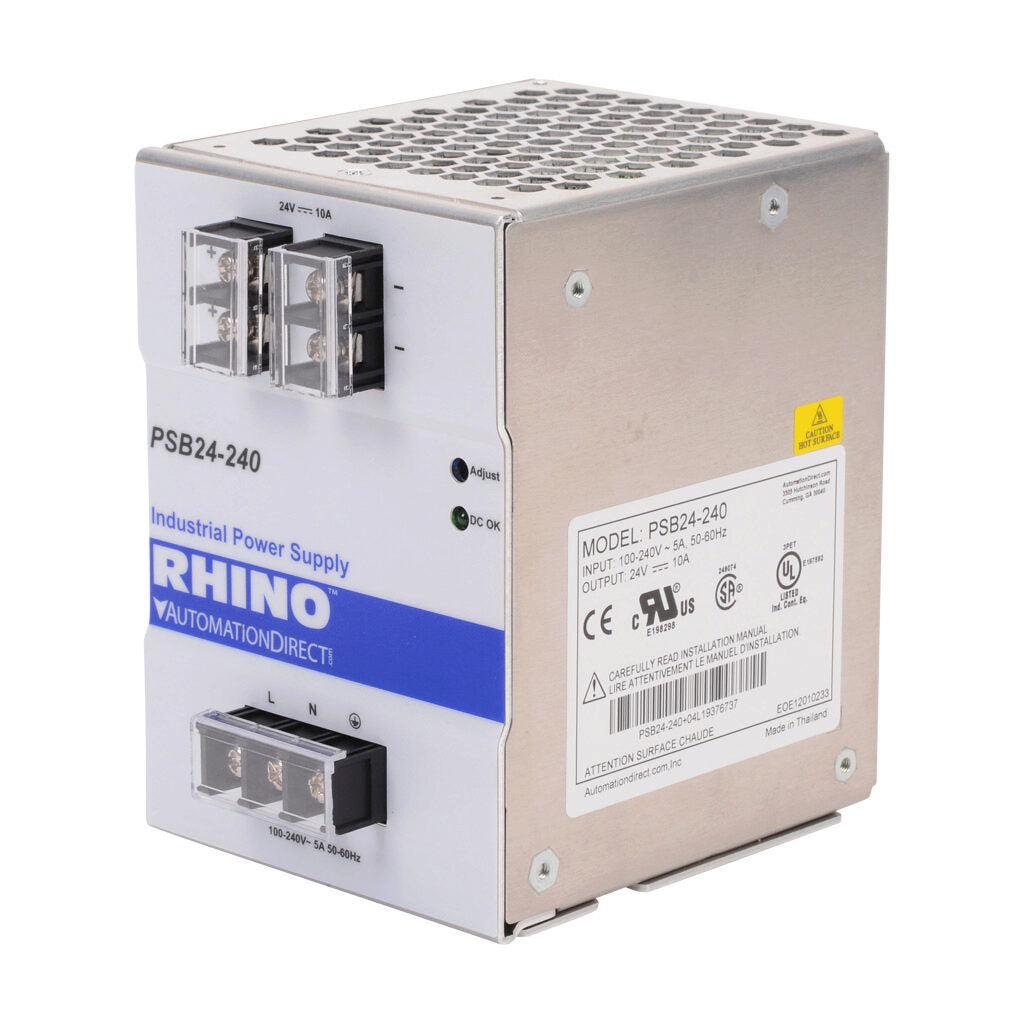

The AutomationDirect PSB24-240 is a RHINO PSB series switching power supply designed to provide regulated 24 VDC output for industrial control systems. Rated at 10A and 240W, it converts single-phase AC or DC input power into stable DC voltage for PLCs, sensors, relays, and other automation components. This DIN rail-mounted unit is used in control panels requiring reliable and adjustable 24 VDC power distribution.

Technical Specifications

Information About PSB24-240

The PSB24-240 is part of the AutomationDirect RHINO PSB series of enclosed switching power supplies engineered for industrial environments. It accepts a wide nominal input range of 120/240 VAC or 120–375 VDC, providing installation flexibility across different power infrastructures. The unit features an aluminum housing for heat dissipation and durability, and mounts on a standard 35mm DIN rail for integration into control cabinets. Designed for consistent performance, it delivers adjustable 24 VDC output at up to 10 amps to support demanding automation loads.

Key Features:

• 24 VDC Output Rating: Provides regulated 24 VDC at 10A with adjustable output voltage.
• 240W Power Capacity: Supports higher current loads in industrial automation panels.
• Wide Input Voltage Range: Accepts 120/240 VAC or 120–375 VDC nominal input.
• DIN Rail Mount Design: Installs on standard 35mm DIN rail for panel integration.
• Enclosed Aluminum Housing: Enhances heat dissipation and mechanical durability.
• Screw Terminal Connections: Ensures secure field wiring connections.
• Industrial Switching Technology: Provides stable and efficient DC power conversion.

The PSB24-240 delivers the reliability and precision required for stable 24 VDC power distribution in industrial automation systems.
