Description

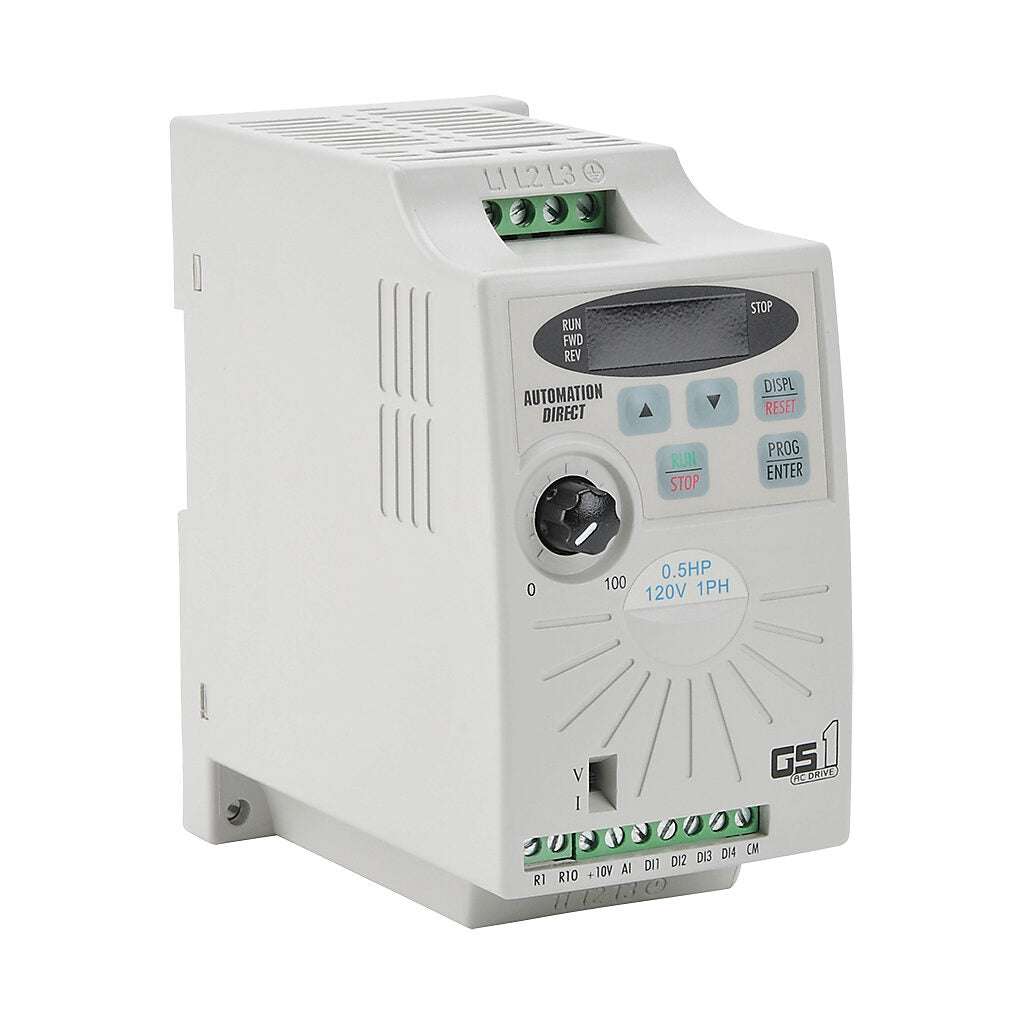

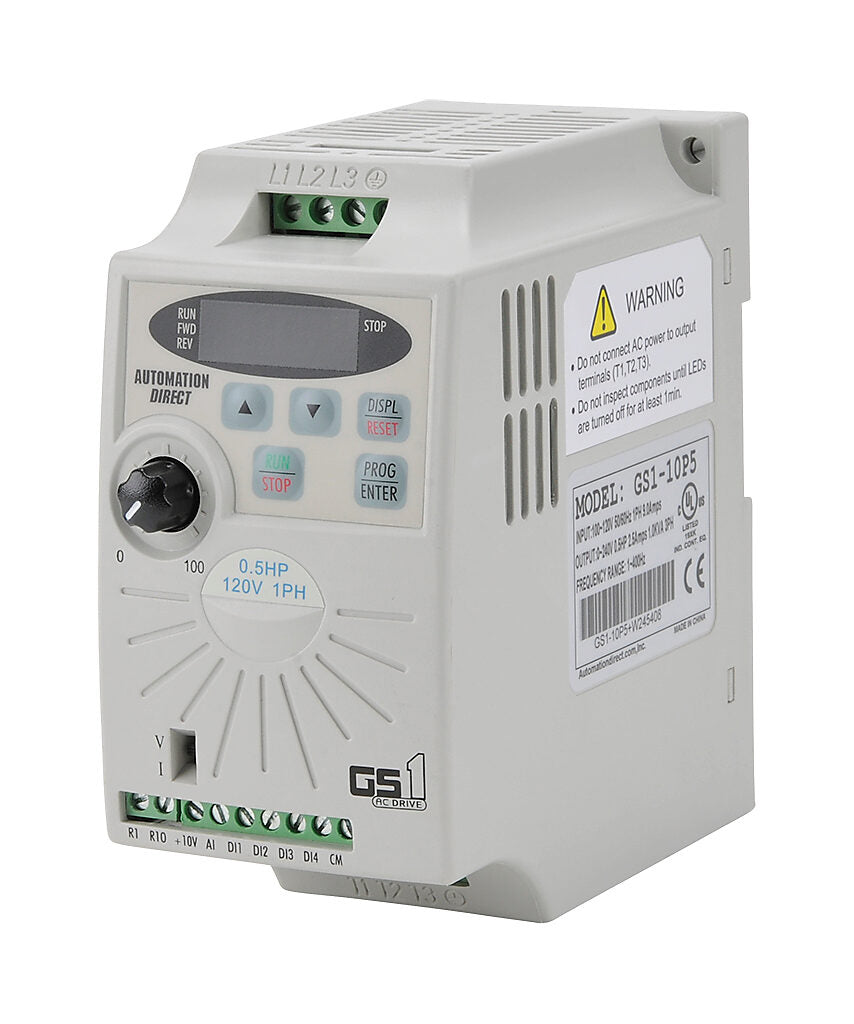

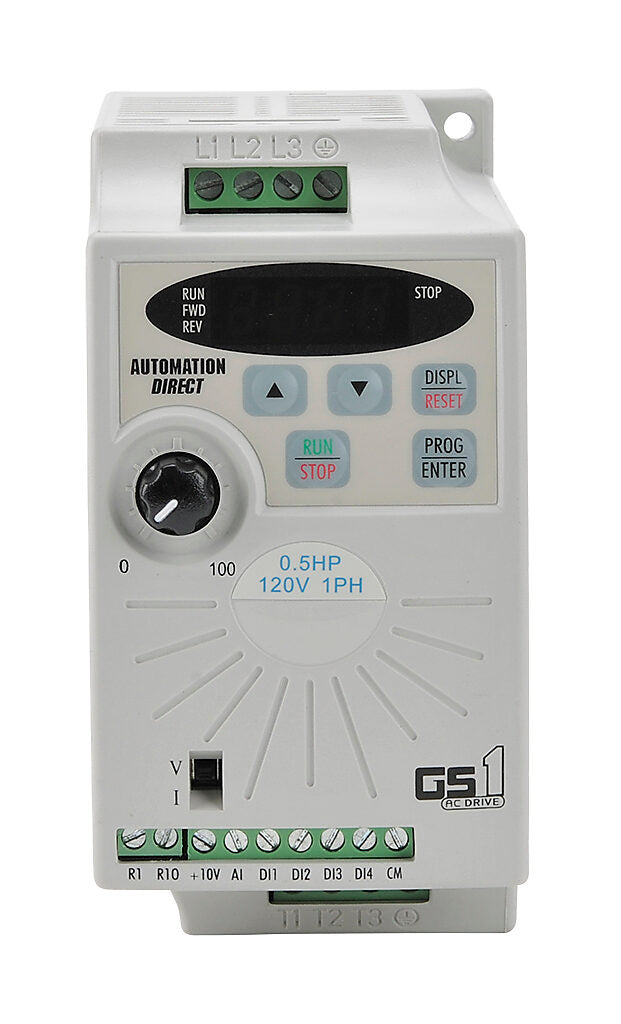

The Automation Direct GS1-10P5 is a GS1 series AC micro drive rated for 1/2 horsepower operation with single-phase 120/230 VAC input. It utilizes V/Hz control mode and provides integrated RS-485 Modbus communication for industrial motor control applications. This enclosed A-frame drive is designed to regulate speed and direction of small three-phase motors in compact automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Drives |
| Part Number |
GS1-10P5 |
| Subcategory |
AC Variable Frequency Drives |
| Series |
GS1 |
| Drive Type |
AC Micro Drive |
| Rated Power |
1/2 HP |
| Input Voltage |
120/230 VAC |
| Input Phase |
1-Phase |
| Control Mode |
V/Hz |
| Communication |
RS-485 (Modbus) |
| Enclosure Rating |
IP20 |
| Short Circuit Current Rating (SCCR) |
5kA |
| Frame Size |
A Frame |
| Reverse Capability |
Built-In |
| Suggested Replacement |
GS21-10P5 |
| Application |
Industrial Motor Speed Control |
| Weight |
2.8 lb |
Information About GS1-10P5
The GS1-10P5 is part of the Automation Direct GS1 family of compact variable frequency drives developed for economical and space-efficient motor control. It operates from a 1-phase 120/230 VAC power supply and is rated for 1/2 HP applications using V/Hz control methodology. The drive includes built-in reverse capability and supports RS-485 communication with Modbus protocol for integration into PLC-based networks. With an IP20 enclosure rating and 5kA SCCR, it is intended for installation inside control panels for light industrial and commercial machinery.
Key Features:
- 1/2 HP Output Rating: Designed for fractional horsepower motor control applications.
- 120/230 VAC Single-Phase Input: Compatible with standard single-phase power supplies.
- V/Hz Control Mode: Provides stable and economical speed control for general-purpose motors.
- RS-485 Modbus Communication: Enables networked configuration and monitoring.
- Built-In Reverse Capability: Allows direction control without additional hardware.
- 5kA SCCR Rating: Supports compliant short-circuit current protection in panel installations.
- IP20 Enclosure Rating: Suitable for protected indoor control cabinet mounting.
- Compact A-Frame Design: Optimized for space-saving installations.
The GS1-10P5 delivers the reliability and precision required for compact variable frequency motor control in light industrial automation systems.
