Description

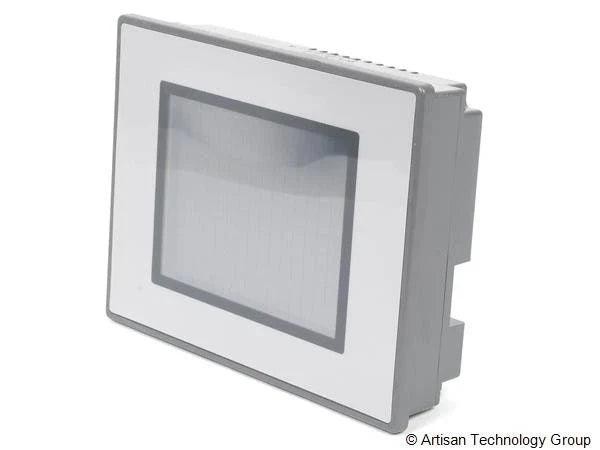

The Automation Direct DP-C321 is a 5.7-inch color touchscreen operator interface designed for machine monitoring and control. It features a 320 x 240 resolution backlit LCD display and supports RS-232/RS-422 communication for integration with PLC systems. Operating on 24 VDC, this panel provides a compact and reliable HMI solution for industrial automation environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Automation Direct |
| Category |
Human Machine Interface (HMI) |
| Part Number |
DP-C321 |
| Subcategory |
Touchscreen Operator Interface Panels |
| Display Size |
5.7 Inch |
| Display Type |
Color LCD |
| Resolution |
320 x 240 |
| Backlight |
Yes |
| Touchscreen |
Yes |
| RAM |
512 KB |
| Screen Data Memory |
1 MB |
| Communication Ports |
RS-232/RS-422 |
| Supply Voltage |
24 VDC |
| Power Consumption |
14 W |
| Mounting Type |
Panel Mount |
| Application |
Industrial Machine Interface |
| Weight |
2.4 lb |
Information About DP-C321
The DP-C321 is an operator interface panel engineered for use in PLC-based control systems requiring visual process feedback and touch input capability. It incorporates a 5.7-inch color LCD with backlighting to ensure clear visibility of operational data and control screens. The unit includes 512 KB of RAM and 1 MB of screen data memory to support application storage and runtime execution. Designed for 24 VDC power input and serial communication via RS-232/RS-422, it is suitable for panel-mounted installations in manufacturing and process control systems.
Key Features:
- 5.7-Inch Color LCD Display: Provides graphical process visualization and operator interaction.
- 320 x 240 Resolution: Supports clear presentation of text, alarms, and system data.
- Backlit Screen: Enhances readability in industrial lighting conditions.
- Touch Panel Interface: Enables direct operator input without external devices.
- 512 KB RAM: Supports runtime processing of HMI applications.
- 1 MB Screen Data Memory: Stores graphical screens and configuration data.
- RS-232/RS-422 Communication: Allows connection to compatible PLCs and control devices.
- 24 VDC Operation: Designed for standard industrial control panel power systems.
The DP-C321 delivers the reliability and precision required for compact operator interface and machine control applications.
