Overview

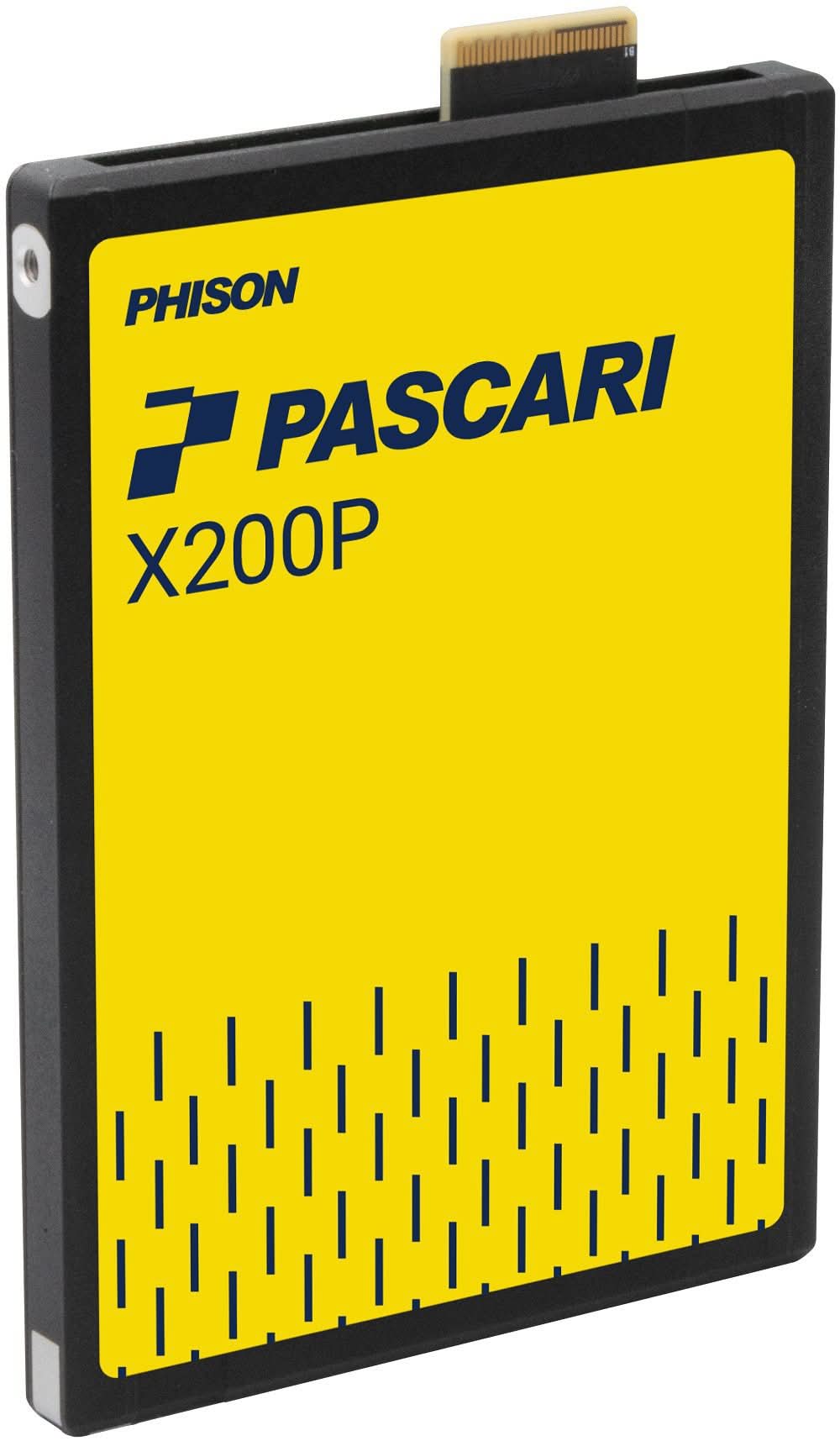

 PHISON XX208H033T84P324T0910 Pascari X200P 3.84TB U.2 15mm PCIE 5.0 Dual Port ISE SSD

Specifications

Model Number:XX208H033T84P324T0910

Brand:   PHISON

Alt Part Number(s):XX208H033T84P324T0910

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX208H033T84P324T0910

Capacities: 3.84 TB

Form Factor: U.2 15mm

PCIe Interface: PCIe Gen5 x4

Port Configuration: Dual port 2x2 lanes

Advanced Error Reporting: PCIe AER (Advanced Error Reporting)

Compliance: PCI Express Base Specification Rev. 5.0

NVMe Specification: NVM Express Base Specification Rev. 2.0

NVMe Management Interface: NVM Express Management Interface Rev 1.2

SFF Module Specification: PCI Express SFF-8639 Module Specification Revision 5.0, Version 0.7

Sequential Read: Up to 14,800 MB/s

Sequential Write: Up to 8,600 MB/s

Random Read: Up to 3,300K IOPS

Random Write: Up to 320K IOPS

Power Consumption 128K Active Read: 17 W

Power Consumption 128K Write: 21 W

Power Consumption 4KB Active Read: 17 W

Power Consumption 4KB Active Write: 22 W

Power Consumption 4KB 70 / 30 Random Read / Write: 18 W

Idle Power: 5 W

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

DWPD: 1

TBW: 7008 TB

Operating Temperature: 0°C - 70°C with specified airflow

Non-operating Temperature: -40°C - 85°C

Shock Operating: 500G, 2 ms

Shock Non-operating: 1000G, 0.5 ms

Vibration Operating: 2.17 Grms (7 - 800 Hz)

Vibration Non-operating: 16.3 Grms (10 - 2000 Hz)

Drop: 80 cm, 6 surfaces

Bending: 50 N, 60 s

Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Ecological Compliance: RoHS compliant

LBA Formats: 512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes

Namespaces: 128

Port Type: Dual Port

Reservation Support: Yes

Metadata Protection: Yes

Thermal Throttling: Yes

Power Loss Protection: Yes

Encryption: Hardware AES-XTS 256-bit

SMBus Support: Yes

*
