Overview

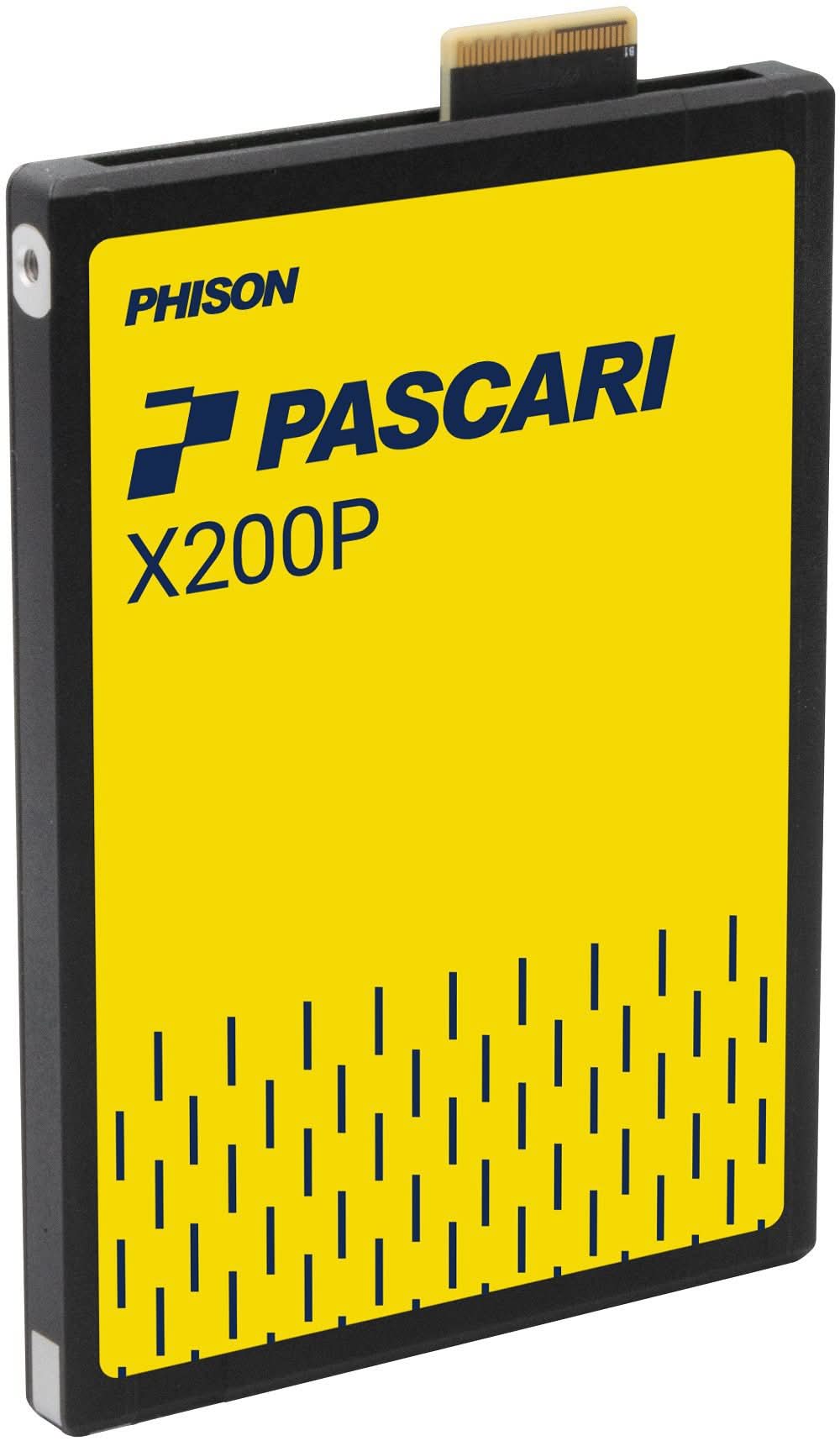

PHISON XX208H0315T3P3116T310 Pascari X200P 15.36TB U.2 15mm PCIE 5.0 Dual Port ISE SSD

Specifications

Model Number:XX208H0315T3P3116T310

Brand:   PHISON

Alt Part Number(s):XX208H0315T3P3116T310

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX208H0315T3P3116T310

Capacity: 15.36TB

Form Factor: U.2 15mm

Interface: PCIe Gen5 x4

Port: Dual port 2x2 lanes

PCIe AER: Advanced Error Reporting

PCIe Compliance: PCI Express Base Specification Rev. 5.0

NVMe Compliance: NVMe Base Specification Rev. 2.0

NVMe Management Interface: Rev. 1.2

Module Specification: PCIe SFF-8639 Rev. 5.0, Version 0.7

Sequential Read: up to 14,800MB/s

Sequential Write: up to 8,500MB/s

Random Read (IOPS): up to 2,800K

Random Write (IOPS): up to 420K

128K Active Read (Avg. RMS): 19W

128K Active Write (Avg. RMS): 23W

4KB Active Read (Avg. RMS): 21W

4KB Active Write (Avg. RMS): 24W

4KB 70/30 Random Read/Write (Avg. RMS): 23W

Idle Power: 5W

MTBF: 2.5 million hours

UBER: < 1 sector per 10^18 bits read

DWPD: 1

TBW: 28.032TB

Operating Temp (°C): 0 - 70 (with specified airflow)

Non-Operating Temp (°C): -40 - 85

Shock (Operating): 500G, 2ms

Shock (Non-Operating): 1000G, 0.5ms

Vibration (Operating): 2.17 Grms (7 - 800 Hz)

Vibration (Non-Operating): 16.3 Grms (10 - 2000 Hz)

Drop: 80cm, 6 surfaces

Bending: 50N, 60s

Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

RoHS Compliant: Yes

LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes

Namespaces: 128

Dual Port Support: Yes

Reservation Support: Yes

Metadata Protection: Yes

Thermal Throttling: Yes

Power Loss Protection: Yes

Encryption: Hardware AES-XTS 256-bit

SMBus Support: Yes

*
