Overview

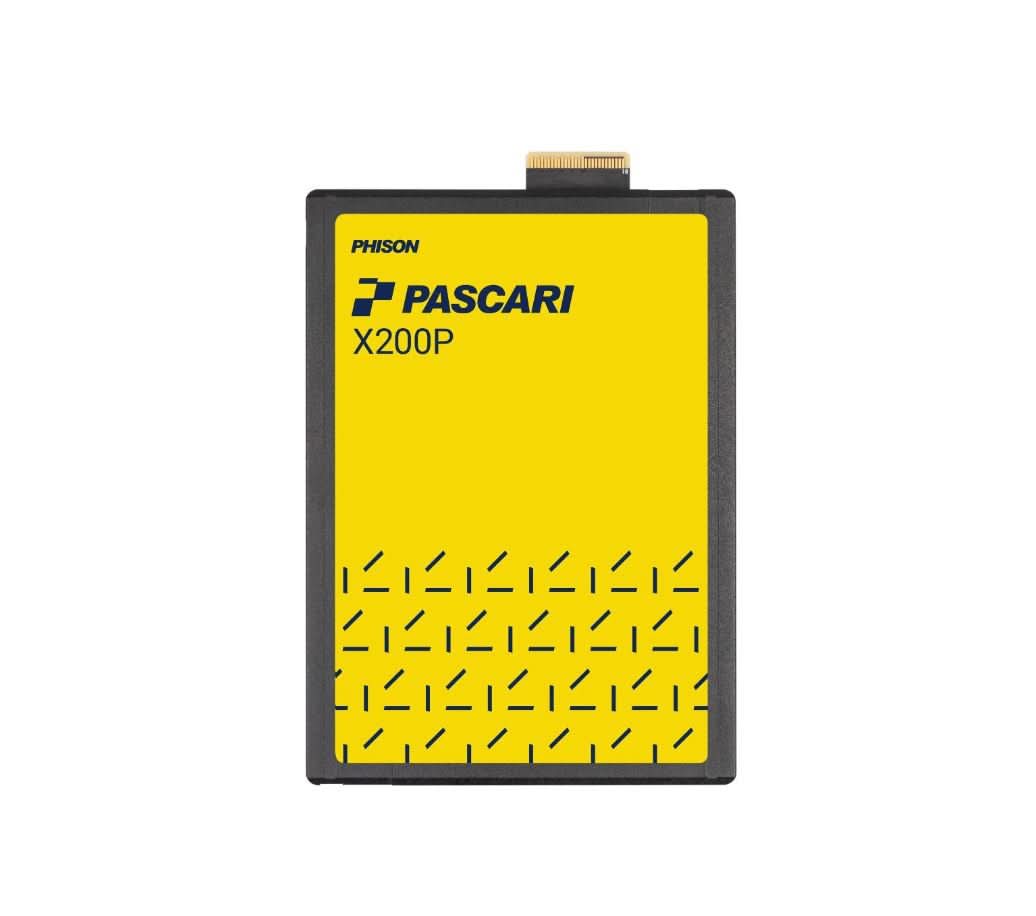

PHISON XX20DH0315T3P2116T310 Pascari X200P 15.36TB E3.S PCIe 5.0 2x2 Dual Port SED Solid State Drive

Specifications

Model Number:XX20DH0315T3P2116T310

Brand:   PHISON

Alt Part Number(s):XX20DH0315T3P2116T310

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:XX20DH0315T3P2116T310

Storage Capacity: 15.36 TB

Maximum Sequential Read: 14,800 MB/s

Maximum Sequential Write: 8,500 MB/s

Random 4KB Read: 2,600,000 IOPS

Random 4KB Write: 420,000 IOPS

Read Latency (Typical): 60 µs

Write Latency (Typical): 10 µs

Endurance (DWPD): 1

Drive Interface: PCI Express NVMe

Drive Interface Standard: PCIe 5.0 2x2

NVMe Version: 2.0

NAND Flash Type: 3D TLC

Drive Type: Internal

Form Factor: 2.5"

Power Consumption (Active): 25 W

Power Consumption (Idle): 5 W

UBER: < 1 sector per 10^18 bits read

MTBF: 2.5 million hours

Operating Temperature: 0°C to 70°C

Non-Operating Temperature: -40°C to 85°C

*
