Overview

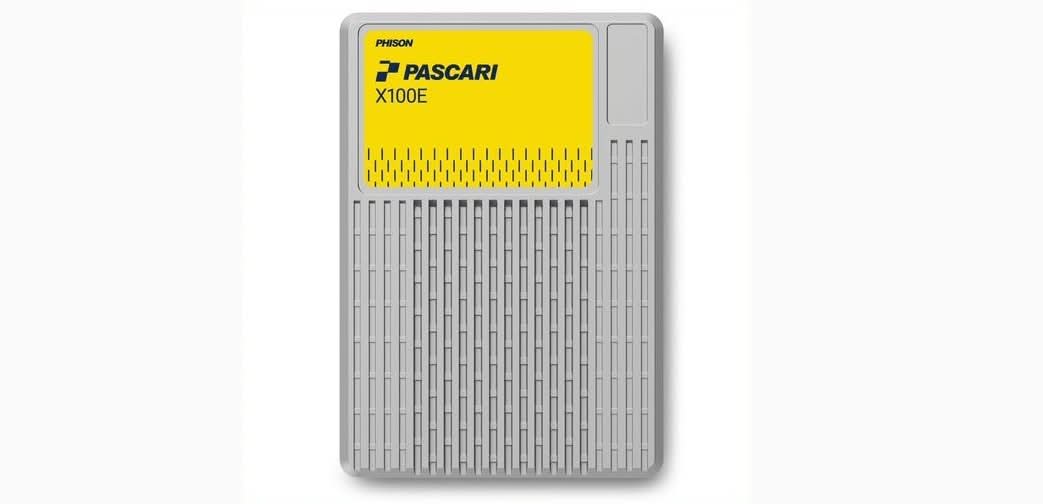

PHISON XX106H016T40E228T1900 Pascari X100E 6.4TB U.2 Dual Port PCIe Gen4x4 SED SSD
Specifications
Model Number:XX106H016T40E228T1900
Brand: PHISON
Alt Part Number(s):XX106H016T40E228T1900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XX106H016T40E228T1900
Capacity: 6.4TB
Security: SED
Form Factor: U.2
Interface: PCIe Gen4x4, Dual Port x2
Advanced Features: AER, Thermal Throttling, Power Loss Protection, SMBus
Compliance: PCIe 4.0, NVMe 1.4, NVMe-MI 1.1, SFF-8639, SFF-TA-1001
Sequential Read/Write (512KB): 7,400 / 7,000 MB/s
Random Read/Write (4KB, QD=128, 8 Jobs): 1,750K / 460K IOPS
Power - Sequential Read/Write (128K): 12W / 19W
Power - Random Read/Write (4KB): 16W / 18W
Power - Mixed 70/30 (4KB): 17W
Power - Idle: 5.9W
DWPD: 3
TBW: 35.04TB
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Shock - Operating: 500G, 2ms
Shock - Non-operating: 1000G, 0.5ms
Vibration - Operating: 2.17 Grms (200–2000Hz)
Vibration - Non-operating: 16.3 Grms (10–2000Hz)
Drop Resistance: 80cm
Bending Resistance: 50N
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
RoHS Compliant
LBA Formats: 512B, 4K, Metadata options
Namespaces Supported: 64
Port Type: Dual Port
Reservation Support: Yes
Metadata Protection: Yes
Encryption: AES-XTS 256-bit
*
