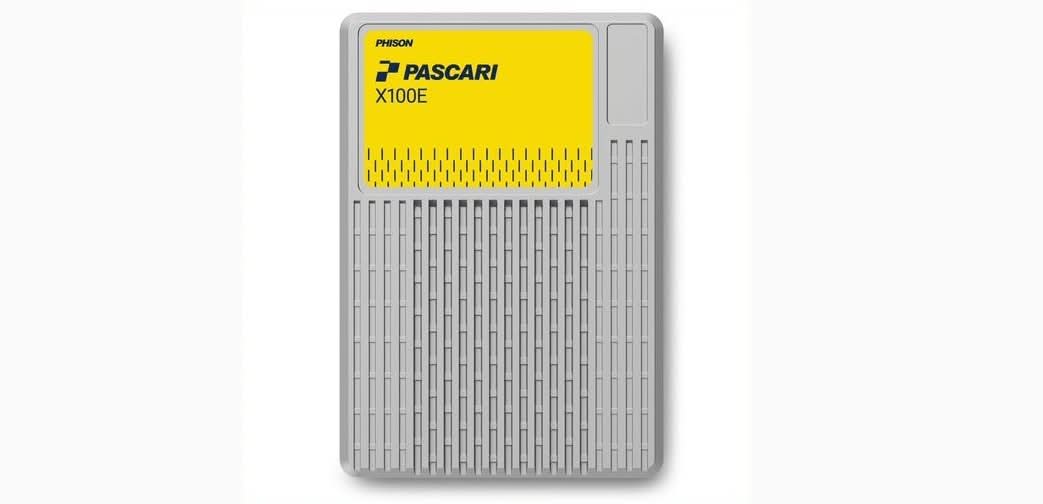

PHISON XP106H011T60E222T0400 Pascari X100E 1.6TB U.2 Single Port PCIe Gen4x4 SED SSD
Specifications
Model Number:XP106H011T60E222T0400
Brand: PHISON
Alt Part Number(s):XP106H011T60E222T0400
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:XP106H011T60E222T0400
Capacity: 1.6TB
Security: SED
Form Factor: U.2
Interface: PCIe Gen4x4, Single Port x4
Advanced Features: AER, Thermal Throttling, Power Loss Protection, SMBus
Compliance: PCIe 4.0, NVMe 1.4, NVMe-MI 1.1, SFF-8639, SFF-TA-1001
Sequential Read/Write (512KB): 7,400 / 3,600 MB/s
Random Read/Write (4KB, QD=128, 8 Jobs): 1,750K / 300K IOPS
Power - Sequential Read/Write (128K): 10W / 13W
Power - Random Read/Write (4KB): 13W / 12W
Power - Mixed 70/30 (4KB): 12W
Power - Idle: 5.5W
DWPD: 3
TBW: 8.76TB
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Shock - Operating: 500G, 2ms
Shock - Non-operating: 1000G, 0.5ms
Vibration - Operating: 2.17 Grms (200–2000Hz)
Vibration - Non-operating: 16.3 Grms (10–2000Hz)
Drop Resistance: 80cm
Bending Resistance: 50N
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
RoHS Compliant
LBA Formats: 512B, 4K, Metadata options
Namespaces Supported: 64
Port Type: Single Port
Reservation Support: Yes
Metadata Protection: Yes
Encryption: AES-XTS 256-bit
*
