Overview

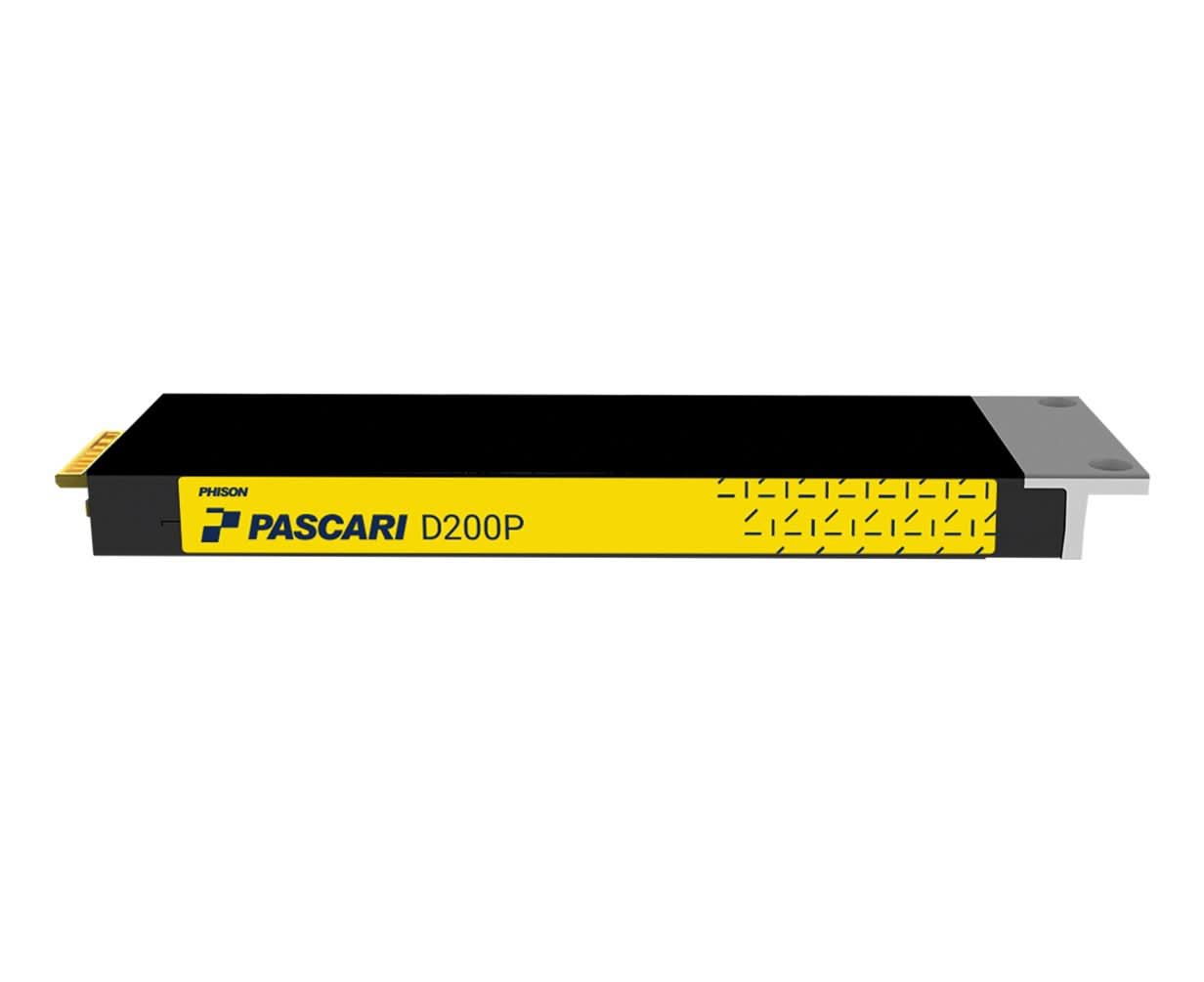

 PHISON DP20AH031T92P312T0410 Pascari D200 1.92TB EDSFF E1.S PCIE 5.0 Single Port ISE SSD

Specifications

Model Number:DP20AH031T92P312T0410

Brand:   PHISON

Alt Part Number(s):DP20AH031T92P312T0410

Product Type: Solid State Drive

Technical Description

Brand:  PHISON

Model:DP20AH031T92P312T0410

Capacities: 1.92 TB

Form Factor: EDSFF E1.S

PCIe Interface: PCIe Gen5 x4

Advanced Error Reporting: PCIe AER (Advanced Error Reporting)

Compliance: PCI Express Base Specification Rev. 5.0

NVMe Specification: NVM Express Base Specification Rev. 2.0

NVMe Management Interface: NVMe Express Management Interface Rev 1.2

Datacenter NVMe SSD Specification: V2.0

SNIA Compliance: SNIA SFF-TA-1009 R3.1.1 /1006 R1.5 /1020 Rev1.1 /1023 Rev 1.0

Sequential Read: 14,000 MB/s

Sequential Write: Up to 4,200 MB/s

Random Read: Up to 2,350K IOPS

Random Write: Up to 140K IOPS

Power Consumption 128K Active Read: 16 W

Power Consumption 128K Write: 14 W

Power Consumption 4KB Active Read: 15 W

Power Consumption 4KB Active Write: 16 W

Power Consumption 4KB 70 / 30 Random Read / Write: 13 W

Idle Power: 4.9 W

MTBF: 2.5 million hrs

UBER: < 1 sector per 10^18 bits read

DWPD: 1

TBW: 3,504 TB

Operating Temperature: 0°C - 70°C with specified airflow

Non-operating Temperature: -40°C - 85°C

Shock Operating: 1000G, 0.5 ms

Shock Non-operating: 1500G, 0.5 ms

Vibration Operating: 1.52 mm / 20G (20 ~ 2000 Hz)

Vibration Non-operating: 3.08 Grms (7 ~ 800 Hz)

Drop: 80 cm height

Bending: ≤ 50 N

Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL

Ecological Compliance: RoHS, REACH

Namespaces: 128

Port Type: Single Port

Reservation Support: Yes

Metadata Protection: Yes

Thermal Throttling: Yes

Power Loss Protection: Yes

SMBus Support: Yes

End-to-End Data Path Protection: Yes

TCG Opal 2.0: Yes

Encryption: Hardware AES-XTS 256-bit

Sanitize Support: Yes

*
