Description

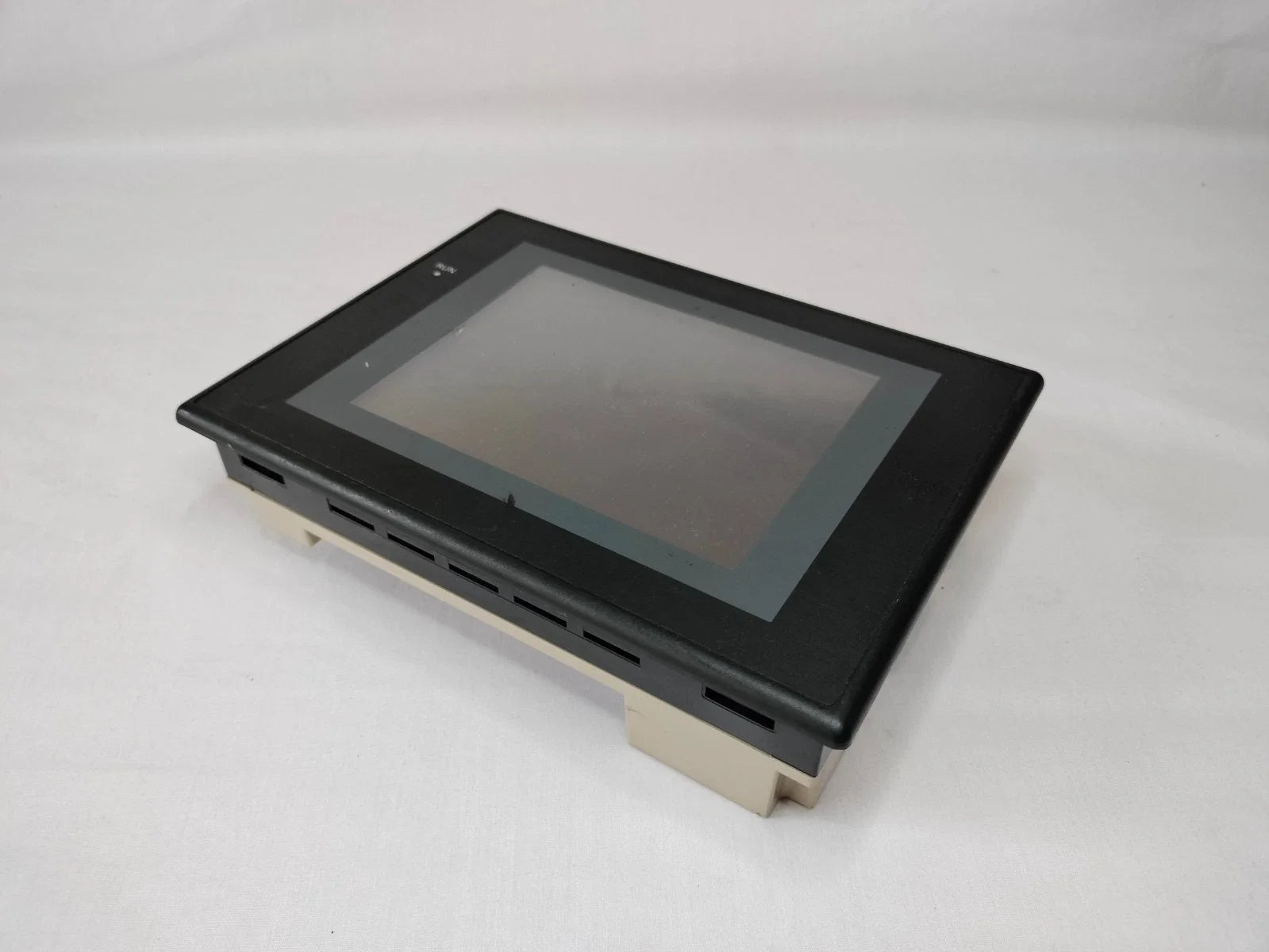

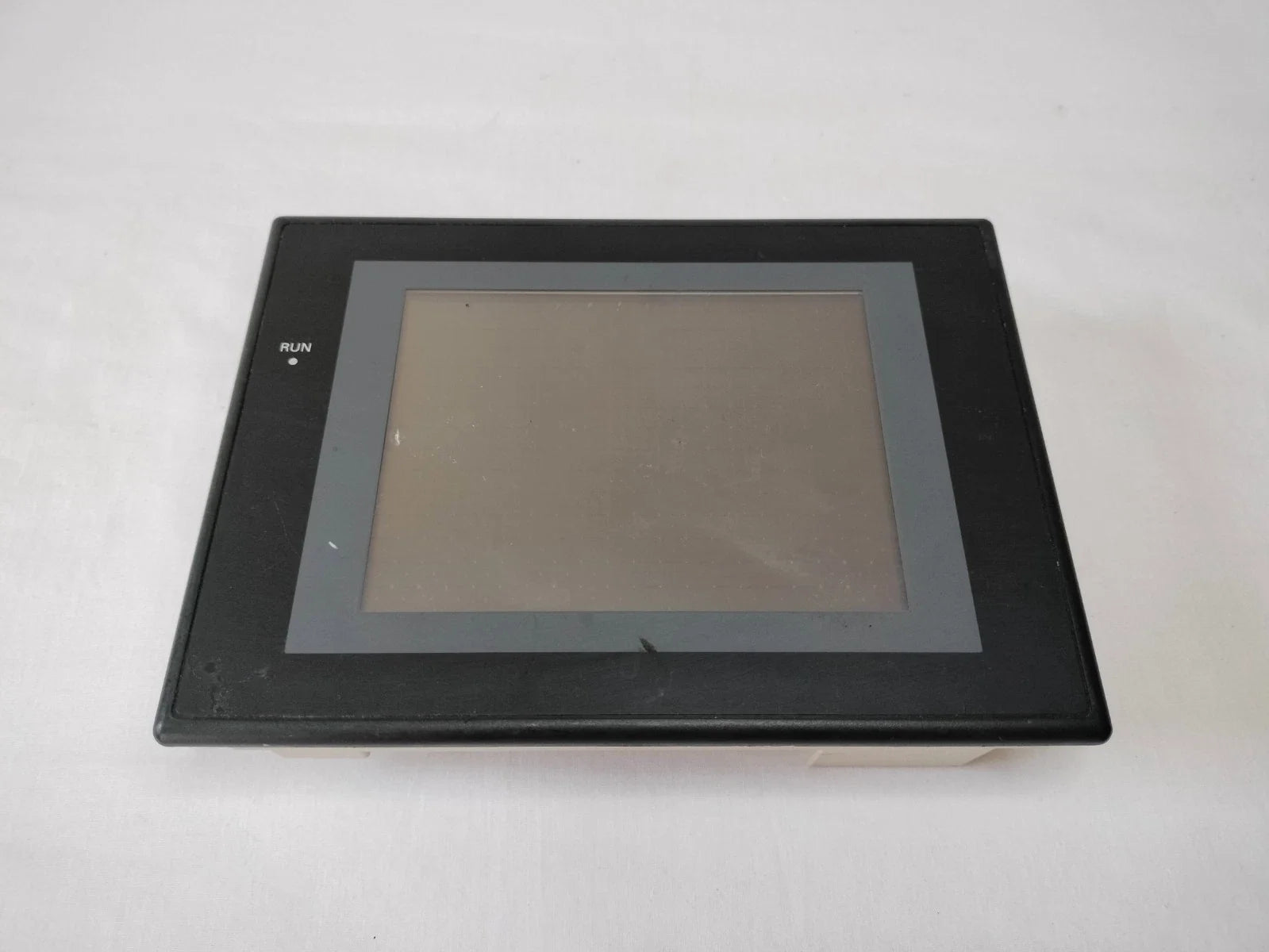

The Omron NS5-SQ10B-V2 is a compact operator interface designed for visualizing and controlling industrial automation processes. It features a 5.7-inch color TFT display that provides clear operator feedback for machine status, alarms, and control functions. This HMI is commonly used in panel-mounted applications where space efficiency and dependable operation are required.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
HMI / MMI / OIT |
| Part Number |
NS5-SQ10B-V2 |
| Subcategory |
Operator Interface |
| Product Type |
Operator Interface / HMI |
| Series |
NS Series |
| Display Size |
5.7 inches |
| Display Type |
TFT Color LCD |
| Display Resolution |
320 × 240 pixels |
| Touch Panel Type |
Resistive touchscreen |
| Communication Type |
Serial communication (no Ethernet) |
| Ethernet Capability |
Not supported |
| Power Supply Voltage |
24 VDC |
| Power Consumption |
15 W |
| Bezel Color |
Black |
| Mounting Type |
Panel mount |
| Manufacturer Status |
Discontinued by Manufacturer |
| Weight |
2.01 lbs |
Information About
NS5-SQ10B-V2

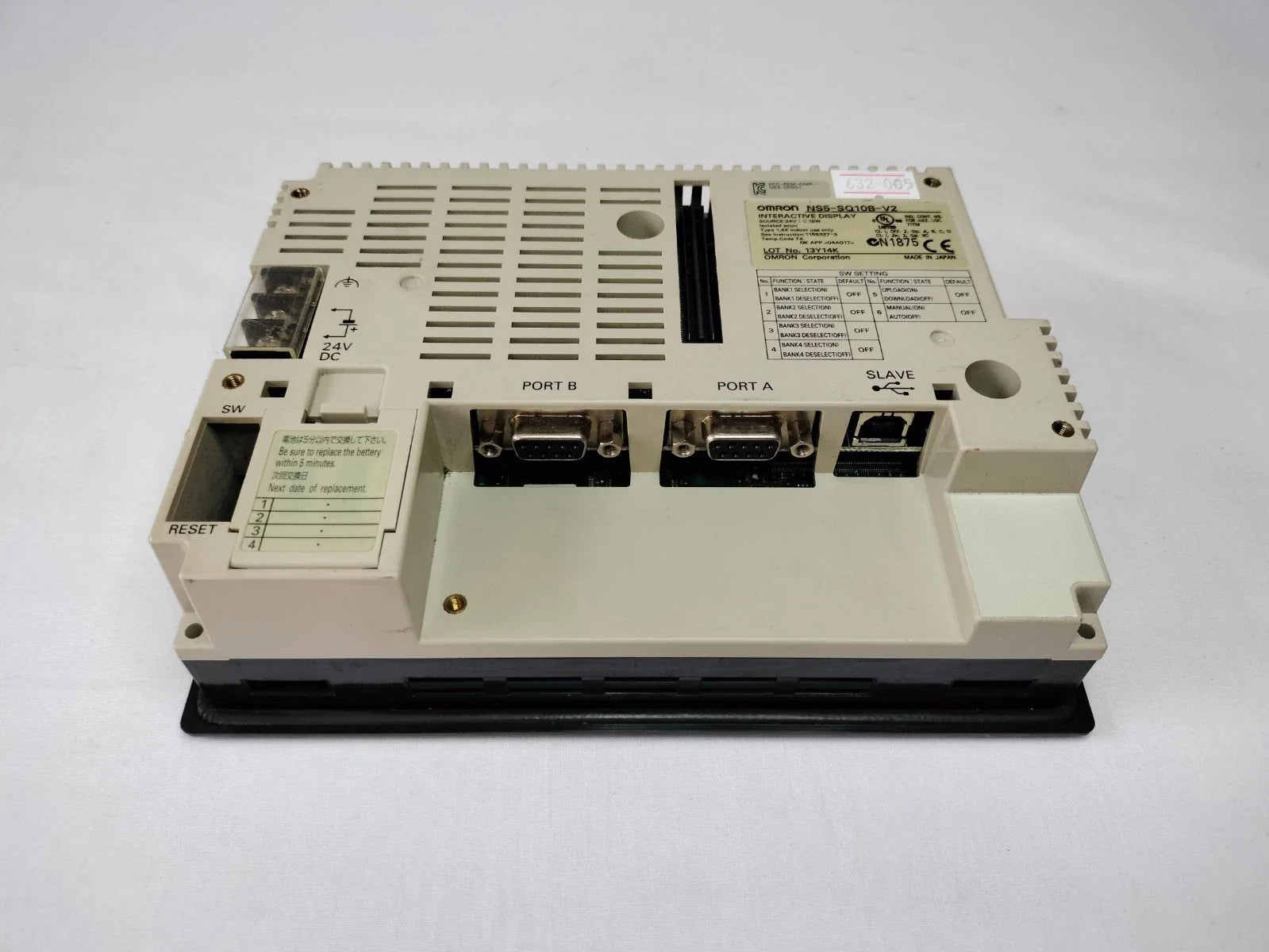

The NS5-SQ10B-V2 is part of Omron’s NS-series operator interfaces, developed for seamless integration with Omron PLC and automation systems. It is built with a durable TFT color LCD and resistive touchscreen to support consistent operation in industrial environments. The unit operates on a 24 VDC power supply and communicates through serial interfaces, as it does not include Ethernet capability. Although discontinued by the manufacturer, it remains suitable for maintaining or expanding existing Omron-based HMI installations.
Key Features:
- 5.7-Inch TFT Color Display: Provides clear visualization of machine data, alarms, and control screens.
- Compact Resolution: 320 × 240 pixels supports readable text and basic graphics.
- Touchscreen Operation: Enables intuitive operator input without external control devices.
- Serial Communication Interface: Designed for PLC connectivity without Ethernet networking.
- 24 VDC Power Input: Compatible with standard industrial control power systems.
- Panel-Mount Design: Allows clean installation into control cabinets or machine panels.
- Discontinued Model Support: Ideal for replacement or maintenance of existing NS-series systems.
The NS5-SQ10B-V2 delivers the reliability and precision required for operator interface and machine control applications in industrial automation systems.
