Description

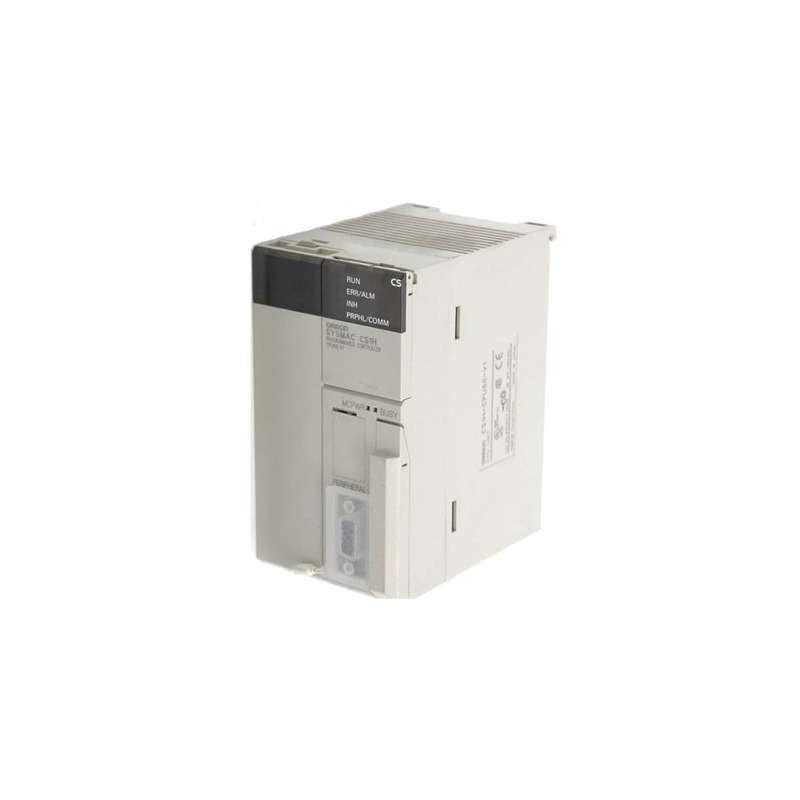

The Omron CS1H-CPU64H is a high-performance PLC CPU module offering a 30K-step program capacity and 64K-word data memory. With RS-232C and USB communication support, this unit is suitable for advanced automation systems requiring fast processing and system expandability.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
Controllers - Programmable Logic (PLC) |
| Part Number |
CS1H-CPU64H |
| Subcategory |
CPU Modules |
| Series |
CS1H |
| Program Capacity |
30K Steps |
| Data Memory Capacity |
64K Words |
| Input Voltage Range |
85–264 VAC |
| Logic Control Voltage |
24 VDC |
| Communication Ports |
RS-232C, USB |
| Mounting Type |
Backplane |
| Expansion Capability |
Up to 80 modules, 7 racks max |
| Programming Tool |
CX-One |
| Instruction Execution Speed |
High-speed (model class-specific) |
| Moisture Sensitivity Level |
MSL 1 |
| Operating Frequency |
50/60 Hz |
| Certifications |
CE, cULus, Lloyd, NK |
| RoHS Status |
RoHS Compliant |
| Weight |
0.71 lbs (approx. 322 g) |
Information About CS1H-CPU64H
The CS1H-CPU64H is a CPU module from Omron’s CS1H series, designed for scalable control systems in manufacturing and process automation. Supporting a 30K-step program and 64K-word data memory, it provides sufficient resources for mid-to-large applications. The module communicates through RS-232C and USB ports and can be expanded with up to 80 modules across 7 racks, allowing integration of various I/O and specialty modules. Certified by CE, cULus, Lloyd, and NK, the CS1H-CPU64H delivers robust performance with 24 VDC control and 85–264 VAC operation.
Key Features:
-
30K Program Steps: Supports moderately complex control sequences with ample instruction capacity.
-
64K Words of Data Memory: Enables storage of control variables, process parameters, and machine data.
-
RS-232C and USB Communications: Allows flexible connection with programming tools and peripheral devices.
-
Modular Expansion Capability: Supports up to 80 modules across 7 expansion racks for large system designs.
-
Wide Input Voltage Range: Operates from 85–264 VAC, providing installation flexibility in global environments.
-
24 VDC Control Power Supply: Ensures reliable logic power for core CPU operations.
-
CX-One Software Compatible: Fully supported by Omron's integrated programming and configuration suite.
-
Standards Compliance: Meets CE, cULus, Lloyd, and NK certifications for global industrial use.
The CS1H-CPU64H delivers the reliability and precision required for scalable industrial control applications across multiple sectors.
